Aluminum winow Corner connector cutting machine

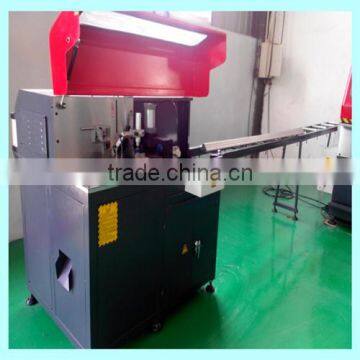

1.The pictures of the whole machine:

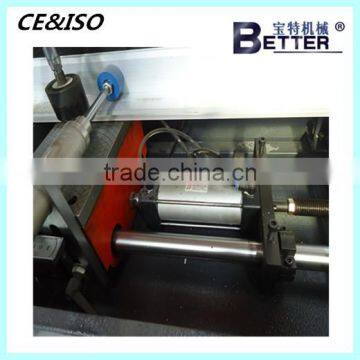

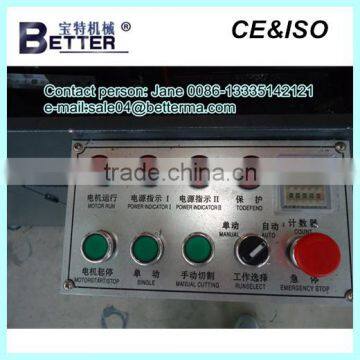

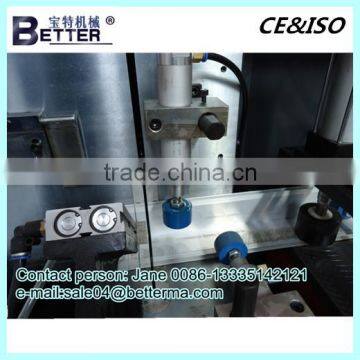

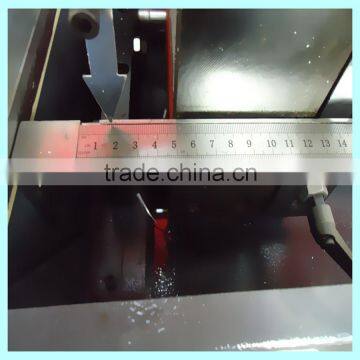

2.The details pictures of the machine:
3.The ways the connoector works:
4.Description
1).It is a full automatic machine specially used to cut the profiles of aluminum doors and windows at angles.
2). After you manually install the profiles, all the other operations are automatic,
there is digital display of cut quantity the main spindle of machine is manufactured by the specialized
manufacturer of main spindle of the machining center, the guiding and clamping device ensures no residual
sharp comers even in cutting 3mm long comers Hydraulic damping cylinder is equipped to drive the feeds for
cutting the machine body adopts integral construction with good rigidity.
5.Main Technical parameter
Model number |
LJJ-140 |
Power supply |
380V 50Hz |
Cutting motor power |
2.2kw |
Operation air pressure |
0.5 ~ 0.8Mpa |
Blade rotational speed |
2840 r/min |
Saw blade specification |
D=450mm d=30mm |
Cutting length |
Min3mm Max100mm |
Contour dimension (L×W×H) |
1200×1100×1500mm |
Cutting width × height |
140×280mm |
Machine weight(about) |
700kg |
6. our service:
The guarantee time for the machine is TWO years.
If you have any question about the machine, we will do everything we can to help you to solve it, mostly by telephone or by operation video guide ,and our engineers available to service machinery overseas if needed.
Our final purpose is make the our clients satisfied.
