Aluminum window profile automatic water solt processing machine
Automatic Water slot Milling Machine/ PVC window making machine/cutting machine
Automatic water groove milling machine for PVC window door /PVC Window Door Making Machinery (SCX01-2) Automatic Water slot Milling Machine/ PVC window making machine/cutting machine
Automatic 2 Axis Water Slot Milling Machine,Automatic Water Groove Milling Machine for PVC/Plastic profile
1. Product Description
1).The machine is used for processing various water grooves and air pressure balance grooves.
2).The upper one can be adjusted forward, backward, upward and downward.
3).The upper and horizontal directions can be processed with one time clamping. It has the features of high efficiency, reliability, high accuracy and easy operation.
4).we can make the single axis, Two axis,three axis,four axis according to your needs.
5).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
2.Technical data
Model number |
SCX01-2 |
Working air pressure |
0.4~0.6Mpa |
Air consumption |
30L/min |
Power supply |
220V 50Hz |
Input power |
0.5kw×2 |
Motor rotational speed |
25000 r/min |
Max-length of groove |
30mm |
Max-depth of groove |
40mm |
Milling cutter diameter |
Ø5mm |
Outside dimension |
2940×860×1660mm |
weight(about) |
200kg |
3.Certification

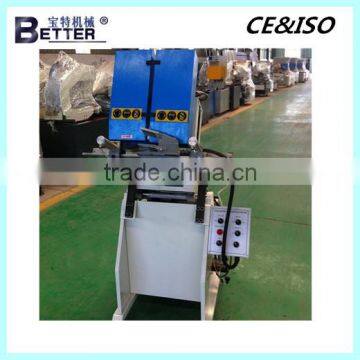

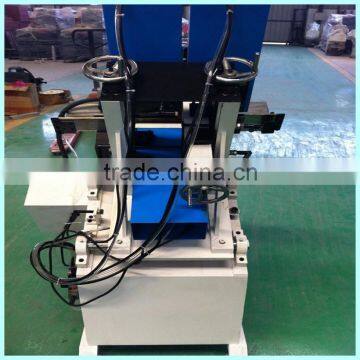

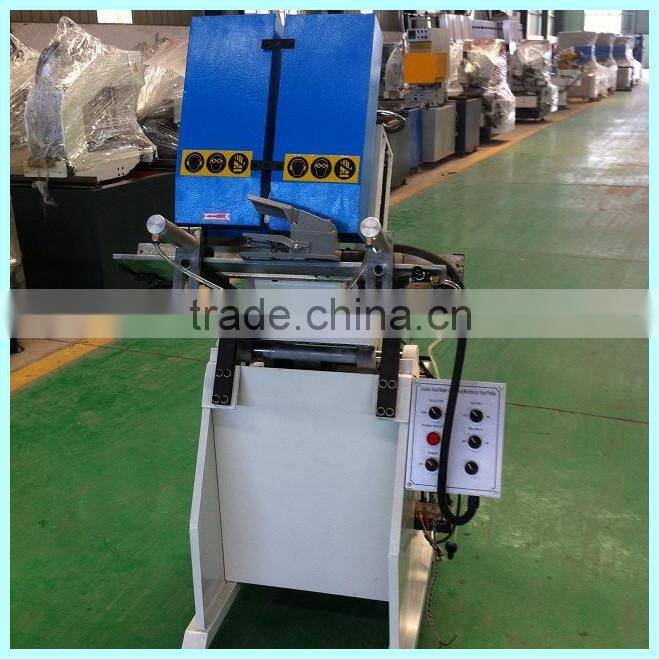

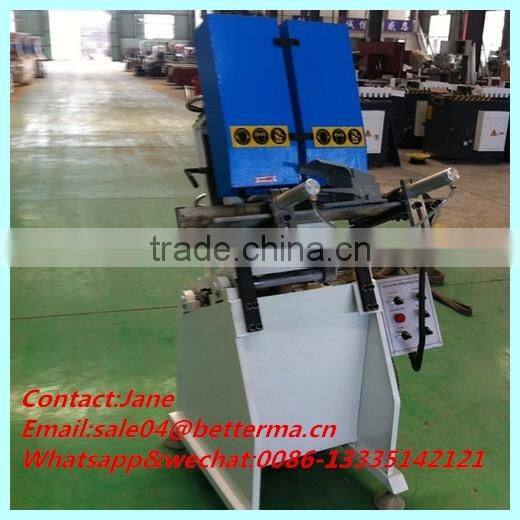

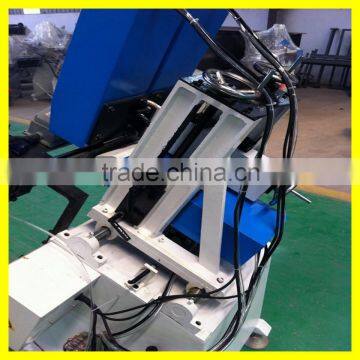

4.The picture of the machine
5.Our factory picture
6.Contact information
Contact Person: Jane hao
Jinan Better Machinery Co.,Ltd
Address: 1-1-1004 HONGKONGGUOJI NO.153 WUYINGSHAN ZHONGLU,JINAN, China
Tel: 0086-531-84895585
Mobile No: 0086- 13335142121
Whats app:0086 13335142121
Skype: deqin.hao
7.Aftersale service
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within TWELVE(12) months, the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
