Chinese Top Brand LONKING 21TON EXCAVATOR

Chinese Top Brand LONKING 21TON EXCAVATOR thumbnail-1
Chinese Top Brand LONKING 21TON EXCAVATOR thumbnail-2
Chinese Top Brand LONKING 21TON EXCAVATOR thumbnail-3
Chinese Top Brand LONKING 21TON EXCAVATOR photo-1
Chinese Top Brand LONKING 21TON EXCAVATOR photo-2
Chinese Top Brand LONKING 21TON EXCAVATOR photo-3
US$ 90,000 - 130,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
LONGKING 21 TON EXCAVATOR
Model Number:
6225 CRAWLER 21 TON EXCAVATOR
Contact Supplier Request Quote Chat Now
Full Luck Enterprises Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name LONGKING 21 TON EXCAVATOR
Model Number 6225 CRAWLER 21 TON EXCAVATOR
Condition New
Moving Type Crawler Excavator
Operating Weight 21800kg
Bucket capacity 1M3
Maximum Digging Height 9292mm
Maximum Digging Depth 6570mm
Machine Weight 21800kg
Max Digging Radius 9879mm
Rated Speed 4.3/2.3km/h
Certification EXCAVATOR
After-sales Service Provided Engineers available to service machinery overseas



Product Description
LONGKING 21TON EXCAVATOR

Specifications

CDM6225



Engine











Rated power

112kW (150hp) /1950 rpm

Max. torque

614 N.m/1500 rpm

Bore× Stroke

102mm×120mm

Displacement

5.9 L

Comment

Maintain the rated power at 2300m elevation.

Operating weight

Summary

Operating weight:21800kg The operating weight

includes the weight of 5675 mm standard boom,

2920 mm standard arm,
1.0m3 standard bucket,600 mm track shoes,

lubricating oil, coolant,the full diesel oil tank and the

 rest standard configuration units.

Ground pressure

51 kPa

Fluid capacity

Fuel tank

380 L

Cooling system

23 L

Engine oil

18 L

Swing drive unit

3.8 L

Traveling gear

2×3.3 L

Hydraulic oil tank

280 L

 Swing speed

11.6 rpm



Travel drive





Taveling speed

3.0 -5.2 km/h

Gradeability

35°(70%)

MaximumTraction

222 kN

Traveling

mechanism

Standard track

shoe width

600 mm

No. of track shoe

47 (each side)

No. of carrierrollers

2 (each side)

No. of track rollers

8 (each side)

Hydraulic system

Main pump

Duplex axial variable plunger pump

Pilot pump

gear pump (integrated in main pump)

Max. flow of system

2×208 L/min

Max. pressure of

equipment

34.3 MPa

Max. pilot pressure

3.9 MPa

Operating equipment

Each machine action is under the pilot control. The right lever controls
the motion of boom and bucket while
the left lever controls the arm motion and upper structure swing.

The foot pilot valve is provided with the lever
joystick to control the machine traveling or turning by the foot or lever.

The traveling gear shift adopts the solenoid switch control.

Electrical system

System voltage:24 V Battery:12 V,120 A×2

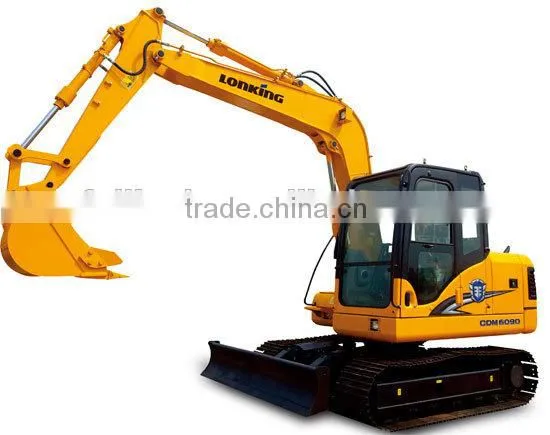

Chinese Top brand LONKING 21TON EXCAVATORChinese Top brand LONKING 21TON EXCAVATORChinese Top brand LONKING 21TON EXCAVATOR
