Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > 21.8 TON CHEAP MINI EXCAVATOR

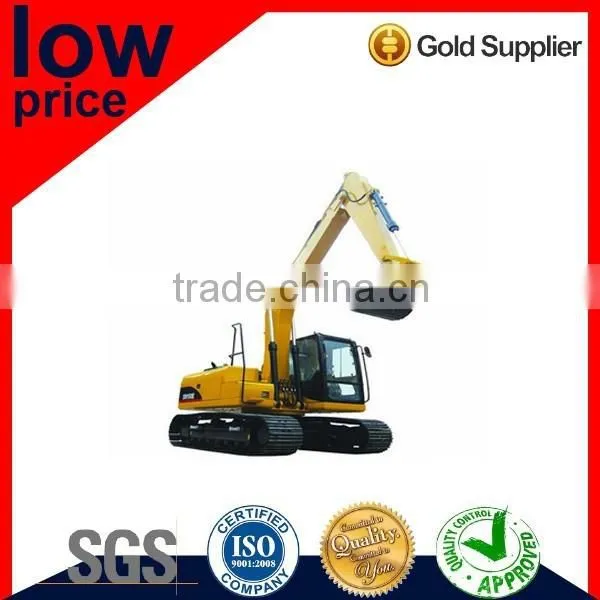

21.8 TON CHEAP MINI EXCAVATOR
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
FULL LUCK
Model Number:
FL6225
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai and any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHINA GOOD QUALITY FULL LUCK EXCAVATORUS$ 10,000 - 50,000MOQ: 1 Unit -
8 TON CHINA BRAND EXCAVATOR FOR SALEUS$ 10,000 - 50,000MOQ: 1 Unit
-
CHINA COST EFFECTIVE MINI EXCAVATOR ON SALEUS$ 10,000 - 50,000MOQ: 1 Unit
-
CHINA LONKING 5TON MINI EXCAVATOR ON SALEUS$ 10,000 - 50,000MOQ: 1 Unit
-
Low Price China Mini Crawler ExcavatorUS$ 35,000 - 50,000MOQ: 1 Unit
Place of Origin
Shanghai, China
Brand Name
FULL LUCK
Model Number
FL6225
Condition
New
Moving Type
Crawler Excavator
Operating Weight
21800kg
Bucket capacity
1.1m3
Maximum Digging Height
9292
Maximum Digging Depth
6570
Machine Weight
21800kg
Max Digging Radius
9879
Rated Speed
3.0-5.2km/h
Certification
SGS
After-sales Service Provided
Overseas third-party support available
Specifications
CHEAP MINI EXCAVATORa, Engine : Cummins
b, Max. bucket breakout force-ISO(kN):158
For each of our new equipment, we provide pre-delivery inspection to make sure it is fully operational.
1) 54 items will be inspected. Including appearance, major assemblies and cabin.
2)Road-Testing. Including the working status of engine, transmission, air conditioner, lighting system, brake system, accelerating system etc.
3)Logistics Severies
4)Spar part Supply
5)Technology Supply
6)Repairs and Maintenance
Company Information
FULLWON is a comprehensive trading firm integrating truck sale, logistics transportation, import and export trade, parts sale and large scale maintenance center.The large scale service center occupies an area of 15,000 square meters.
Main Parters: Renault, VOLVO, UD, SINOTRUK, ISUZU
Product Description
| Specifications | CDM6225 | ||
| Engine | Model | Cummins6BTAA5.9-C | |
| Rated power | 112kW (150hp) /1950 rpm | ||
| Max. torque | 614 N.m/1500 rpm | ||
| Bore× Stroke | 102mm×120mm | ||
| Displacement | 5.9 L | ||
| Comment | Maintain the rated power at 2300m elevation. | ||
| Operating weight | Summary | Operating weight:21800kg The operating weight includes the weight of 5675 mm standard boom,2920 mm standard arm, 1.0m3 standard bucket,600 mm track shoes,lubricating oil, coolant,the full diesel oil tank and the rest standard configuration units. |
|
| Ground pressure | 51 kPa | ||
| Fluid capacity | Fuel tank | 380 L | |
| Cooling system | 23 L | ||
| Engine oil | 18 L | ||
| Swing drive unit | 3.8 L | ||
| Traveling gear | 2×3.3 L | ||
| Hydraulic oil tank | 280 L | ||
| Swing mechanism | High torque plunger motor and 2-stage planetary reducer drive. Brake inside loading motor is applied by spring and released by hydraulic unit. The automatic braking is available when the swing control lever is in neutral position. |
||
| Swing speed :11.6 rpm | |||
| Travel drive | Summary | The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged inside the track frame to prevent the damage caused by the rugged road surface, The motor inside is provided with the service brake and shock absorption valve to ensure the smooth running and stop and the reliable braking. |
|
| Taveling speed | 3.0 -5.2 km/h | ||
| Gradeability | 35°(70%) | ||
| MaximumTraction | 222 kN | ||
| Traveling mechanism | Standard track shoe width | 600 mm | |
| No. of track shoe | 47 (each side) | ||
| No. of carrierrollers | 2 (each side) | ||
| No. of track rollers | 8 (each side) | ||
| Hydraulic system | Main pump | Duplex axial variable plunger pump | |
| Pilot pump | gear pump (integrated in main pump) | ||
| Max. flow of system | 2×208 L/min | ||
| Max. pressure of equipment | 34.3 MPa | ||
| Max. pilot pressure | 3.9 MPa | ||
| Operating equipment | Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while the left lever controls the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control. |
||
| Electrical system | System voltage:24 V Battery:12 V,120 A×2 | ||
Our Services
- After-sales Service
- In-house training and Workshop
- Technical Support
- International Logistics Service
- Special Promotions
- Purchasing Solutions
- Maintenance Program
- Consultation Program
Packaging & Shipping
CHEAP MINI EXCAVATOR will be transported by Ro-Ro , Bulk ,Container,Contrainer frame.
