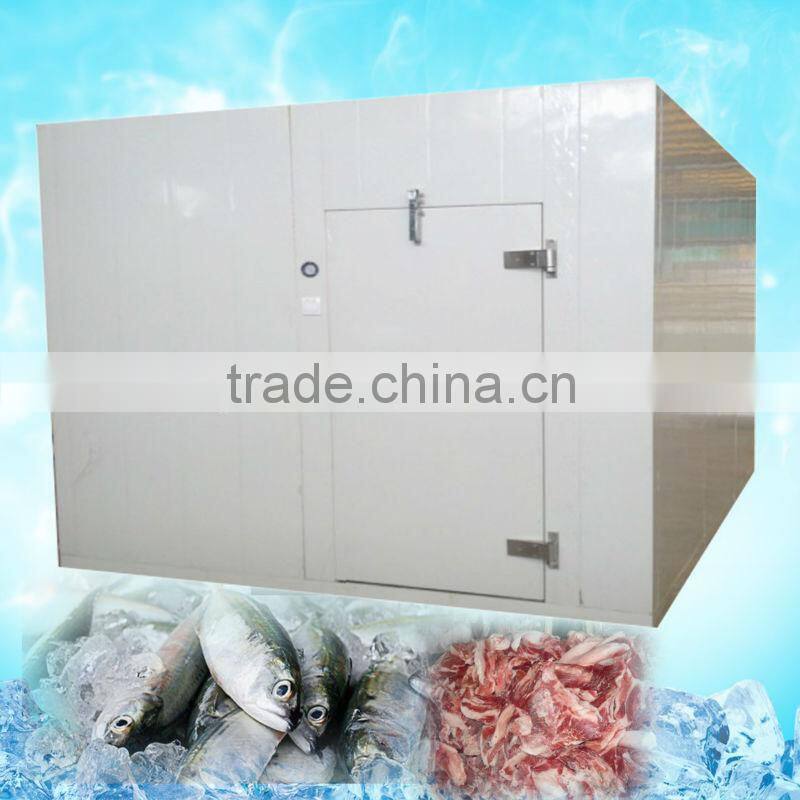

cold storage for meat and fish storage
we are the Professional manufacturer specializes in designing and manufacturing cold storage .
our factory found in 1992 . we have twenty years experience to design and manufacture the
cold storage .
In order to design the best cold storage for you , plase answer us the following questions:
1.Which country the cold storage located?
2. cold storage being installing inside the building or putting outside the house?
3.What is the ambient temperature(°C)
4.External dimension of the cold storage ?(m)
5.What Kind of products is gonna store in the cold storage ?
6.Required temperature inside the cold storage (°C)?
7.Original temperature of products before put into the cold storage (°C)
8.what kind of door your require? Hinged door,manual/electric sliding door or glass door?
9.Both sides of panels are with steel sheet covered. The steel sheet optional: painted galvanized steel,embossed stucco aluminum, stainless steel.Which do you like ?
cold storage Temperature Range for more products
| Storage products | Storage temperature approach |
| Vegetables, Fruit storage | -5~5 degree centigrade |
| Drink, Beer storage | 2~8 degree centigrade |
| Meat, Fish freeze storage | -18~--25 degree centigrade |
| Medicine storage | 2~8 degree centigrade |
| Medicine freeze storage | -20 degree centigrade |
| Meat, Fish blast freezer | -35~-40 degree centigrade |
some of our cold storage specification for your reference
| Specification/Model | AGWF-30 | AGWF-68 | AGWF-20 |
| Storage volume | 30 | 68 | 20 |
| Exterior dimensions | 3549W X 4732L X 2300H | 5915W X5915L X 2300H | 2366W X 4732L X 2300H |
| Interior dimensions | 3349X 4532X 2100H | 5715W X 5715L X 2100H | 2166W X 4532L X 2100H |
| Power | 380V/50HZ 5HP | 380V/50HZ 10HP | 380V/50HZ 3HP |
| Color and malerial | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel |
| Storage temperature | >-20 | >-20 | >-20 |
cold storage Product information
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
100mm |
Steel cover |
painted galvanized steel |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door |
Temp.of room |
2~+8 degree, or optional |
Purpose of cold room |
to store fruit,vegetable |
Refrigeration unit |
Copeland compressor |
Refrigeration type |
air cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ ,110V/60HZ optional |
cold storage panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

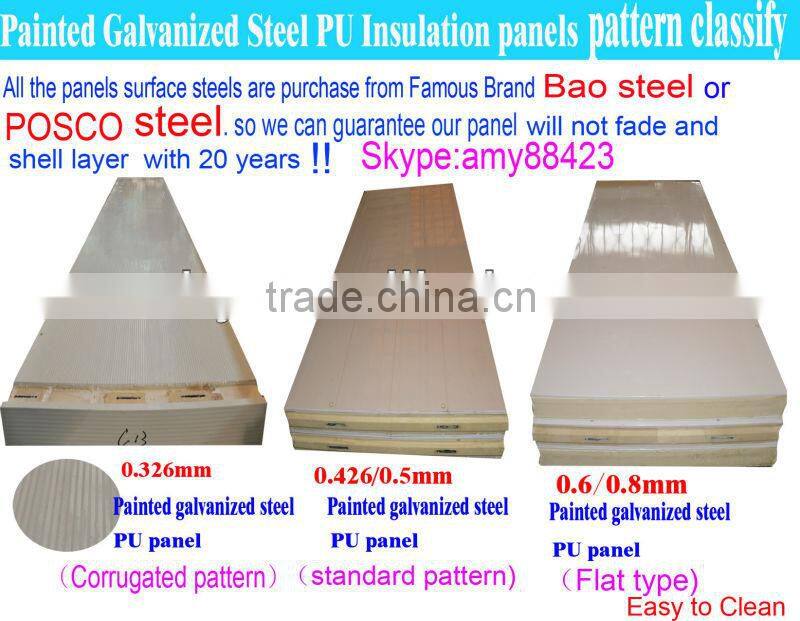

we can do three different pattern for the cold storage panels,the flat panels is easy to clean
our cold storage panel advantage :

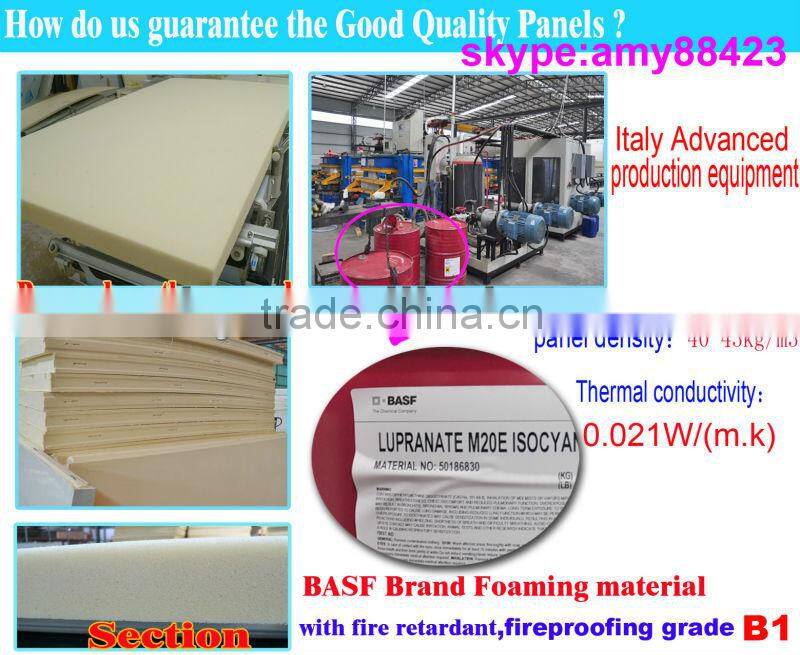

1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each cold storage panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

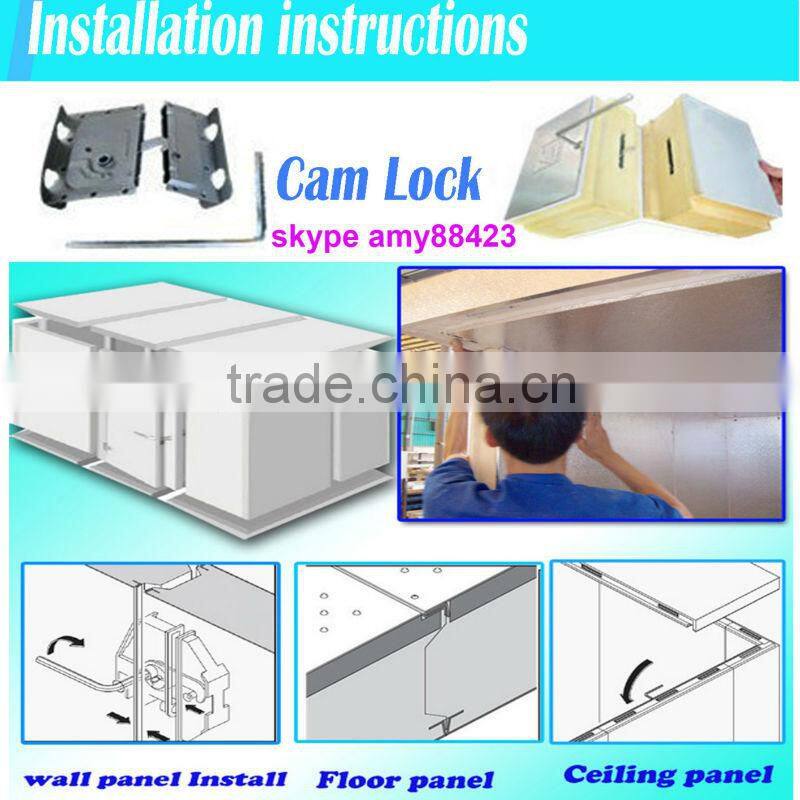

cold storage Installation :

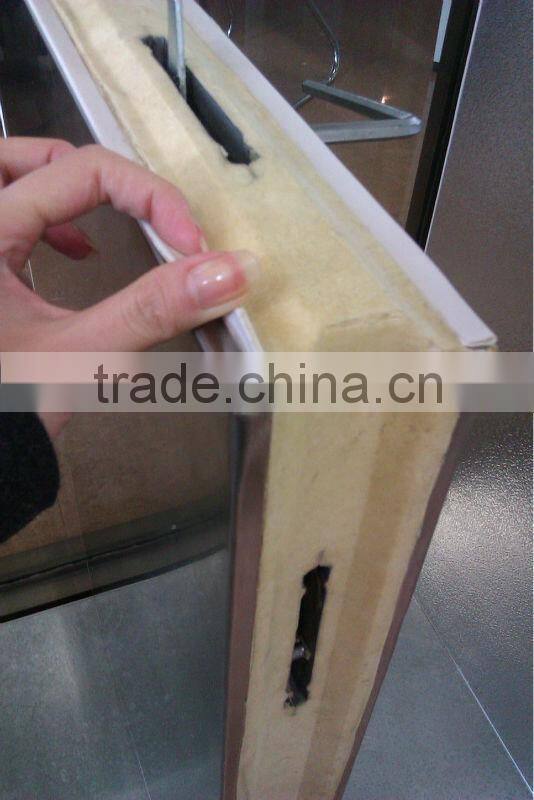

Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

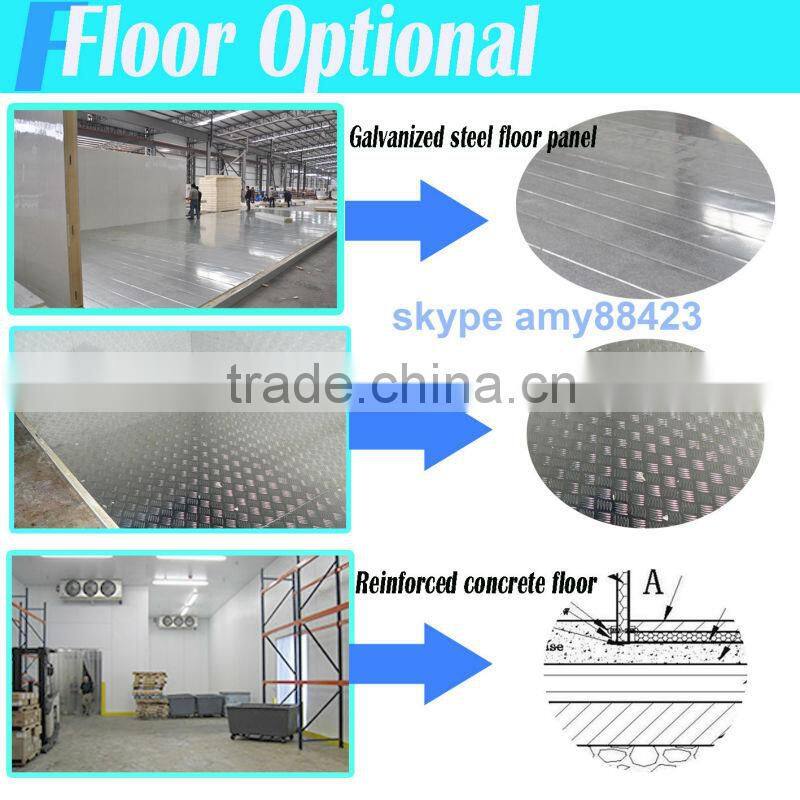

cold storage floor:
can do the Galvanized steel PU Panel floor , skidproof floor or reinforced concrete floor

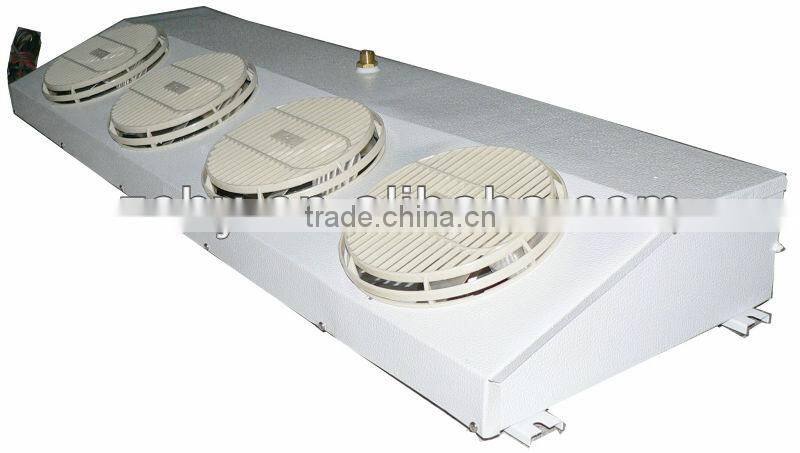

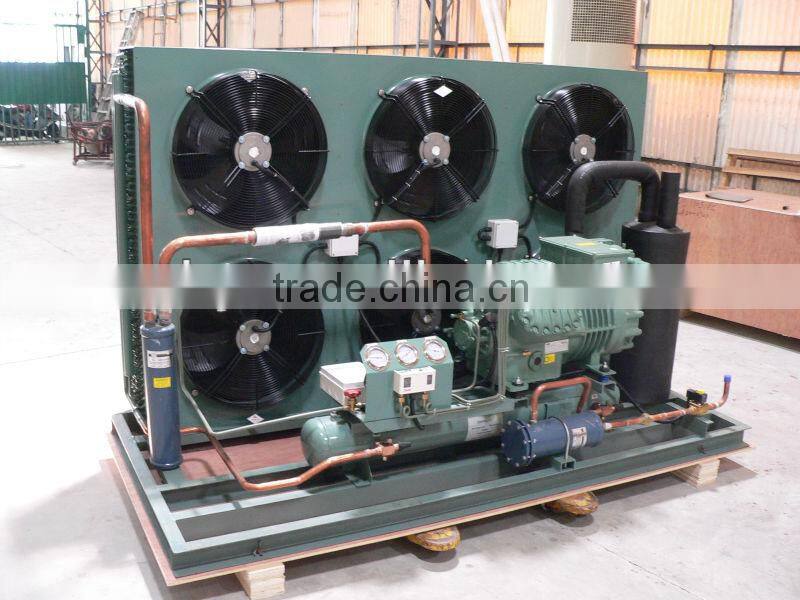

cold storage condensing units: BIZER split condensing unit

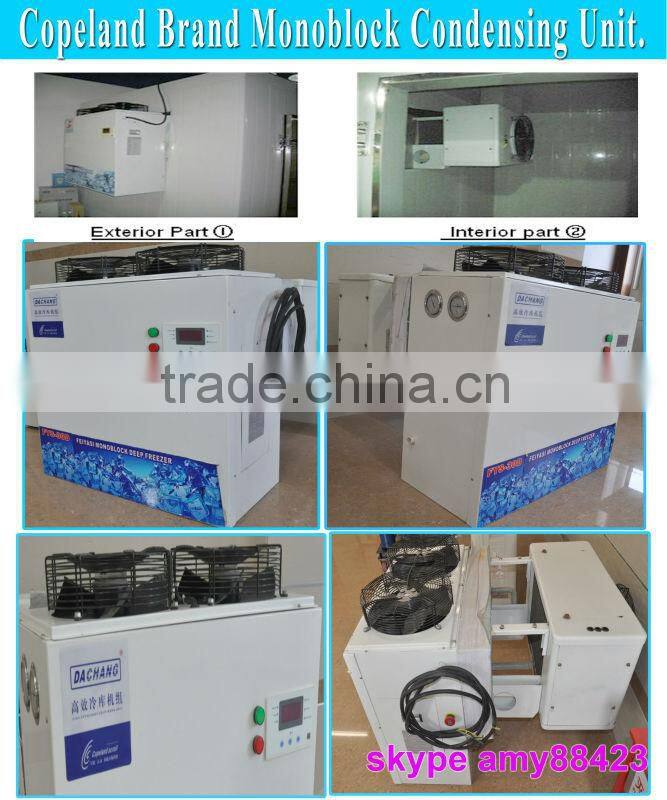

For small size of Cold room , we will recommend the Monoblock compressor which is more easy to be used. Monoblock unit is with outdoor condensing unit, indoor evaporator cooling unit and controller all together in one set, plug and play, not any extra connection,easy to operate!

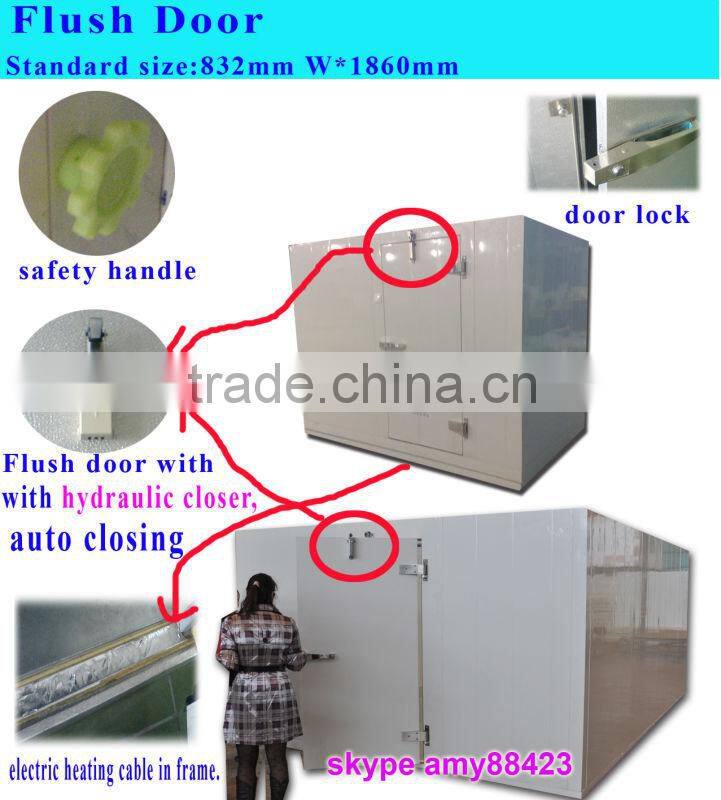

Flush door cold storage for (auto close)

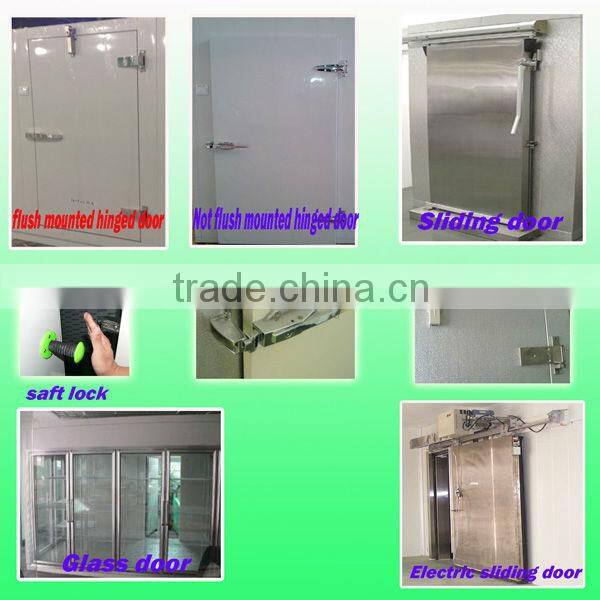

more serise door for your choice ( size can be changed according to the client's requirement )
| No | Door type | door size | door heater voltage |
| 1 | Flush mounted hinged door | 800mm W*1900mm H | 24V / 36V |
| 2 | not flush mounted hinged door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 832mm W*1860mm H | 24V / 36V |
Electrical Cabinet for cold storage
Our Electrical Cabinet accessories are adopted the imported famouse brand accessories ,such as the French Schneider brand contactor, Italy EVCO brand temperature controller .
So our Electrical Cabinet is very high quality and durable .
So you know why our cooling room production cost is higher then other suppliers.
cold storage package
production line for our cold storage
advanced machine inported from Italy , which ensure every panel quality and fast Delivery
