Modular Cold Room and Freezer Room(fruit&meat)with Cam Lock Polyurethane Panels

Modular Cold Room and Freezer Room(fruit&meat)with Cam Lock Polyurethane Panels thumbnail-1
Modular Cold Room and Freezer Room(fruit&meat)with Cam Lock Polyurethane Panels thumbnail-2
Modular Cold Room and Freezer Room(fruit&meat)with Cam Lock Polyurethane Panels thumbnail-3
Modular Cold Room and Freezer Room(fruit&meat)with Cam Lock Polyurethane Panels thumbnail-4
Modular Cold Room and Freezer Room(fruit&meat)with Cam Lock Polyurethane Panels photo-1
Modular Cold Room and Freezer Room(fruit&meat)with Cam Lock Polyurethane Panels photo-2
Modular Cold Room and Freezer Room(fruit&meat)with Cam Lock Polyurethane Panels photo-3
Modular Cold Room and Freezer Room(fruit&meat)with Cam Lock Polyurethane Panels photo-4
US$ 28 - 39 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Condition:
New
Temperature:
-5/-18degree C
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Foshan Argentdragon International Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Temperature -5/-18degree C
Place of Origin Guangdong, China
Brand Name AG
Model Number Walk in chiller and walk in freezer
Voltage 220V/380V
Power(W) Above 2kw
Dimension(L*W*H) 2366mm*3549mm*2300mm
Weight Above 1000kg
Certification ISO9001:2008
Warranty 1 year
After-sales Service Provided Overseas third-party support available

modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels

Product Description

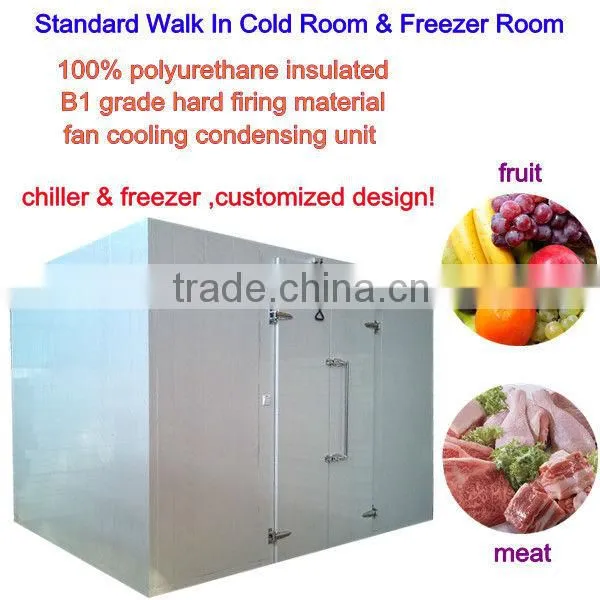

Design of the walk in cold room

the chiller room with temperature -5degree C or above, freezer room -18degree C or above.

the ambient temperature at +35degee C

ld room panels with 100% polyurethane insulation ,panel thick 100mm,painted galvanized steel on both sides PU insulation panel,color: grey white.

4.interring cam lock system for easy installation by using hexagonal key base on the drawing.

5.required Copeland air cooled condensing unit,high efficiency

6.air cooled, run on gas R404a,environmently friendly



Standard cold room and Standard freezer room



Cold room DCWR-15 Freezer room DCWF-15 Cold room DCWR-20 Freezer room DCWF-20
2366mmL*3549mmW*2300mmH 2366mmL*3549mmW*2300mmH 2366mmL*4732mmW*2300mmH 2366mmL*4732mmW*2300mmH
15m3 15m3 20m3 20m3
-5degree C or above -18degree C or above -5degree C or above -18degree C or above
Copeland compressor 2HP, R404a Copeland compressor 2HP, R404a Copeland compressor 2HP, R404a Copeland compressor 3HP, R404a


modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels

We supply new cold storage room, and can design base on client's requirement!



Customized cold storage room  specification

Dimension

Length (m) *Width (m)*Height (m)

Panel

polyurethane insulation panel,43kg/m3, fire retardant

Foaming material

BASF

Panel thickness

50mm,75mm,100mm,150mm,200mm

Steel cover

stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell

Panel connection

cam lock type, use hexagonal key to assemble and disassemble

Type of door

hinge door, convex door, sliding door

Temp.of room

 optional

Purpose of cold room

fruit,vegetable,flower,fresh/frozen meat etc

Refrigeration unit

Copeland / Bitzer / Sanyo etc

Refrigeration type

air cooled / water cooled

Fittings

all necessary fittings are included, optional

Place to assemble

indoor/out door(concrete construction building/steel construction building)

Voltage

220V/50HZ, 220V/60HZ, 380V/50HZ optional



modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels





The cold storage is made up of pieces of polyurethane insulation panels, density 43kg/m3,use imported BASF material to foam the pu panels by high pressure.All the panels are with fire retardant,and the polyurethane cold room panels are appropriate for GB8624-1997<Classification of the firing capability of construction-material> and reach the requirements of level B1 hard firing materials.

modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels

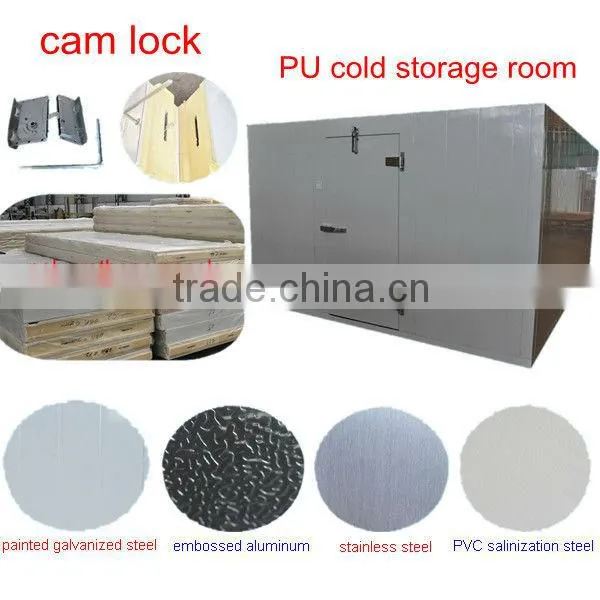

*cold room panel -steel finish optional:painted galvanized steel, embossed aluminum, stainless steel, pvc salinization steel

*As the panel thick and steel finish and cold room size and cold room temperature are different, the cold room prices are different.

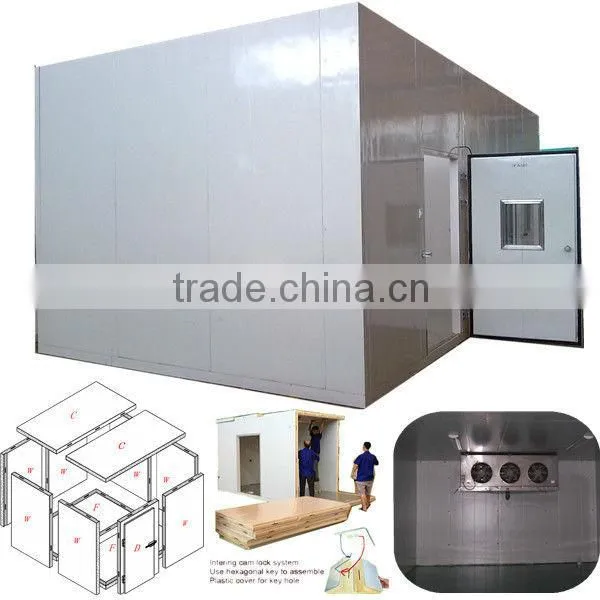

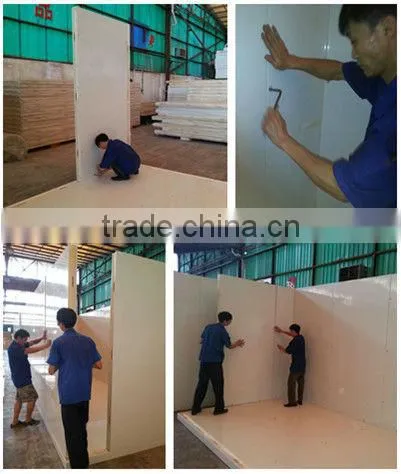

We use the polyurethane sandwich panels to contruct all kinds of refrigerator cold room base on the clients' requirement to meet their actual need. The polyurethane panels are with cam lock system, use the hexagonal key to assemble and disassemble, easy to set up, and convenient for the shipping,saving shipping space.

modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels

 modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels

Cold room doors are polyurethane insulation, different styles of insulated doors for your option, the doors are with heaters.modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels

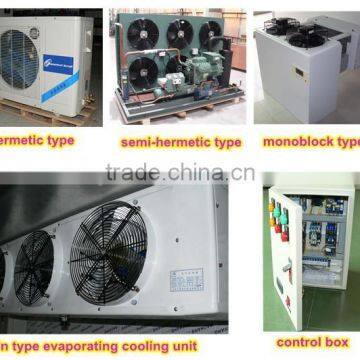

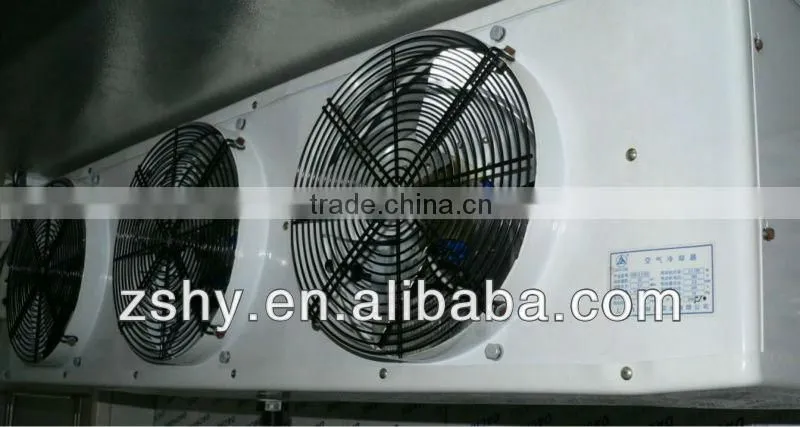

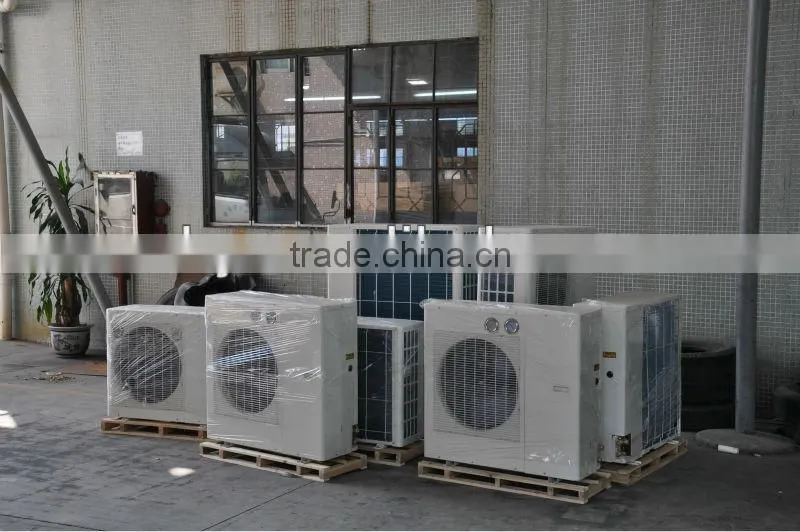

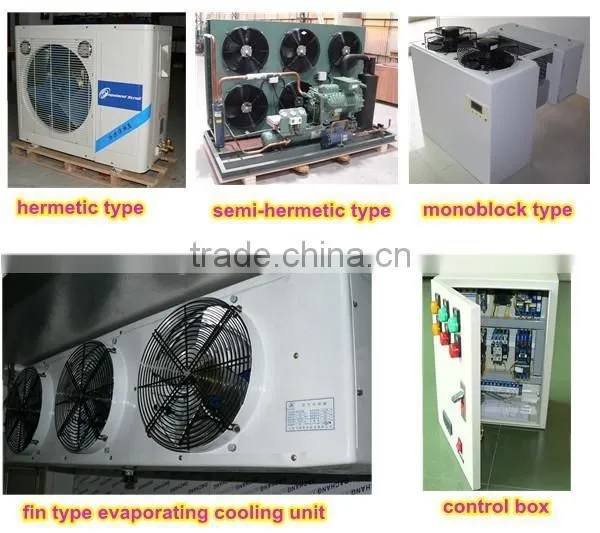

walk in chiller refrigeration system

We will choose the suitable condenser and evaporators for the cold storage room  base on the cold room size and inside temperature range and ambient temperature.We can also use the brand of condenisng unit and evaporator to the client's request.modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels



modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels

(Workshop-imported injection machine--BASF material to foam polyurethane panels for cold storage )

modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels

(Workshop-imported pressure plate---foaming the polyurethane panels for cold room )

modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels

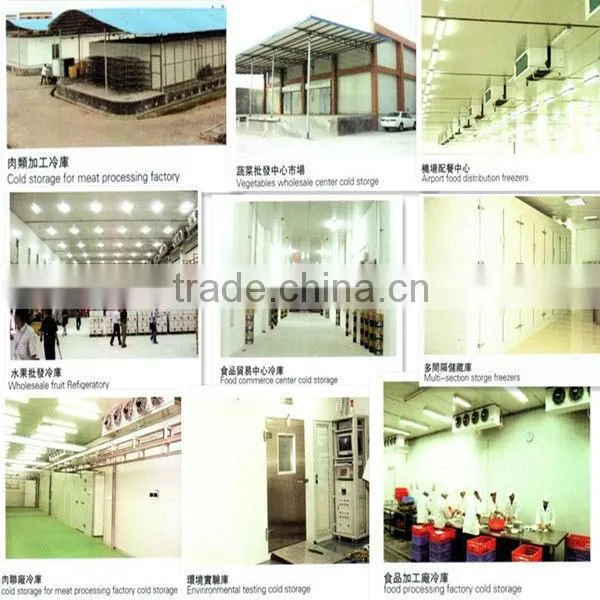

Projects of cold storage room projects

modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels




Packaging & Shipping

Packing of the knock-down cold room

modular cold room and freezer room(fruit&meat)with cam lock polyurethane panels




Company Information

Exhibition in Nuremberg, Germany in October 2012

CHILLVENTA 2012

modular cold room and freezer room(fruit&meat)with cam lock polyurethane panelsmodular cold room and freezer room(fruit&meat)with cam lock polyurethane panels





FAQ

1.Manufacturer: We are manufacturer and can handle export shipments by ourselves.

2. OEM products: welcome, we can customize related products for clients.

3.Product warranty: 1 year.

4.After sale service: we are always here to asist our clients to solve problems.

5.Trade term: Ex-work, FOB, CFR, CIF

6.Payment term: payment by T/T, production begins base on receipt of down payment, full payment should be completed before shipping.
