Weidmuller Relay Type:RCL424024 Order No:4058570000
US$ 3.5 - 3.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
weidmuller
Model Number:
RCL424024
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UM Profile Panel Mounting Base PCB Holder, PCB Din Rail ,PCB Control Board HolderUS$ 10 - 11MOQ: 1 Meter -
UM100 Profile Panel Mounting Base PCB Holder, PCB Din Rail ,PCB Control Board HolderUS$ 10 - 11MOQ: 1 Meter
-
Relay Module PLC Control BoardUS$ 10 - 11MOQ: 1 Meter
-
UM Module Relay Module PLC ModuleUS$ 10 - 11MOQ: 1 Meter
-
Interface Module Connector ModuleUS$ 10 - 11MOQ: 1 Meter
Place of Origin
Guangdong, China
Brand Name
weidmuller
Model Number
RCL424024
Theory
Electromagnetic Relay
Usage
Auto
Size
Miniature
Protect Feature
Sealed
Contact Load
Low Power
Product Description

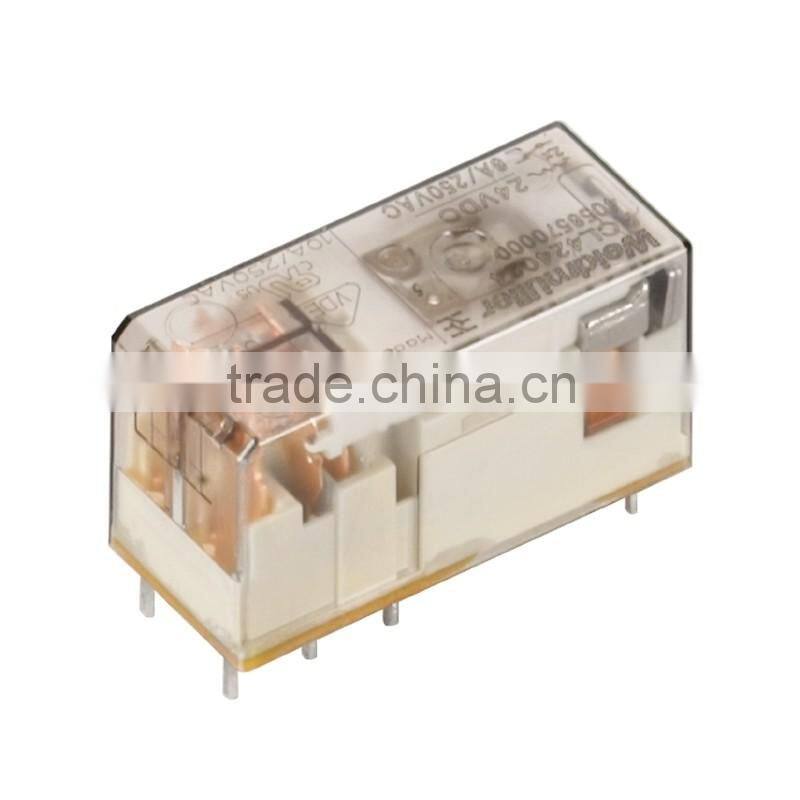

Weidmuller relay Type:RCL424024 Order No:4058570000
General ordering data
| Type | RCL424024 |
| Order No. | 4058570000 |
| Version | RIDERSERIES, Relais, No. of contacts: 2, CO contact, AgNi 90/10, Rated control voltage: 24 V DC, Continuous current: 8 A, Plug-in connection |
| GTIN (EAN) | 4032248189298 |
| Qty. | 20 pc(s). |
Dimensions and weights
| Width | 12.7 mm |
| Height | 29 mm |
| Depth | 15.7 mm |
| Weight | 13 g |
| Net weight | 14.4 g |
Input
| Coil resistance | 1440 Ω ± 10 % |
| Rated control voltage | 24 V DC |
| Rated current DC | 16.7 mA |
| Power rating | 400 mW |
| Pull-inrop-out voltage, typ. | 16.8 V / 2.4 V DC |
Output
| Rated switching voltage | 250 V AC |
| Continuous current | 8 A |
| Inrush current | 15 A / 4 s |
| AC switching capacity (resistive), max. | 2000 VA @ 250 V |

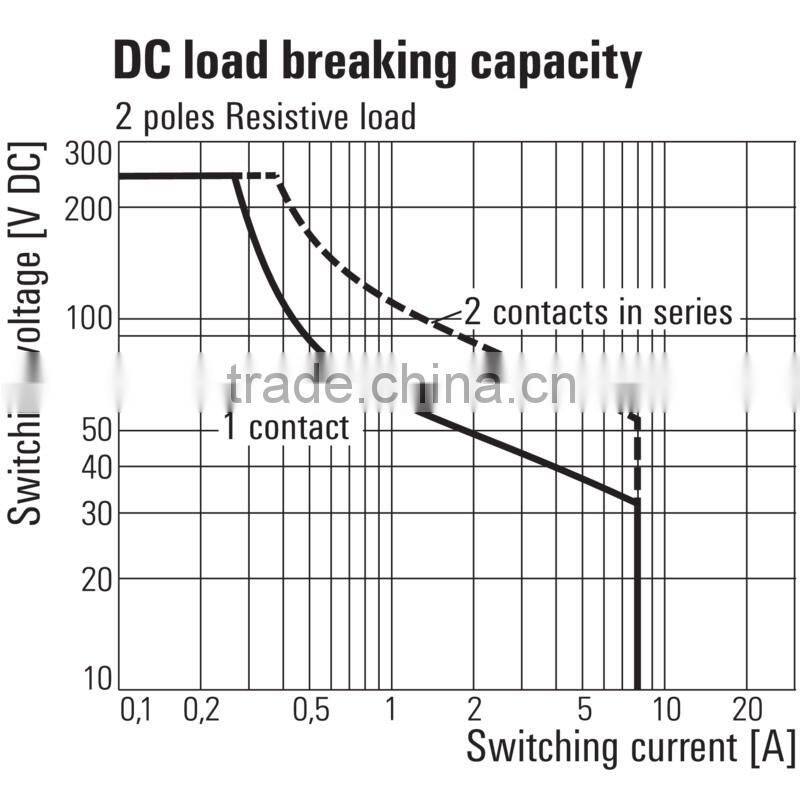

| DC switching capacity (resistive), max. | 192 W @ 24 V |
| Switch-on delay | ≤ 8 ms |
| Switch-off delay | ≤ 6 ms |
| Min. switching power | 100 mA / 5 V, 10 V / 10 mA, 24 V / 1 mA |
| Max. switching frequency at rated load | 0.1 Hz |

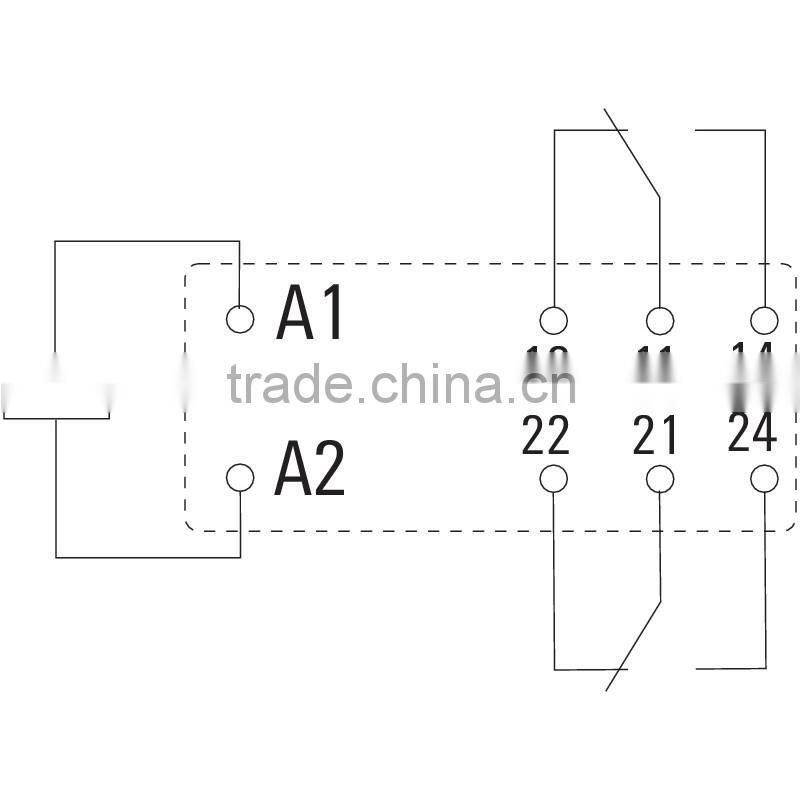

Contact data
| No. of contacts | 2 |
| Contact design | CO contact |
| Contact material | AgNi 90/10 |
| Mechanical service life | AC coil 5 x 106 Switching cycles, DC coil 30 x 106 Switching cycles |
General data
| Wire connection method | Plug-in connection |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| Weight | 13 g |
| UL 94 flammability rating | V-0 |
Detailed Images
Our Services
Our company mainly engaged in domestic and foreign well-know brands of low-voltage electrical appliances and industiral control products,such as Phoenix Contact, Weidmuller, Wago, ABB,Schneider,Omron,Panasonic, Idec,and so on

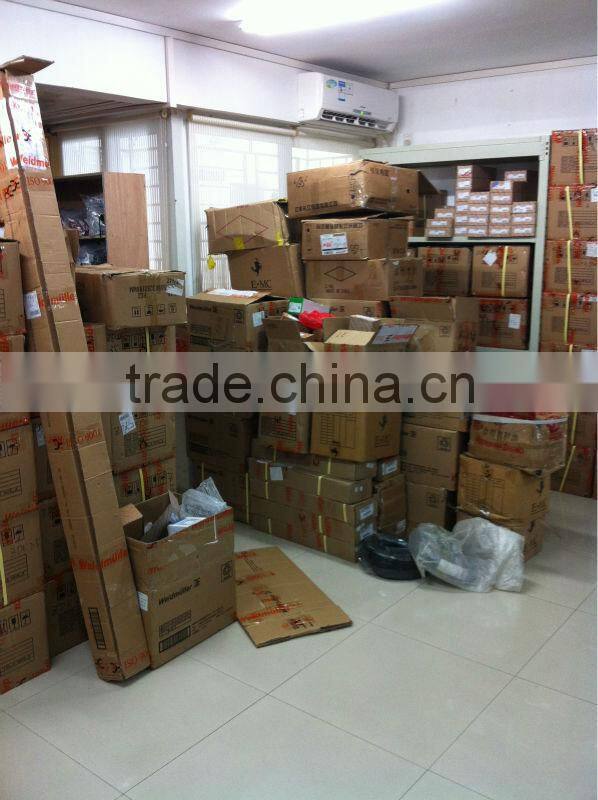

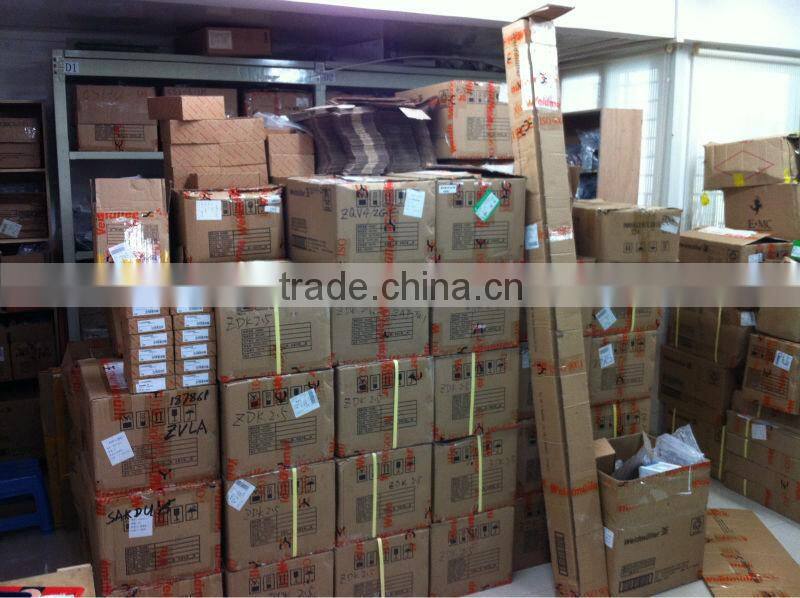

Our warehouse:
