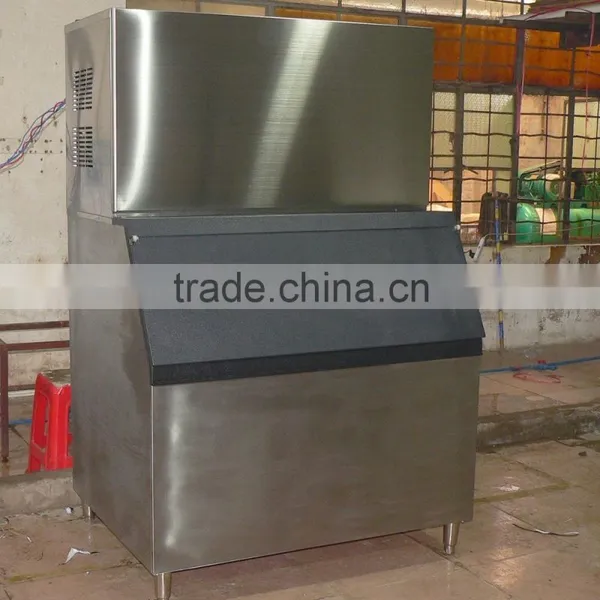

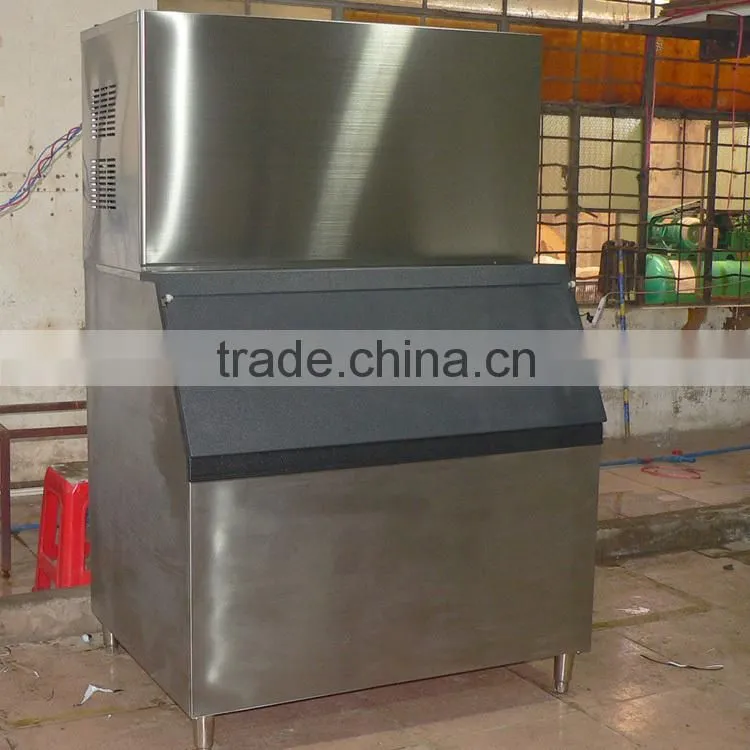

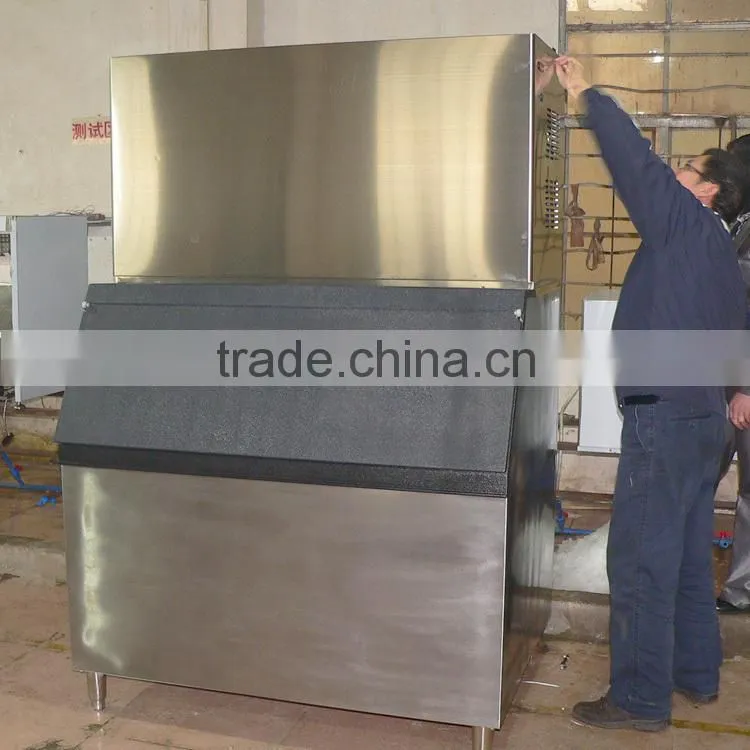

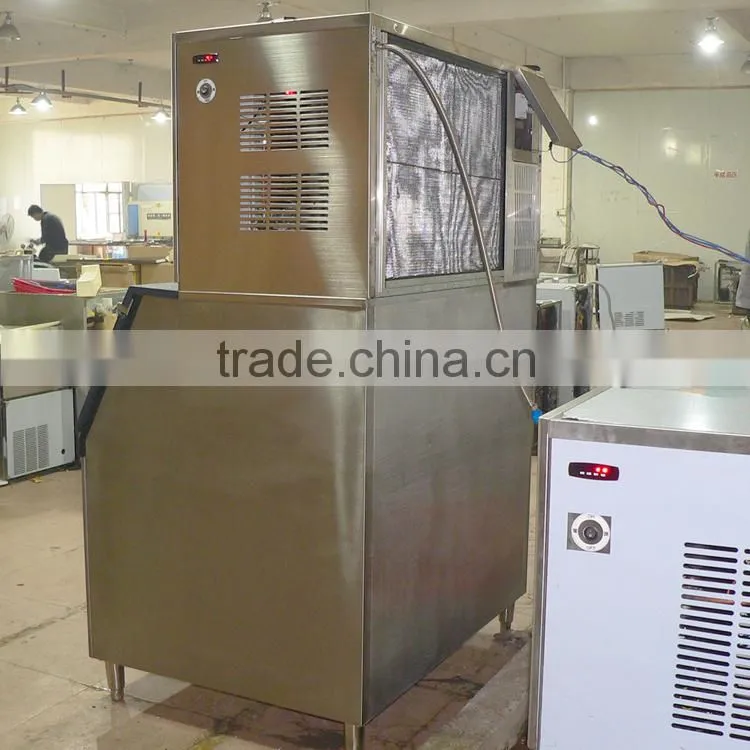

ice maker machine produces ice cube 25 by 25 mm
- ice maker machine specifications:
* ice maker machine Unit size :1220*620*770mm
* ice maker machine ice production capacity :627kg/24h
* ice maker machine ice storage bin capacity : 360kg
* ice maker machine voltage:220V OR 110V
* ice maker machine power :2260W
* ice maker machine refrigerant : R404a

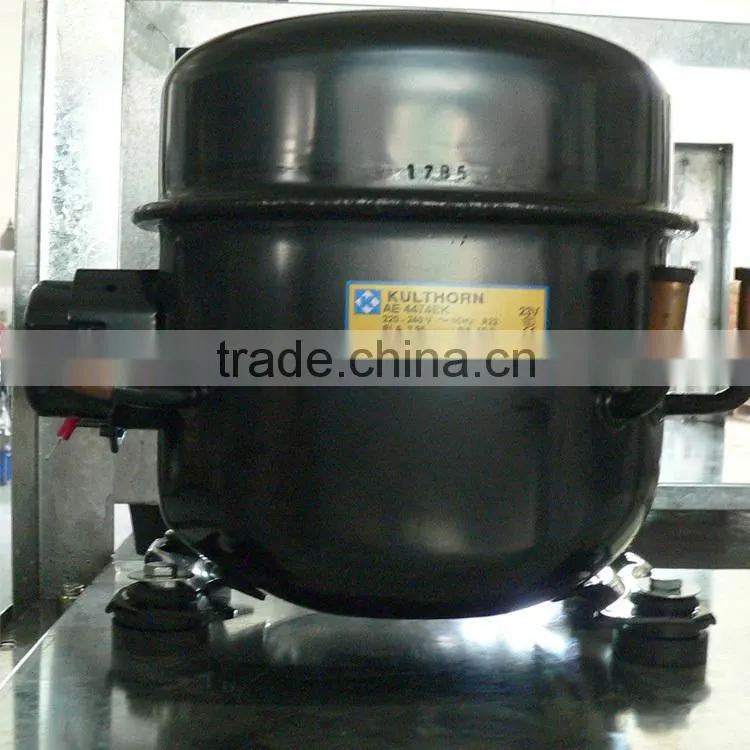

* ice maker machine compressor : Aspera,Copeland,Tecumseh,KK

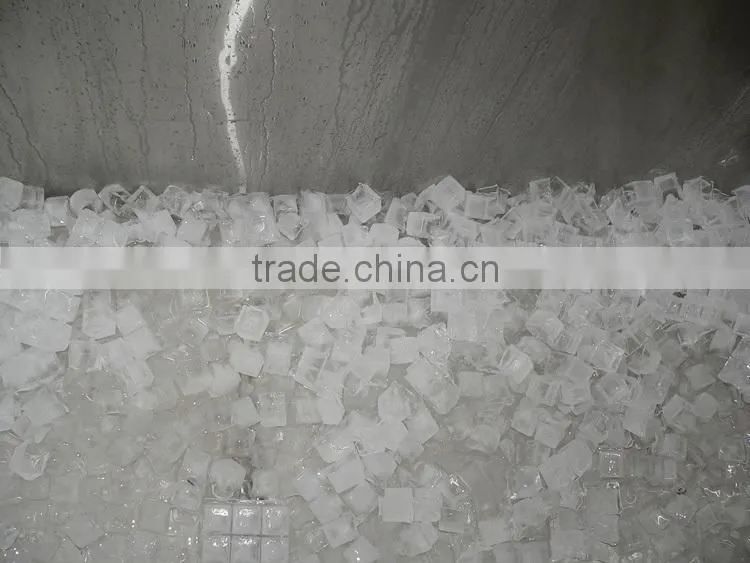

* ice cube size : 22*22*22 /25*25*25/ 29*29*25mm or customize
- ice maker machine advantages / details
1. ice maker machine Feature :
Casing : Stainless steel 304 sheel material , contributes to luxurious and tasty apperance
Parts: World famous brand lead to hight quality and long service lift
Control : Microcomputer detection system , reliable without hand operation .
Saving : Advanced copper-nickel evaperator , fast in ice making , time and energy saving
Safe : Food grade plastic fully statisfied the international food access standard

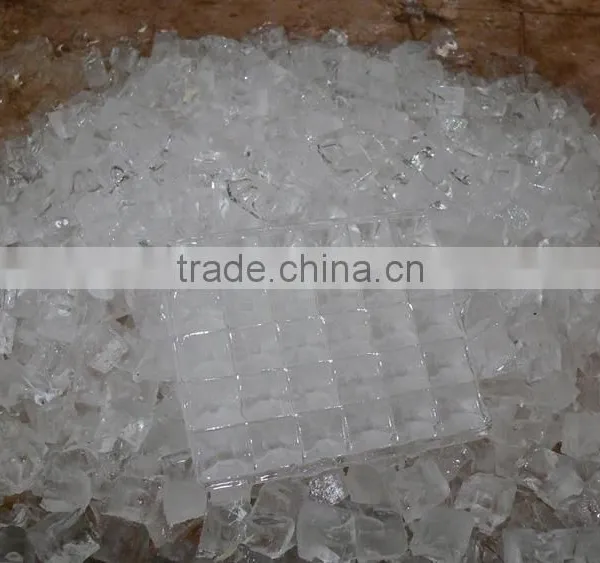

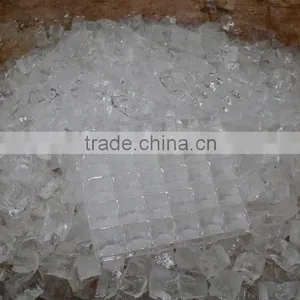

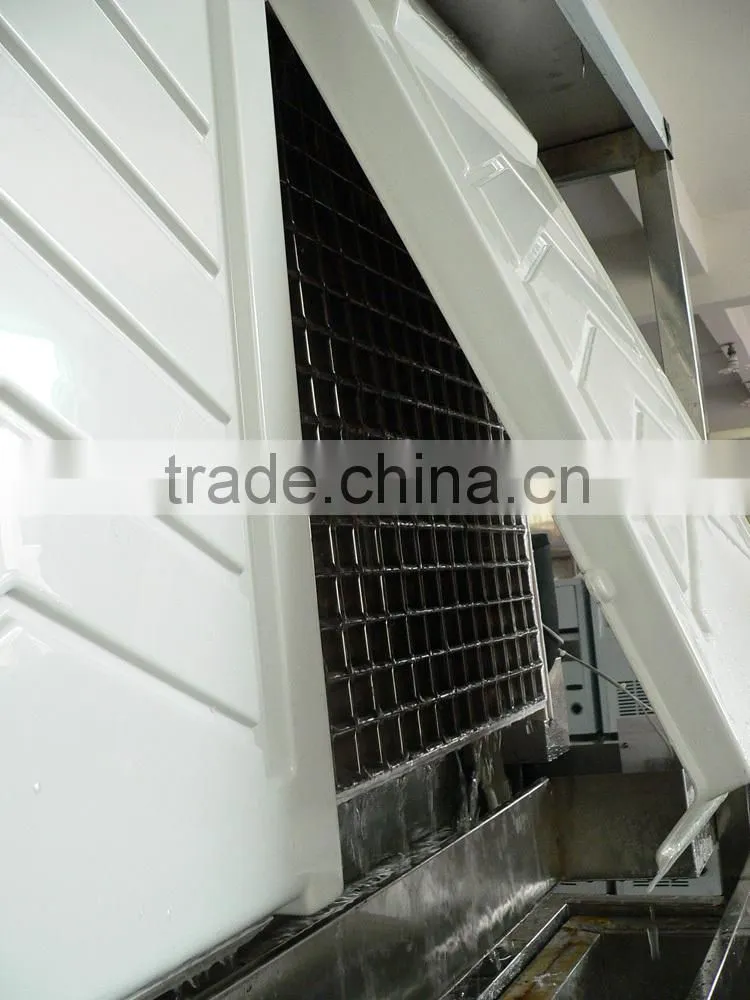

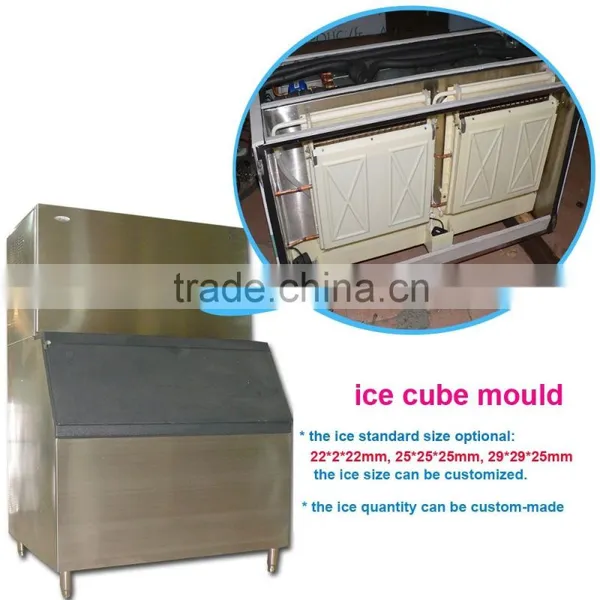

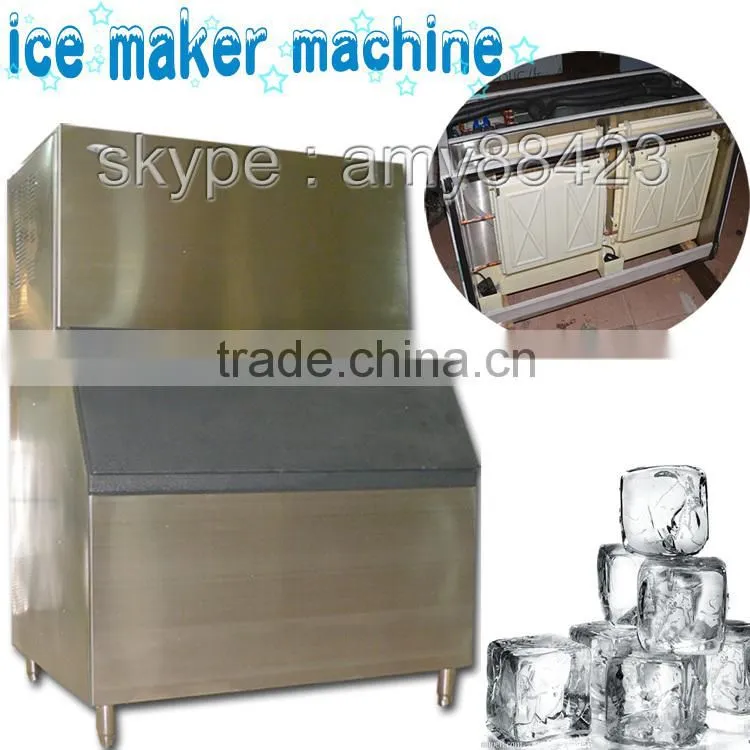

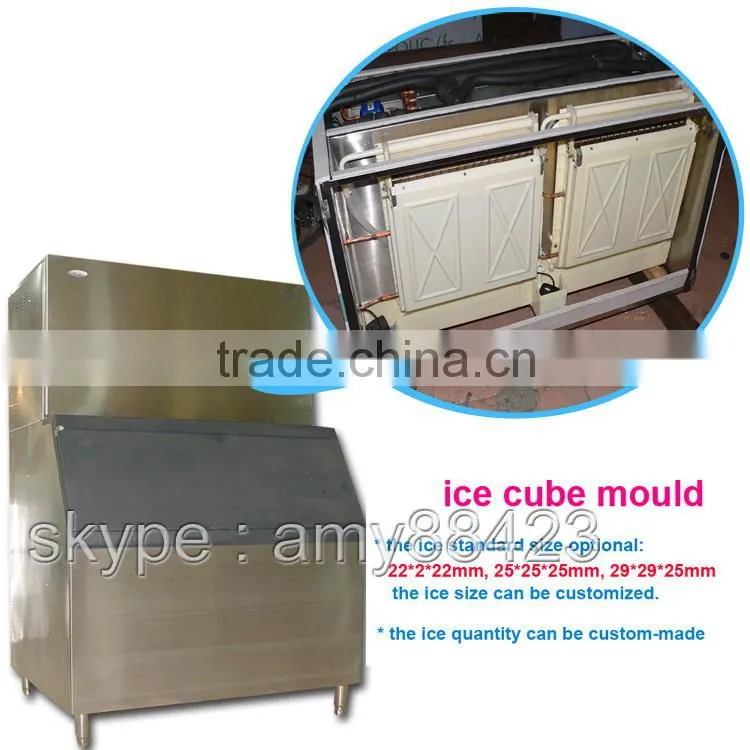

2. ice maker machine ice size & ice mould :
it is the ice maker machine, the ice cube size optional is 22*22*22mm,25*25*25mm,29*29*25mm or customize

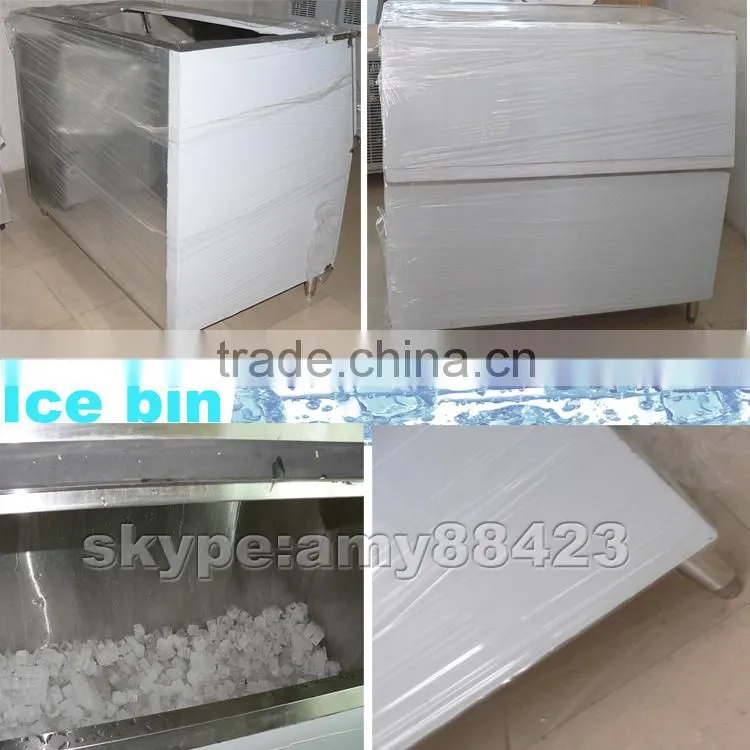

3. 360KG ice bin for this model ice maker machine

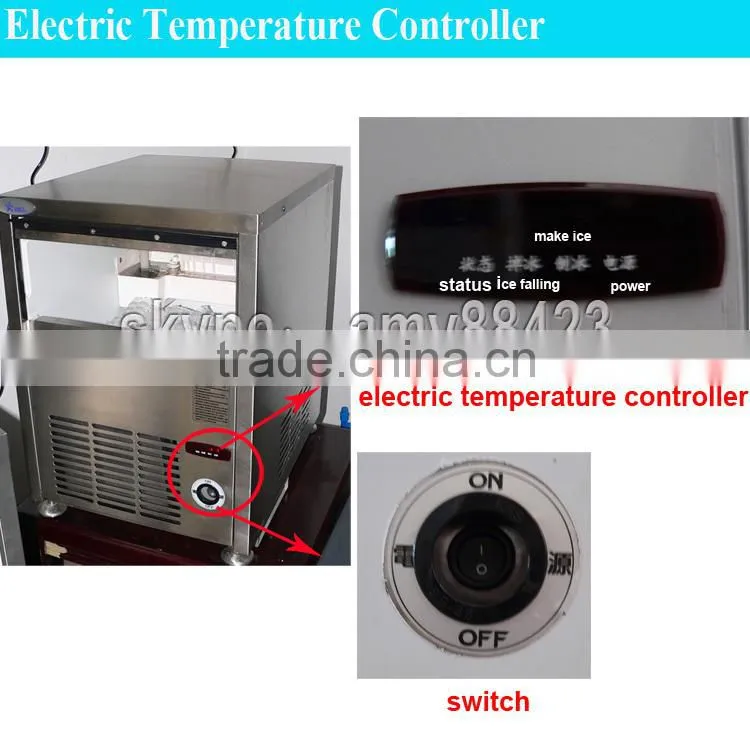

4. Electric temperature controller for our ice maker machine

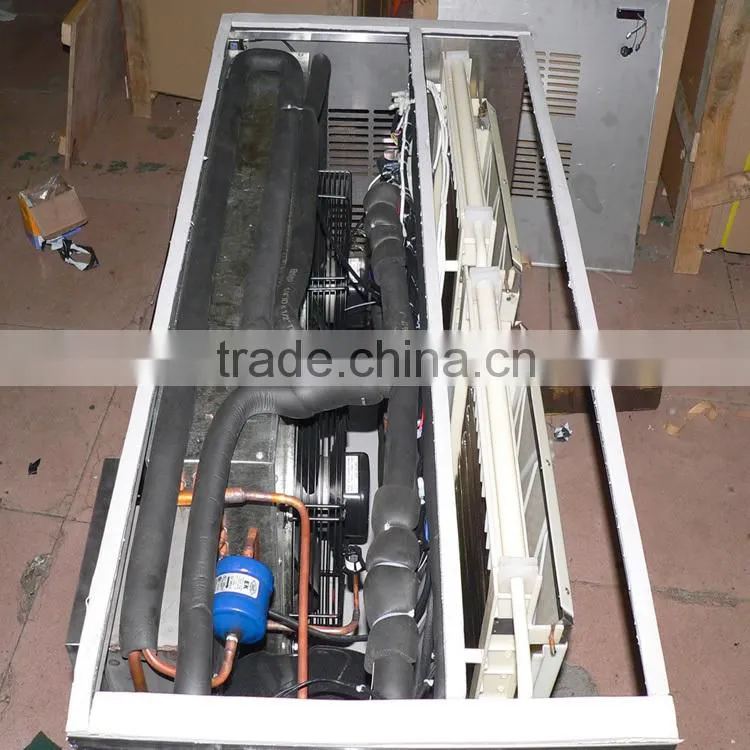

5. ice maker machine refrigeration unit :
refrigerant gas is R404a
6. ice maker machine catalogue :
split unit type ice maker machine
| Mould | Unit size | Max ice production | ice bin capacity | voltage | power | cooling system | refrigerant |
| GD-400 | 760*830*1560mm | 180/24hrs | 130kg | 220V/50HZ | 840W | Air cooling | R404a |
| GD-500 | 760*830*1660mm | 220/24hrs | 180kg | 220V/50HZ | 970W | Air cooling | R404a |
| GD-600 | 760*830*1700mm | 270/24hrs | 180kg | 220v/50hz | 1114W | Air cooling | R404a |
| GD-700 | 760*830*1800mm | 318kg/24hrs | 180kg | 220v/50hz | 1364W | Air cooling | R404a |
| GD-800 | 760*830*1800mm | 360kg/24hrs | 180kg | 220v/50hz | 1769W | Air cooling | R404A |
| GD-1000 | 760*830*1860mm | 450kg/24hrs | 180kg | 220v/50hz | 2382W | air cooling | R404a |
| GD-1300 | 1220*830*1800mm | 590kg/24hrs | 360kg | 220V/50HZ | 2382W | Air cooling | R404A |
| GD-1500 | 1220*830*1870 | 680KG/24hrs | 360KG | 220V/50HZ | 3388W | Air cooling | R404A |
| GD-1900 | 1560*1660*1900mm | 860kg/24hrs | 460kg | 220v/50hz | 4363W | air cooling | R404A |
| GD-1.0T | 1560*1660*1900mm | 1000kg/24hrs | 460kg | 220v/50hz | 5788W | air cooling | R404A |

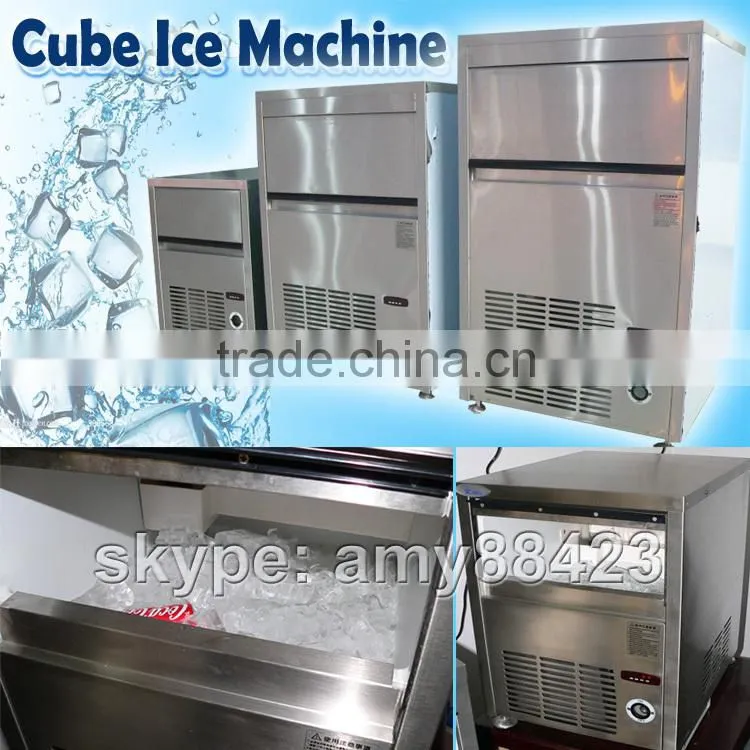

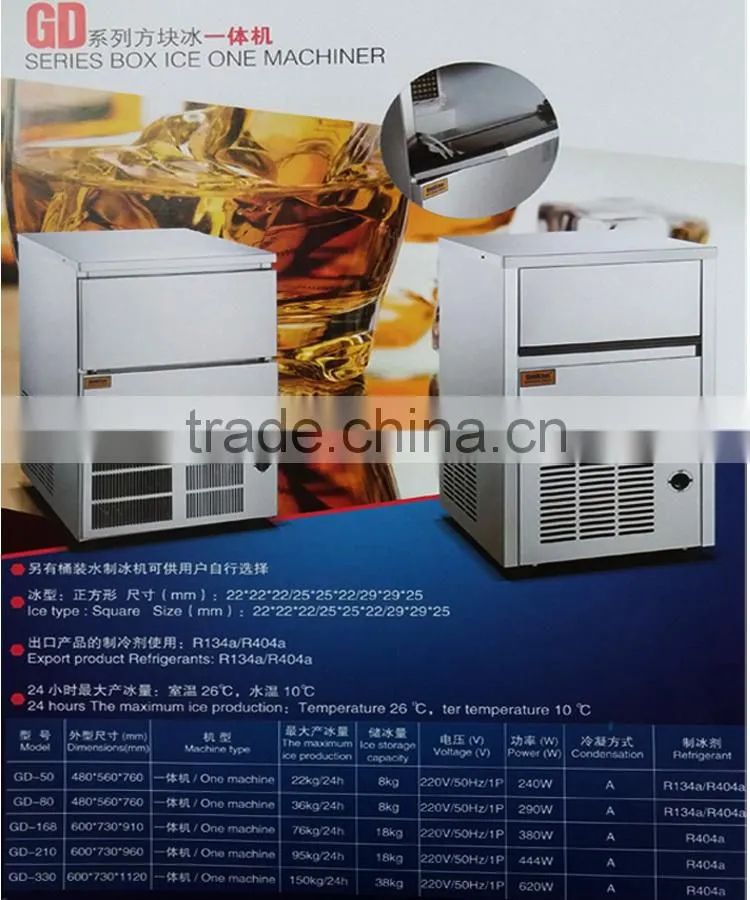

Built-in type ice maker machine
| Model | Unit size | Max ice production | ice bin capacity | voltage | power | cooling system | refrigerant |
| GD-50 | 480*500*760 | 22kg/24h |
|
220V/50HZ | 280W | AIR Cooling | R134a/R404a |
| GD-70 | 480*500*760 | 32kg/24h |
|
220V/50HZ | 310W | AIR Cooling | R134a/R404a |
| GD-90 | 480*500*810 | 40kg/24h |
|
2220V/50HZ | 434W | AIR Cooling | R404a |
| GD-110 | 480*500*810 | 50kg/24h | 16kg | 220V/50HZ | 434W | AIR Cooling | R404a |
| GD-128 | 600*630*900 | 58kg/24h | 28kg | 220V/50HZ | 434W | AIR Cooling | R404a |
| GD-150 | 600*630*900 | 68kg/24h | 28kg | 220V/50HZ | 434W | AIR Cooling | R404a |
| GD-200 | 600*630*1000 | 90kg/24h | 28kg | 220V/50HZ | 546W | AIR Cooling | R404a |
| GD-250 | 600*630*1000 | 110kg/24h | 22kg | 220V/50HZ | 546W | AIR Cooling | R404a |
| GD-300 | 600*630*1000 | 136kg/24h | 28kg | 220V/50HZ | 774W | AIR Cooling | R404a |
7. Ice maker machine Work Conditions:
Power supply:Full electric system complying with the general international standard
Ambient temperature:26°C
Water supply temperature:10°C
(when 26°C ambient temperture and 10°C water temperature can reach max ice production.)
Cube ice specification:21*21*21mm,10*21*21mm,30*38*13mm,30*30*25mm
Refrigrant:R404A

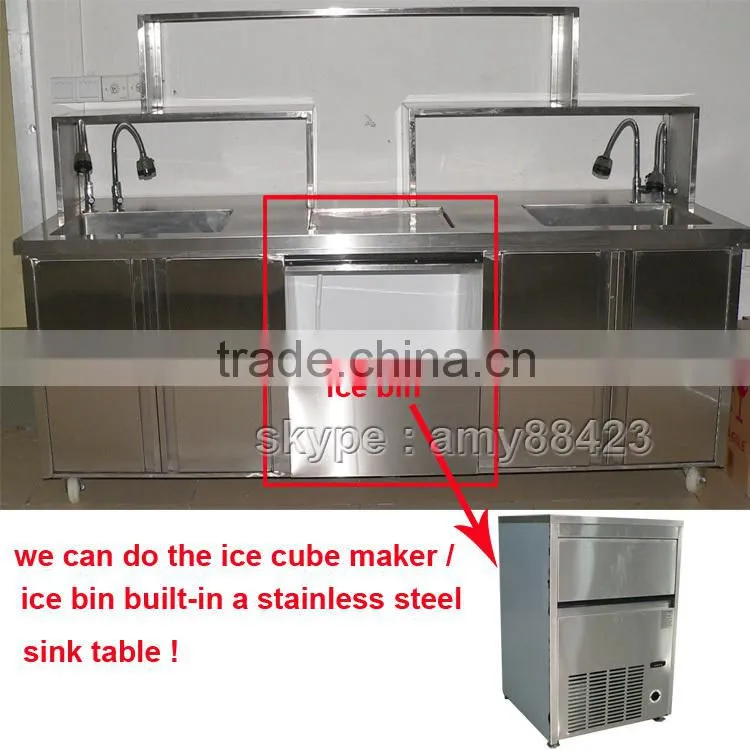

8. we can do the ice maker machine built in the stainless steel table .

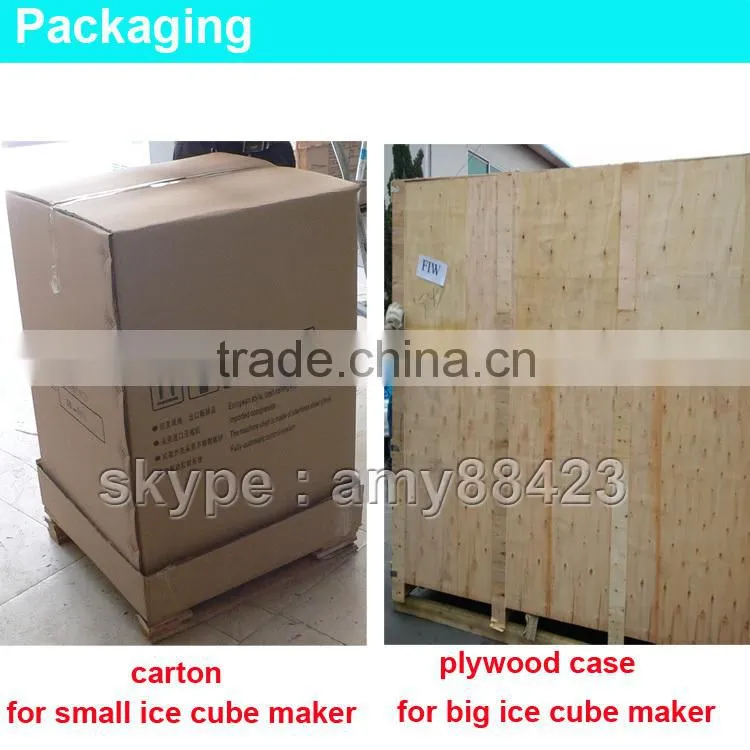

ice maker machine packaging :
carton for ice maker machine packaging
Professional pre-sales team
* Being patient to learn clients'need
* Suggesting item in according to clients'need
* Being Patient to answer clients'doubt
Professional after-sale team
* keeping in touch with clients in order to let clients know process of the orders
* technical support throughout whole transaction
* designing suitable marketing plan
* being positive to answer occurring question during transaction
for the quote, please reply following info to make precise quote,
* which ice maker machine do you need, flake ice, tube ice, cube ice, block ice, slurry ice, plate icee? how many tons per day?
eg. 100kg/ day ice maker machine
* what is the ambient temperature and water inlet temperature?
for more info, please contact us .
