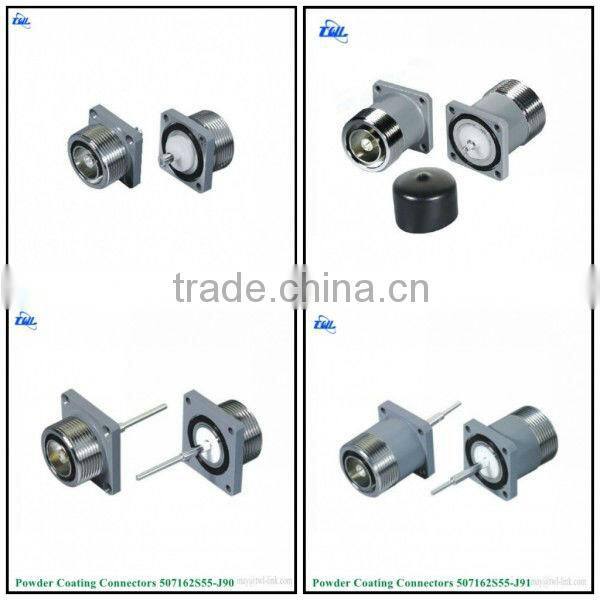

Help CenterPowder Coating/Painting Albaloy Plating With Flange Mount Din 7/16 Connector
Related Products
-
Powder Coating/Painting DIN 7/16 Plug & Jack Connector With 4 Hole FlangeUS$ 2 - 4MOQ: 100 Pieces -
Powder Coating/Painting DIN 7/16 Plug & Jack Connector for MicrostripUS$ 2 - 4MOQ: 100 Pieces
-
Powder Coating/Painting DIN 7/16 Female & Male Connector With 4 Hole FlangeUS$ 2 - 4MOQ: 100 Pieces
-
Powder Coating/Painting DIN 7/16 Plug & Jack Connector With 4 Hole Flange for MicrostripUS$ 2 - 4MOQ: 100 Pieces
-
DIN Connector for 1/2 Cable /male ConnectorUS$ 1.2 - 2.2MOQ: 1000 Pieces
Specifications
China's first manufacturer has the surface powder technology of RF connectors !Powder coating connectors, Din 7/16 Connector series & N Connector Series,RF connectors
Painting connector Surface treatment "Powder coating is a type of coating that is applied as a freeflowing,
dry powder. The main difference between a conventional liquid paint and a powder coating is that the powder coating
does not require a solvent to keep the binder and filler parts in a liquid suspension form. The coating is
typically applied electrostatically and is then cured under heat to allow it to flow and form a ""skin"".
The powder may be a thermoplastic or a thermoset polymer.It is usually used to create a hard finish that
is tougher han conventional paint. Powder coating is mainly used for coating of metals, such as household
appliances,aluminium extrusions, and automobile and bicycle parts. Newer technologies allow other materials,
such as MDF (mediumdensity fibreboard), to be powder coated using different methods.
There are several advantages of powder coating over conventional liquid coatings:
1. Powder coatings emit zero or near zero volatile organic compounds (VOC).
2. Powder coatings can produce much thicker coatings than conventional liquid coatings without running or sagging. 3. Powder coating overspray can be recycled and thus it is possible to achieve nearly 100% use of the coating. 4. Capital equipment and operating costs for a powder line are generally less than for conventional liquid lines. 5. Powder coated items generally have fewer appearance differences between horizontally coated surfaces and vertically coated surfaces than liquid coated items. 6. A wide range of specialty effects is easily accomplished which would be impossible to achieve with other coating processes.
Mechanical Characteristics | |
ELECTRICAL DATA |
|
Impedance |
50Ω |
Frequency Range |
0-7.5GHz |
Dielectric withstanding voltage (at sea level) |
4000 V rms,50Hz |
Working voltage (at sea level) |
2500 V rms,50Hz |
Insulation resistance |
≥ 100000 mΩ |
Contact resistance |
Inner conductor: ≤0.4mΩ |
Outer conductor: ≤1.5mΩ |
|
RF leakage (at 1 GHz) |
≥128dB |
MECHANICAL DATA |
|
Coupling nut torque |
Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs |
Proof torque: 35 Ncm / 310 in.lbs |
|
Coupling nut retention force |
≥1000N / 225.0 lbs |
Contact captivation |
≥200N / 45.0 lbs |
Durability (matings) |
≥500 |
ENVIRONMENTAL DATA |
|
Temperature range |
-65°C to +165°C |
MATERIAL DATA |
|
Bodies |
Brass--ternary alloy plating |
Pin contacts |
Brass--Au/Ag plating |
Socket contacts |
Phosphor bronze / Beryllium copper--Ag plated |
Crimp ferrules |
Copper--ternary alloy plating |
Insulator |
PTFE |
Gaskets |
Silicone rubber |
Customer satisfaction is our highest goal.
Twinlinkwould like to seek mutual development with all clients
replying on its scientific management,first-rate products and high-quality services.
