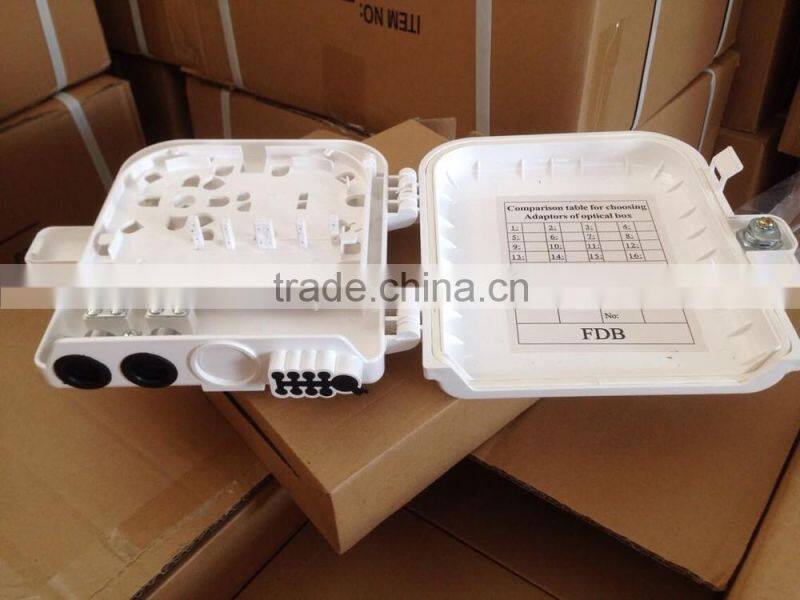

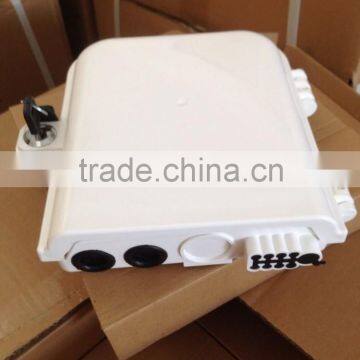

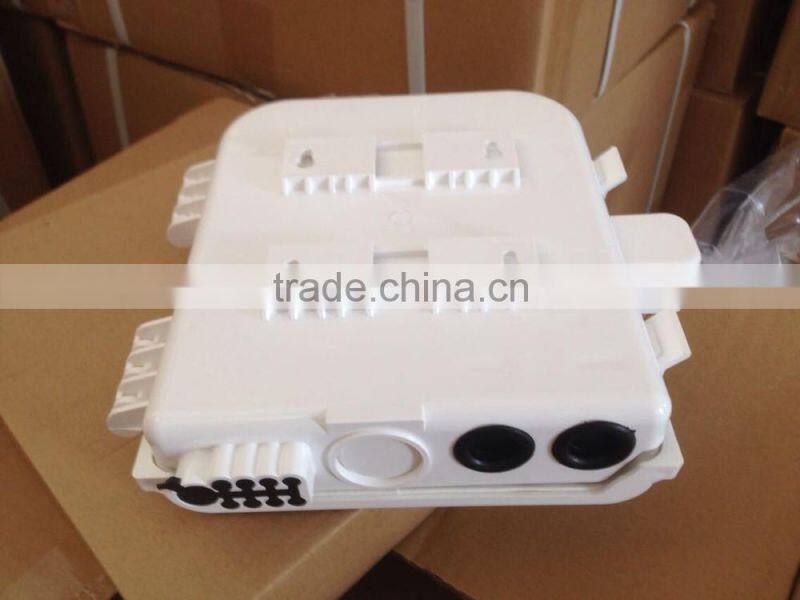

Fiber Optic 1*16 Port FTTH Indoor Terminal Box

Features:
1. Up to 16 pcs of drop cable
2.2 ports for outdoor cable in
3.16ports for drop cable or indoor cable out
4 can accommodate 1x4 and 1x8 1x16 PLC splitter (or 2x4 or 2x8)
5. Wall mounting and pole mounting application

Application:
1. FTTH access network
2. Telecommunication networks
3.16ports for drop cable or indoor cable out
4. CATV networks
5. Data communication networks
6. LAN

Optic fiber boxes is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH. This terminal box applies to the communications room and various network room wall installation or desktop installation.

Feature:

 1. The design of the two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.

2. Optical Splitter module drawer modular design with a high degree of interchangeability and versatility;

3. The fiber optic cable to enter the number of:1x2 root (lower into the cable); The FTTH fibers enter the number of : 8 x 2 (under into the fiber);

4. 1SC or FC panels and each panel can hold 6 adapters

5. Box made of SMC material

General:

Relative Humidity:≤95%(+40°C);

Operating Temperature:-40°C~+60°C

 Dimension:400mm x 300mm x 110mm

Application:

1.Widely used in FTTH (Fiber To the Home) access network

2.Telecommunication Networks

3.CATV Networks

4.Data communications Networks

5.Local Area Networks

6.Suitable for Telekom UniFi



Accessories:

Cabinet keys; Plastic expansion screw, Self-tapping screws; Hose clamps, Shrinkable sleeves, etc.
