7/16 Elbow Connector RF COAXIAL ADAPTER

Name: 7/16 Elbow Connector RF COAXIAL ADAPTER
Brand: Twinlink
SKU: 131137027
Availability: InStock

US$ 3 - 5 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Twinlink

Model Number:

507162S55-J29A

Twinlink Communication Technology(Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Twinlink

Model Number 507162S55-J29A

Type DIN

Application RF

Gender Other, male to female

Specifications

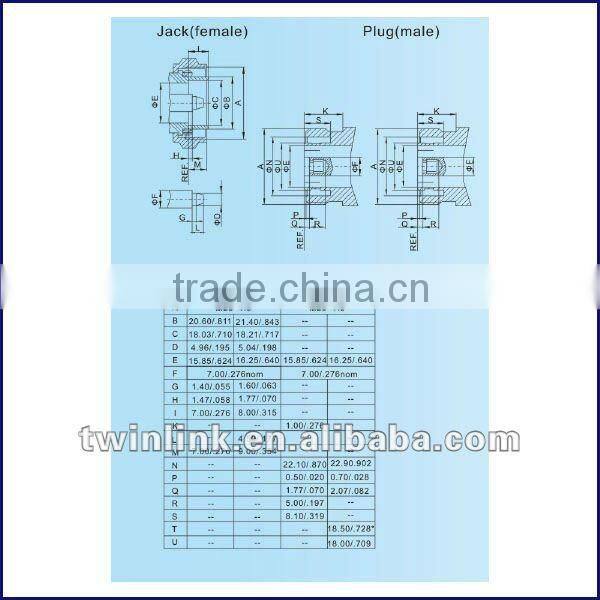

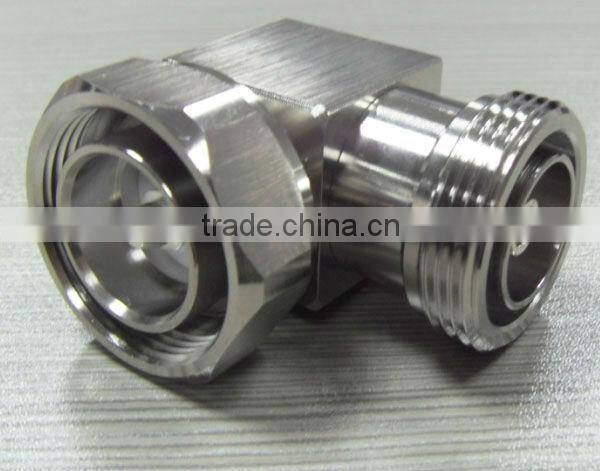

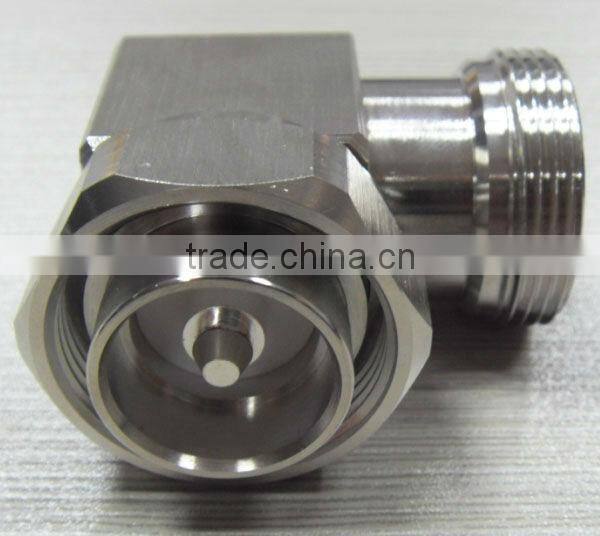

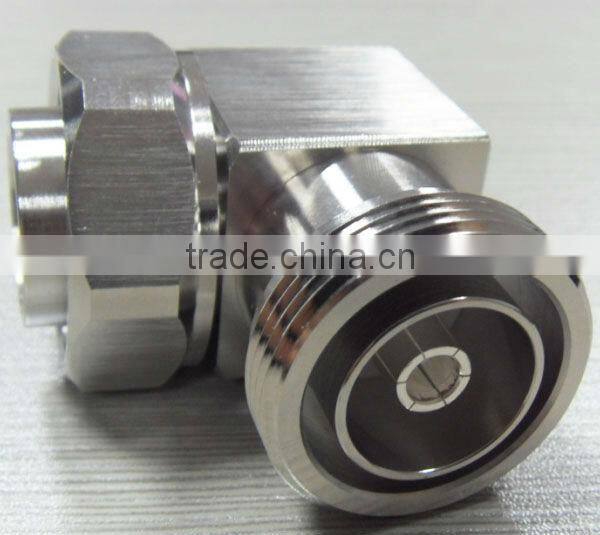

7/16 Elbow connector RF COAXIAL ADAPTER
1.OEM,ODM
2. Andrew vendor
3.ISO9001,ISO14001

7/16 Elbow connector RF COAXIAL ADAPTER

Performance description
Twinlink din female coax connector is a kind of thread connecting coaxial connector manufactured according to IEC169-4 and DIN 47223,and it is featured with low power consumption with high transmitting power .That series are most waterproof structures,with applications in outdoor facilities,high power transportation lines,especially in prevailing use of the Antenna and cable system of microwave and mobile communication.

Electrical specification
Characteristic Impedance:	50ohm
Frequency Range:	0-7.5GHz
Withstand Voltage:	4000V,50Hz
Working Voltage:	2500V,50Hz(see level)
Insulation Resistance:	<=100000mohm
Contact Resistance:	Inner conductor: <=1.0mohm
Contact Resistance:	Outer conductor: <=0.5mohm
RF Leakage(1GHZ):	Flexible: <=128dB
IMD(3rd Order Intermodulation)	>=160dBc

Mechanical Specification
Pin conductor:	Brass-Au plated
Body:	Brass-CuSnZn3 plated
Plug:	Phosphor bronze / Beryllium copper--Ag plated
Crimping suite:	Copper--CuSnZn3 plated
Insulator:	PTFE / PFA
Sealing:	Silica rubber

MECHANICAL DATA
Coupling nut torque	Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs
Coupling nut torque	Proof torque: 35 Ncm / 310 in.lbs
Coupling nut retention force	<=1000N / 225.0 lbs
Contact captivation	<=200N / 45.0 lbs
Durability (matings)	<=500

ENVIRONMENTAL DATA
Temperature range	-65°C to +165°C

Customization advantages
1.Manufactorer experience:5years
2.Reliable performance
3.OEM/ODM service available
4.Perfect production management system(ISO9001,ISO14001)
5. Experienced R&D staff
6.Samples trial order available
7.All Goods will be tested before shipping
8.International series:MMCX,MCX,SMA,SMB,SMC,N,7/16,F,BNO,BNT,UHF,SHV, D-sub,QMA,BMA,TNC series etc available for you.

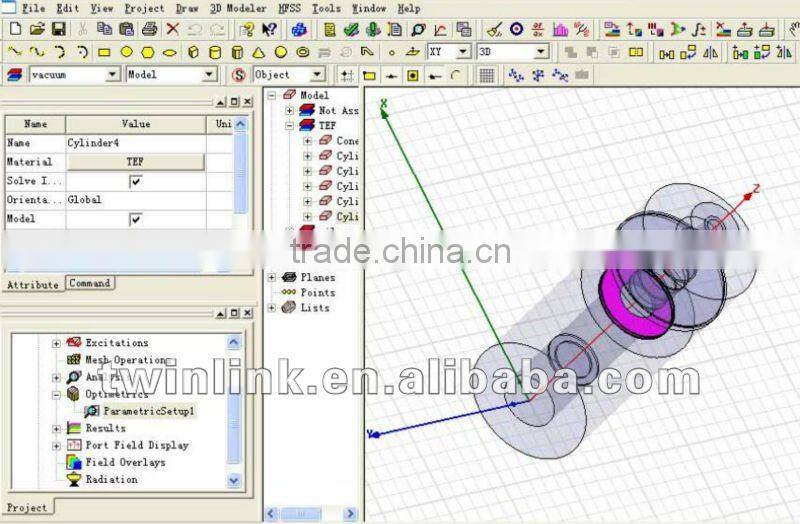

How to order RF coaxial connectors from Twinlink
Twinlink is a professional and experienced RF connector products manufacturer for 5years. Just show me your drawing ,sample or indicated details, we will produce it for you effectively. Or pls kindly send us your specific engineering parameters such as IMD,V.S.W.R,plating,etc.And we will discuss with you about the details.

Applicable Standard	CECC 22190
	IEC 60169-4
	DIN 47223

Certifications approved
RoHS,SGS,IEC169-4,ISO9001:2008,ISO14001,IP68

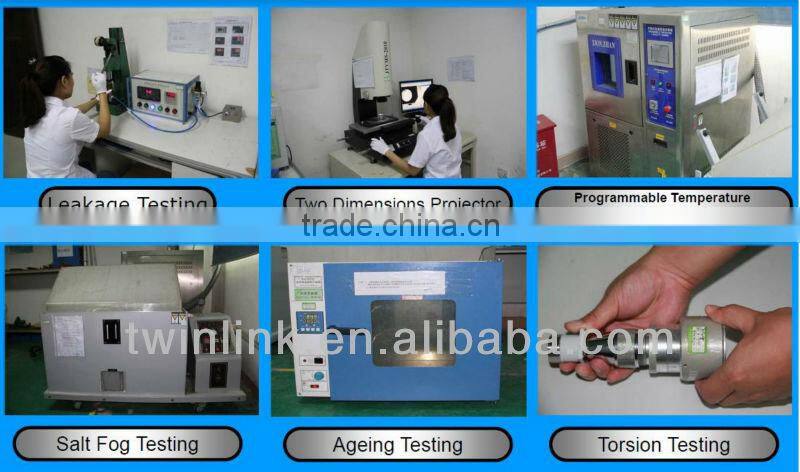

Quality Control
Twinlink is also highly regarded as a quality manufacturer, with precision testing and inspection equipment. Twinlink has already achieved ISO 9001:2008 and ISO14001: 2004 cetification, and all of our products comply with RoHS requirements.
Minimum Testing Standard
1. Waterproof: IP68 grade, drop into 1 meter deep water, and take it out after 24 hours later, there is no water seepage indication arriving. 2. Salt Mist Testing 5% concentration salt mist testing standard Au plated, minimum 96 hours Ag plated, minimum 336 hours CuSnZn3 plated, minimum 336 hours 3. Aging testing Aging temperature minimum 85 degree, take it out after 24 hours later, the mechanical characteristics in the standard range.

Twinlink will try our best to insure the packing and transportation process, to make sure our customers received the perfect cargo. We have different packing methods to meet our customers requirement.
Normal Packing Selective
1.Foam + Carton 2.Blister + Carton 3.Vacuumize + Blister + Carton 4.Vacuumize + Foam + Carton

Vacuumize

Vacuumize +carton

Foam

Carton
