Din 7/16 Male to Female Adaptor
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TWL
Model Number:
TWL-DIN-ADAPTER-001
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Jack to Jack Ternary Alloy Plating RF Coaxial Connector Din AdapterUS$ 2 - 3MOQ: 1000 Pieces -
7/16 Elbow Connector RF COAXIAL ADAPTERUS$ 3 - 5MOQ: 1000 Pieces
-
T-type RF Coaxial Adapter Connector With BNC Male to Double FemaleNegotiableMOQ: 1000 Pieces
-
Twinlink Right Angle RF Adaptor/ 7/16 DIN Famale RF Connector Male to Female AdpaterUS$ 1.2 - 1.5MOQ: 1000 Pieces
-
Twinlink SMA to MBX RF Adaptor rf Coaxial ConnectorUS$ 1.2 - 1.5MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
TWL
Model Number
TWL-DIN-ADAPTER-001
Type
Other, DIN, 7/16 Din rf connector
Application
RF
Gender
Other, male to female
Specifications
1. Factory & Manufacture2. ODM & OEM services
3. ISO9001:2008 & ISO14001:2004
4. RoHs completely

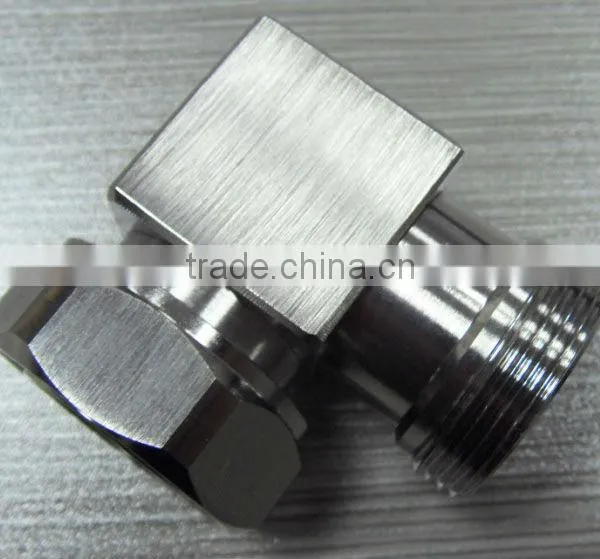

Din 7/16 male to female adaptor
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency Range | 0-7.5GHz |
| Dielectric withstanding voltage (at sea level) | 4000 V rms,50Hz |
| Working voltage (at sea level) | 2500 V rms,50Hz |
| Insulation resistance | ≥ 100000 mΩ |
| Contact resistance | Inner conductor: ≤0.4mΩ |
| Outer conductor: ≤1.5mΩ | |
| RF leakage (at 1 GHz) | ≥128dB |
| MECHANICAL DATA | |
| Coupling nut torque | Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs |
| Proof torque: 35 Ncm / 310 in.lbs | |
| Coupling nut retention force | ≥1000N / 225.0 lbs |
| Contact captivation | ≥200N / 45.0 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--ternary alloy plating |
| Pin contacts | Brass--Au/Ag plating |
| Socket contacts | Phosphor bronze / Beryllium copper--Ag plated |
| Crimp ferrules | Copper--ternary alloy plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
| Applicable Standard |
| CECC 22190 IEC 60169-4 DIN 47223 |
Packing Details
Tinlink will try our best to insure the packing and transportation process, to make sure our customers received the perfect cargo.
We have different packing method to meet our customers requirement.
| Normal Packing |
| Packing Details: Foam + Carton Blister + Carton Vacuumize + Blister + Carton Vacuumize + Foam + Carton |
