Twinlink RF Coaxial Adaptor / 716 rf Connector

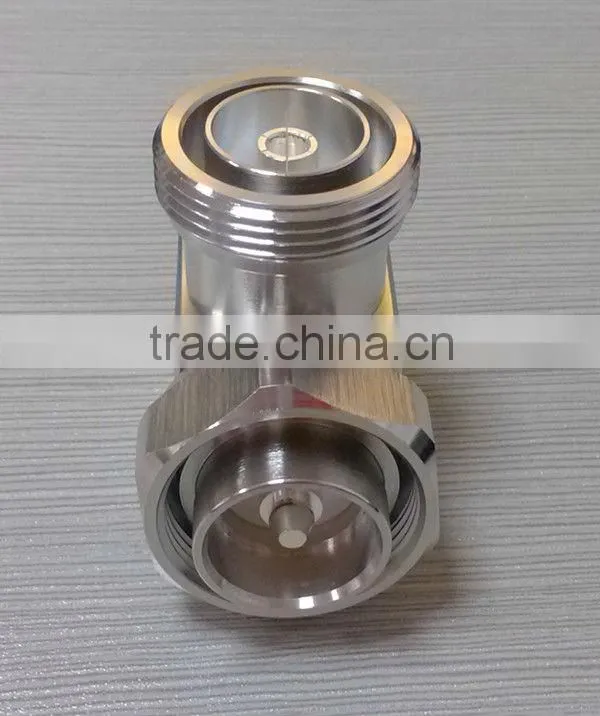

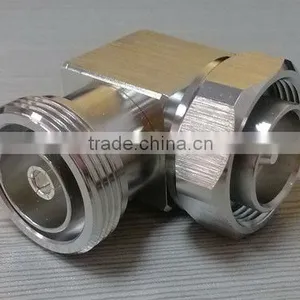

Twinlink RF Coaxial Adaptor / 716 rf Connector photo-1
US$ 1.2 - 1.5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Twinlink
Model Number:
L29
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Twinlink
Model Number L29
Type F
Application Other, RF, RF
Gender Female

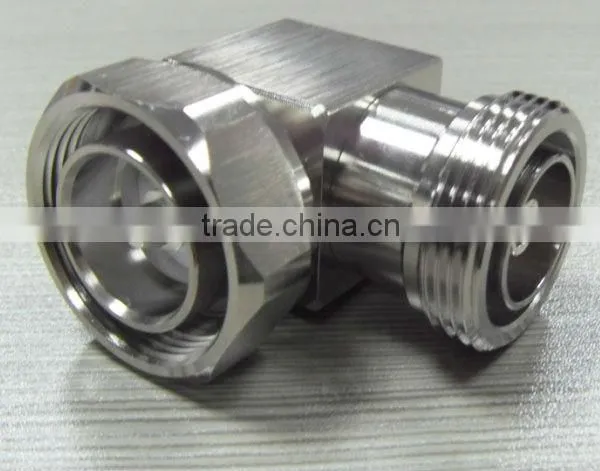

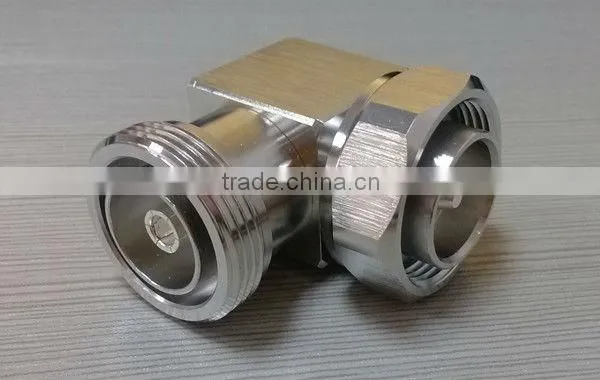

    Twinlink rf coaxial adaptor / 716 rf connector



SMA launchers are the preferred connection element for varied microwave circuits, including hermetically sealed designs. The SMA line covers a huge variety of applications such as Test+Measurement, mobile communications, avionics, etc.





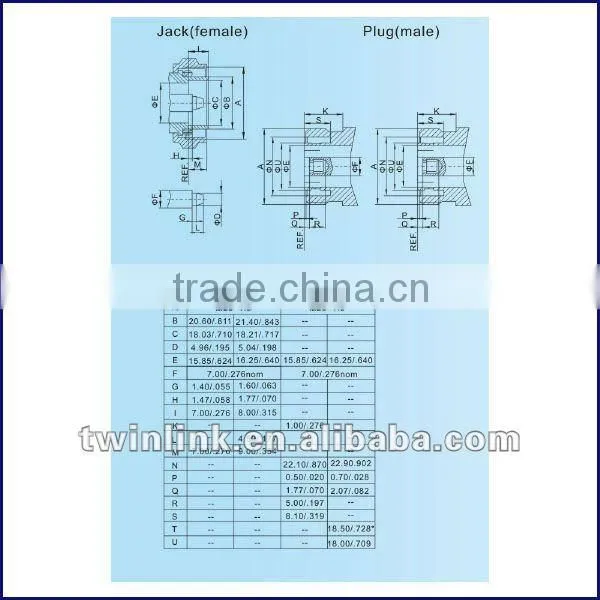

ELECTRICAL DATA
Impedance                                                                  50Ω
Frequency range (for connector interface) DC~18GHz
Dielectric withstanding voltage (at sea level) ≥750-1500V,50Hz (depending on cable)
Working voltage (at sea level) ≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M)
Insulation resistance ≥ 5000 mΩ
Contact resistance Inner conductor: ≤3mΩ
Outer conductor: ≤2.5mΩ
RF leakage(2-3GHZ) Flexible: ≥60dB
Semi-rigid cable: ≥100dB

MECHANICAL DATA
Coupling nut torque 0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs
Coupling nut retention force ≥270N / 60.7 lbs
Contact captivation axial ≥27N / 6.1 lbs
Durability (matings) ≤500

ENVIRONMENTAL DATA
Temperature range -65°C to +165°C

MATERIAL DATA
Bodies, outer contacts Beryllium copper--Au plating
Stainless steel--Passivation
Brass--Au plated / ternary alloy plating
Phosphor bronze --Au plating
Pin contacts Brass/Beryllium copper--Au plating
Socket contacts Beryllium copper / Phosphor bronze--Au plating
Crimp ferrules Brass--Au plating
Insulator PTFE
Gaskets Silicone rubber





Applicable Standard
MIL-C-39012;
CECC 22110;
IEC 60169-15.
