Gold Plated SMA Male to SMA Female rf Coax Adapter
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Twinlink
Model Number:
SMA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMA Crimp Automotive ConnectorNegotiableMOQ: 500 Pieces -
Quality Guarantee Sma Pin Connector for PcbaNegotiableMOQ: 500 Pieces
-
Sma rf Coaxial Pcb ConnectorNegotiableMOQ: 500 Pieces
-
Ternary Alloy Plating N Plug to SMA Jack rf Coaxial AdapterUS$ 0.6 - 2MOQ: 1000 Pieces
-
SMA to MBX AdaptorNegotiableMOQ: 5000 Pieces
Place of Origin
Guangdong, China
Brand Name
Twinlink
Model Number
SMA
Type
SMA
Application
RF
Gender
Female
Specifications
Gold plated SMA male to SMA female rf coax adapter1.OEM,ODM service
2.ISO9001:2008,ISO14001:2004,Rohs
3.High reliable

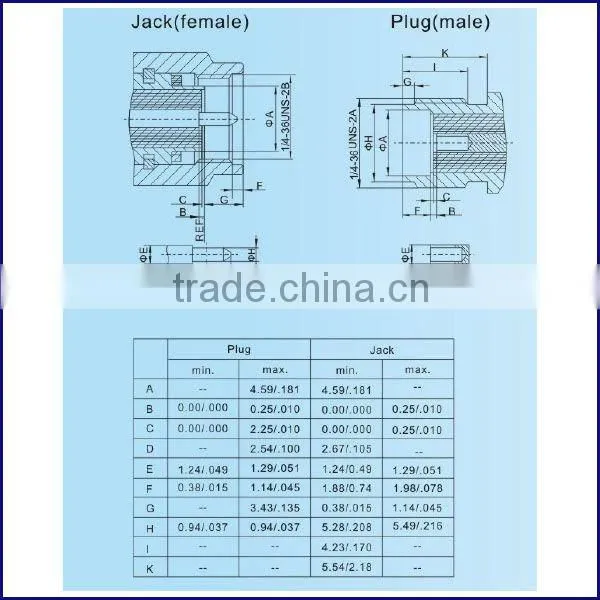

Gold plated SMA male to SMA female rf coax adapter
| Performance description | |
| ODM SMA RF connector is a type of small size,wide frequency,excellect mechanical naturehigh reliability,etc.All meet with the stand of MIL-C-39012, IEC169-15 & CECC22110.With Twinlink unique reasonable structure and sound performance | |
| Electrical specification | |
| Characteristic Impedance: | 50Ω |
| Frequency Range: | Flexible: 0-18GHz |
| Withstand Voltage: | 750-1500V,50Hz |
| Working Voltage: | 250-500V,50Hz(see level) |
| Insulation Resistance: | ≥5000mΩ |
| Contact Resistance: | Inner conductor: ≤3mΩ |
| Outer conductor: ≤2.5mΩ | |
| RF Leakage(1GHZ): | Flexible: ≥60dB |
| Semi-rigid cable:≥100dB | |
| Mechanical Specification | |
| Pin conductor(Center contact): | Brass/Beryllium copper-Gold plated |
| Body: |
Beryllium copper-Gold plated Stainless steel-passivation Brass-Gold plated/Ternary alloy(Cu+Zn+Sn) Phosphor bronze-Gold plated |
| Plug: | Beryllium copper/Phosphor bronze--Gold plated |
| Crimping suite: | Brass--Gold plated |
| Insulator: | PTFE / PFA |
| Sealing | silica rubber |
| Customization advantages | |
| 1.Manufactorer experience:5years | |
| 2.Reliable performance | |
| 3.OEM/ODM service available | |
| 4.Perfect production management system | |
| 5. Experienced R&D staff | |
| 6.Samples available | |
| 7.All Goods will be tested before shipping | |
|

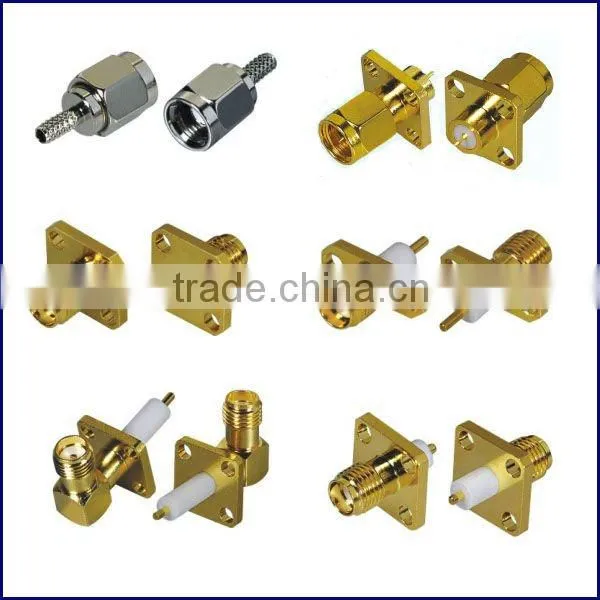

8.International series:MMCX,MCX,SMA,SMB,SMC,N,7/16,F,BNO,BNT,UHF,SHV, D-sub,QMA,BMA,TNC series etc available for you.
| |
| How to order RF coaxial connectors | |
|

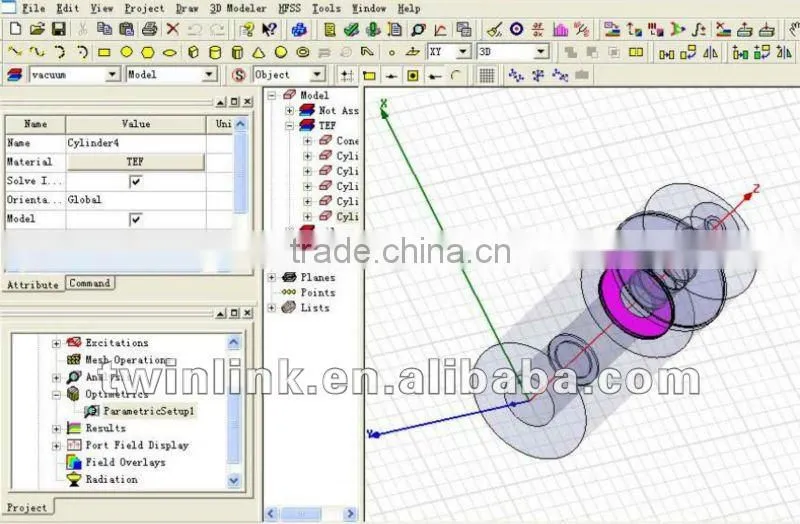

Twinlink is a professional and experienced RF connector products manufacturer for 7 years. Just show me your drawing ,sample or indicated details, we will produce it for you effectively. Or pls kindly send us your specific engineering parameters such as IMD,V.S.W.R,plating,etc.And we will discuss with you about the details. |
| Applicable Standard | MIL-C-39012 |
| CECC-22110 | |
| IEC169-15 | |
| Certifications approved | |
| RoHS,SGS,IEC169-15,ISO9001:2008,ISO14001 | |
| Quality Control | |

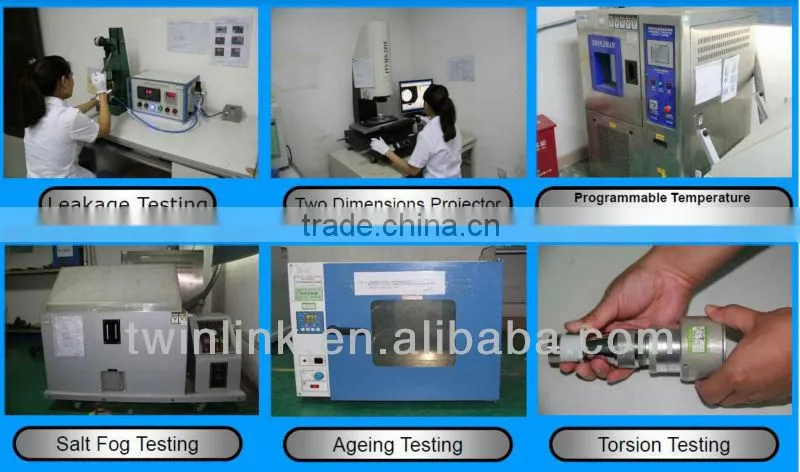

| Twinlink is also highly regarded as a quality manufacturer, with precision testing and inspection equipment. Twinlink has already achieved ISO 9001:2008 and ISO14001: 2004 cetification, and all of our products comply with RoHS requirements. | |
| Minimum Testing Standard | |
| 1. Waterproof Testing: IP68 grade, drop into 1 metre deep water, and take it out after 24 hours later, there is no water seepage indication arriving. 2. Salt Mist Testing 5% concentration salt mist testing standard Au plated, minimum 96 hours Ag plated, minimum 336 hours CuSnZn3 plated, minimum 336 hours 3. Aging testing aging temperature minimum 85 degree, take it out after 24 hours later, the mechanical characteristics in the standard range |
| Normal Packing Selective | |
|
1.Foam + Carton 2.Blister + Carton 3.Vacuumize + Blister + Carton 4.Vacuumize + Foam + Carton |
Vacuumize
Vacuumize+carton
Blister
Foam
RF connectors,RF coaxial connectors,coax connectors,SMA RF connectors
