BAFANG G06 MOTOR KIT/8 fun rear motor kit
- Advantage
>> This BAFANG G06 rear-drive motor kits, which is compatible with the disc brake, has a rated power of 250-750W,a reduction ratio of 1: 5 and a maximum torque of 80 N.m, providing ideal >> power for vehicles.
>> Strong and efficient, this motor, working together with a cassette or freewheel speed change mechanism, greatly enhances riding comfort and is suitable for beach buggies and snow bikes. It can be black or sliver.
- Technical Parameters
| Technical Parameters | ||||
| Rated Power | 250W | 350W | 500W | 750W |
| Nominal Voltage | 36V/48V | 36V/48V | 36V/48V | 48V |
| Position | Rear Motor | Rear Motor | Rear Motor | Rear Motor |
| Construction | Brushless Geared Motor | Brushless Geared Motor | Brushless Geared Motor | Brushless Geared Motor |
| RPM | 180-420 | 180-420 | 180-420 | 180-420 |
| Max Torque | 80N.m | 80N.m | 80N.m | 80N.m |
| Efficiency | 80% | 80% | 80% | 80% |
| IP-Code | IP 65 | IP 65 | IP 65 | IP 65 |
| Hall Sensor | With | With | With | With |
| Axle | 100mm/135mm | 100mm/135mm | 100mm/135mm | 100mm/135mm |
- Motor Kit Including
1. 8-Fun Motor
2. Controller
3. Twist throttle or thumb throttle
4. Brake(for both side power off)
5. 1:1 PAS system
- Pics Of Motor Parts:
Geared Motor Controller
PAS System Brake
Rim Throttle

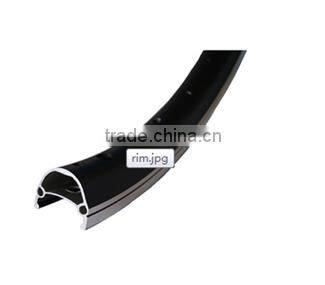

Double-Wall Rim
- Package
The Kit offers durability and performance in mind,packed as standard,with 7-floor export carton,main parts packed by EPE enviromentally friendly foam material,all parts are seperated in nylon bag.Strong package avoid damages from long-way shipping.
- CE Certification:
