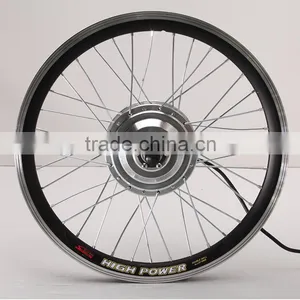

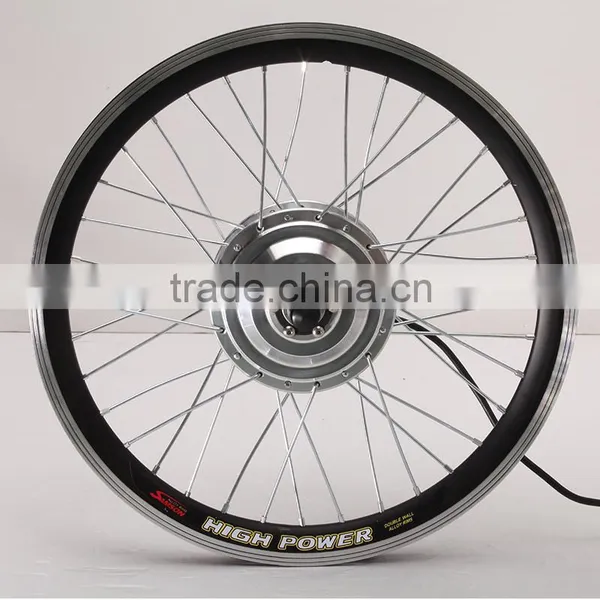

CE Approved 36V Electric Bicycle Motor Kit With Lithium Battery
- Advantage
>> Tired of pedaling that bike all day? Then you please consider our geared hub motor Wheel Electric Bicycle Kit.
>> This geared hub motor kit comes complete with a magnetic pedelic to help assist your ride, a thumb throttle for easy accelleration, and you can add one of the best e-bike batteries.
- Technical Parameters
| Technical Parameters | ||||
| Rated Power | 180W | 200W | 250W | 350W |
| Nominal Voltage | 36V | 36V | 36V | 36V |
| Position | Front Motor/Rear Motor | Front Motor/Rear Motor | Front Motor/Rear Motor | Front Motor/Rear Motor |
| Construction | Brushless Geared Motor | Brushless Geared Motor | Brushless Geared Motor | Brushless Geared Motor |
| RPM | 180-235 | 180-235 | 180-235 | 180-235 |
| Max Torque | 15N.m | 15N.m | 15N.m | 15N.m |
| Efficiency | 80% | 80% | 80% | 80% |
| Hall Sensor | With | With | With | With |
| Axle | 100mm(Front)/135mm(Rear) | 100mm(Front)/135mm(Rear) | 100mm(Front)/135mm(Rear) | 100mm(Front)/135mm(Rear) |
- Motor Kit Including
1. Germany Type Motor (180℃ copper winding +best magnet)
2. Double wall alloy rims,2.6mm spokes
3. Twist throttle or thumb throttle
4. Brake(for both side power off)
5. 36V 15A/17A controller(6 moz tubes in it)Germany quality
6. 1:1 PAS system
7. Use manual with ties also widing pipe
- Pics Of Motor Parts:
Geared Motor Controller
PAS System Brake
Rim Throttle

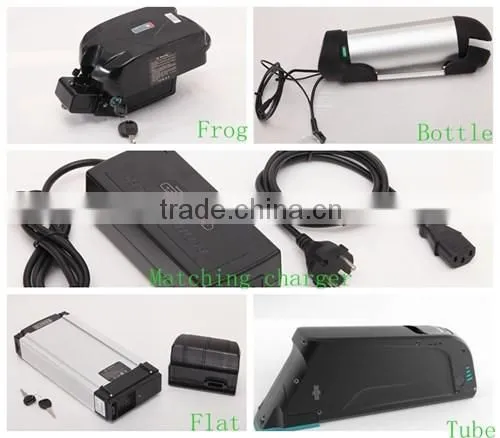

Many Kinds Of Battery

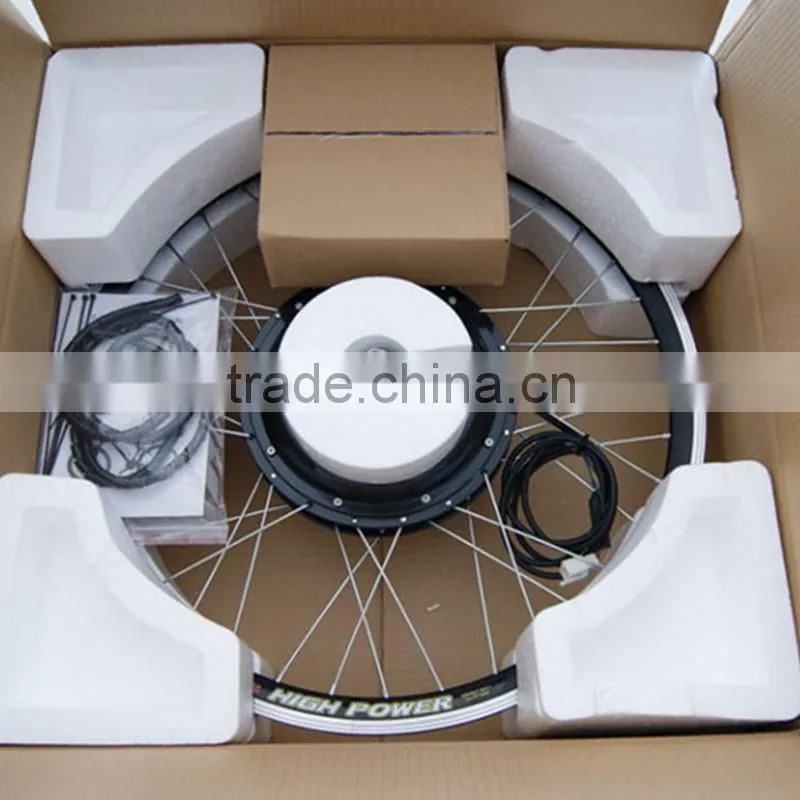

- Package
The Kit offers durability and performance in mind,packed as standard,with 7-floor export carton,main parts packed by EPE enviromentally friendly foam material,all parts are seperated in nylon bag.Strong package avoid damages from long-way shipping.
CE Certification:
