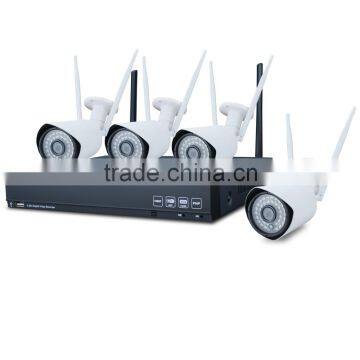

1080P wireless security cameras 4ch wifi nvr kits cctv kit
1080P wireless security cameras 4ch wifi nvr kits cctv kit
| Hot sale security system !! | |
| 4CH AHD DVR Kits | 4CH IP camera NVR kits |
|
|
|
|

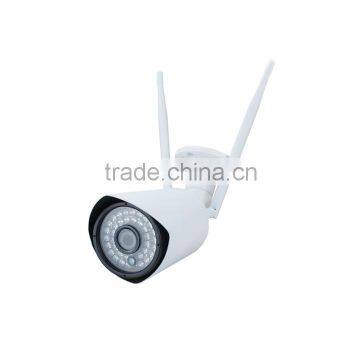

1080P WiFi IR Bullet IP Camera Model no.: GZ-IPC-B6206-W with AR 1021wifi model, 2 antennas |
|
| Pictures | |
| Key features | • 1/3" 1080P progressive scan CMOS |
| Camera | Image Sensor | 1/3" 1080P CMOS | |
| Effective Pixels | 1920 (H)x1080(V) | ||
| Min. Illumination | Color : 0. 05LUX/F1.8, B/W: 0Lux (IR on) | ||
| S/N Ratio | >50dB | ||
| Backlight Compensation | BLC | ||
| WDR | Digital WDR | ||
| Noise Reduction | 3D DNR | ||
| Gain Control | Auto/Manual | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| White Balance | Auto | ||
| Electronic Shutter Speed | Auto/Manual 1/50~1/10000 | ||
| IR distance | IR distance 20 Meters | ||
| Lens | Focal Length | 3.6 mm Lens | |
| Max Aperture | F1.8 | ||
| Focus control | Fixed | ||
| Angle of View | 70°@6mm | ||
| Video | Video Compression | H.264 High Profile / JPEG Snapshot | |
| Resolution | Main Stream:1080P(1920*1080) Sub Stream: 352*288 |
||
| Video Bitrates | 1024Kbps ~ 6144Kbps | ||
| Video Frame Rate | Default 15fps @1080P, Max. 30fps@1080P | ||
| Audio | Compression | ADPCM | |
| Interface | embedded mic in | ||
| Wifi parameters | Wifi standard | ieee 802.11 a/b/g/n | |
| Frequency range | 2.4GHZ/5GHZ | ||
| Security | 64/128-bit WEP, WPA/WPA2,WPA-PSK/WPA2-PSK,WPS | ||
| Transmission rate | 11b:11Mbps, 11a: 54Mbps, 11g: 54Mbps, 11n: 150Mbps | ||
| Transmission distance |
testing the communication distance bewtenn Wifi NVR WN3000 and Wifi IPC-B6207-W, WN3000 connected with router by cable : open environment 90 meters. Wall test, 4 walls, 33 meters |
||
| Network | Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | Support, IEEE802.11 b/g/n | ||
| Network Protocol |
IPv4, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Cloud |
||
| Network Preview | Web browser view, including IE,Chrome,Firefox | ||
| Smart Phone | Supports iPhone,iPad, Android phone,pad,Windows Mobile phone. | ||
| Compatibility | Onvif V2.1 | ||
| Max. User Access | 12 Users | ||
| General | Power Supply | DC12V | |
| Power Consumption | <6W | ||
| Working Environment | -10℃~+55℃(14°F~131°F),10%~90% | ||
| Ingress Protection | IP66 | ||
| Dimensions | Φ65 x 188mm | ||
| Weight | 360g | ||
|

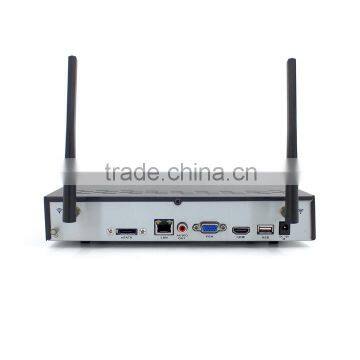

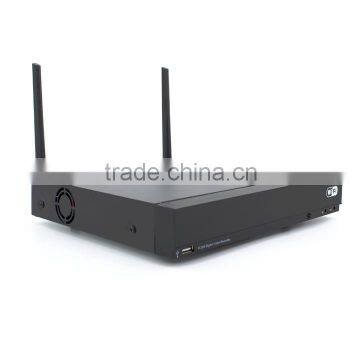

Model no.: GZ-NVR-WN3000 Main Chip: Hisilicon 3520D |
|
| Pictures |
|
| Key features |
|
| System | GUI | 16-bit True Color | |
| Operating System | Embedded Linux OS | ||
| Password security | Multi-level users management, 1 Admin + 19 Users | ||
| A/V Input | Video Input | 720P/1080P WiFi IP Camera x4 | |
| Audio Input | NO | ||
| A/V Output | Decoding resolution | 720P/1080P | |
| VGA output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) | ||
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) | ||
| Audio output | 1ch RCA | ||
| Playback resolution | 720P/1080P | ||
| Synchronous playback | 4CH | ||
| HDD | SATA Devices | 1 x SATA HDD | |
| Maximum capacity | 4TB | ||
| External HDD | 1 x Esata, e-sata as storage function. | ||
| External Interface | USB Connector | 2 x USB2.0 | |
| Serial Interface | NO | ||
| 2 way audio (voice talk) | NO | ||
| Alarm input/output | Optional | ||
| Network Interface | RJ 45,10M/100 M Ethernet, ieee802.11 b/g/n support AP or Station Mode,dual antenna | ||
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Onvif,P2P | |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad | ||
| System Upgrade | Supports USB update | ||
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser | ||
| General | Power Supply | Input 100~240V, 12V 2A | |
| Consumption | <10W without HDD&PoE | ||
| Working temperature | -10℃~+55℃(14°F~131°F) | ||
| Working humidity | 10%~90% | ||
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) | ||
| Weight ( w/o HDD/DVD±RW ) | 1.6 kg | ||

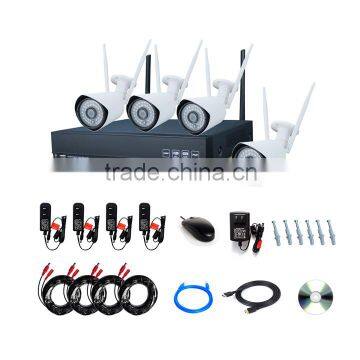

| BOM For 4CH 2MP Wifi kit, Based on R260 housing | ||||||
| NO. | Items | specification | Quantity | 1. Economy kit | 2. Standard kit | 3.Super kit |
| 1 | WN3000 -with Wifi | 4CH 2Mega @Hisilicon 3520D | 1 | √ | √ | √ |
| 2 | Original color box of NVR | with foam | 1 | √ | √ | √ |
| 3 | Adapter of NVR | 12V-2A | 1 | √ | √ | √ |
| 4 | Dryer bags | 1 | √ | √ | √ | |
| 5 | Software CD | 3.5" | 1 | √ | √ | √ |
| 6 | Remote Control with battery | 1 | √ | √ | √ | |
| 7 | USB Mouse(Red light) | USB Mouse with red light | 1 | √ | √ | √ |
| 8 | antennas of NVR | 2 | √ | √ | √ | |
| 9 | E-sata | 1 | √ | √ | √ | |
| 10 | Ethernet Cable | 3.5ft / 1m | 1 | √ | √ | √ |
| 11 | HDMI cable | 6.5ft / 2m | 1 | √ | √ | √ |
| 12 | Hard Disk | 1 | √ | |||
| 15 | 2MP Bullet Wifi IP Camera (Model:IPC-B6206-W2) | OV2710 +GM8136S | 4 | √ | √ | √ |
| 16 | Adapter of cameras | 12V-1A | 4 | √ | √ | √ |
| 17 | 18m power cable | 4 | √ | √ | ||
| 18 | antennas of cameras | 8 | √ | √ | √ | |
| 19 | Original color box of Camera | 1 package with 4 cameras | 4 | √ | √ | √ |
| 20 | Screw installation package | 4 | √ | √ | √ | |
| 21 | Outer box | 1 | √ | √ | √ | |
1.Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition.
