Germany Types of pipe joints Long life coolant chiksan swivel joint
Scope of application:
Rotate speed: less than or equal to 3000 RPM
Temperature: less than or equal to 250 Centigrade
Pressure: it is less than or equal to 2.5 MPa
Media: water, hot water
Descriptions
1. It provides a mechanical seal between a stationary supply pipe and a rotating equipment to permit the flow into and/or out.
2.Rugged-construction unions suitable for high pressure, high speed water & hydraulic duty
3. A double-row angular contact ball bearing maintains the rotor in perfect alignment. A pair of bearing isolator protects the bearing from direct contact with water in case of seal leakage.
4.Other port size and connection unions are available on order demand
5.The single passage 2003 series rotary unions are small, lightweight and corrosion-resistant
All Single and Multiple Passages Rotary Union Models Available With The Following Options
NPT BSP SAE or Metric Threads.
Right or Left Hand Thread on Rotor.
Steel Rotor with either an Aluminum or Steel Housing.
All Stainless Steel Construction upon Request.
Structure
|
Parts
|
Material
|
Housing |
casting iron |
Rotor |
Stainless steel304 |
Spring |
Stainless steel304 |
Gasket |
Graphite Asbestos |
Seal Ring |
mechanical seal |
Bearing |
NSK Bearing |
Head |
iron |

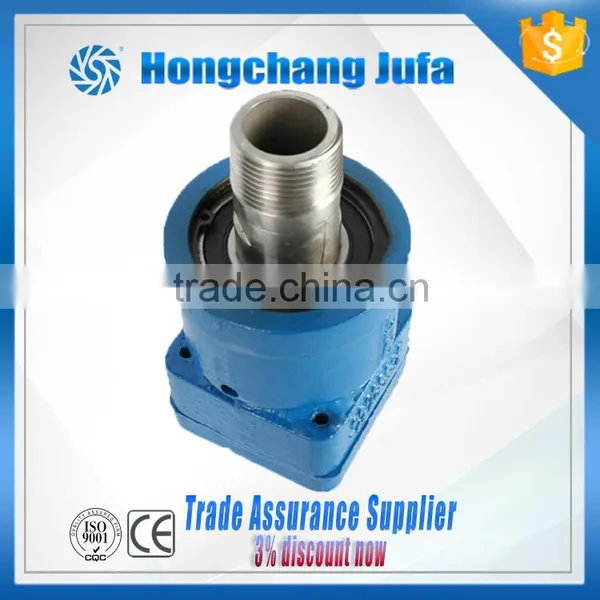

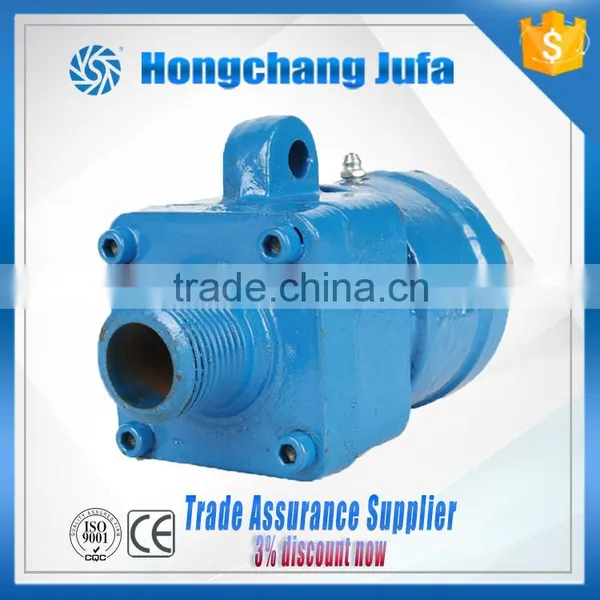

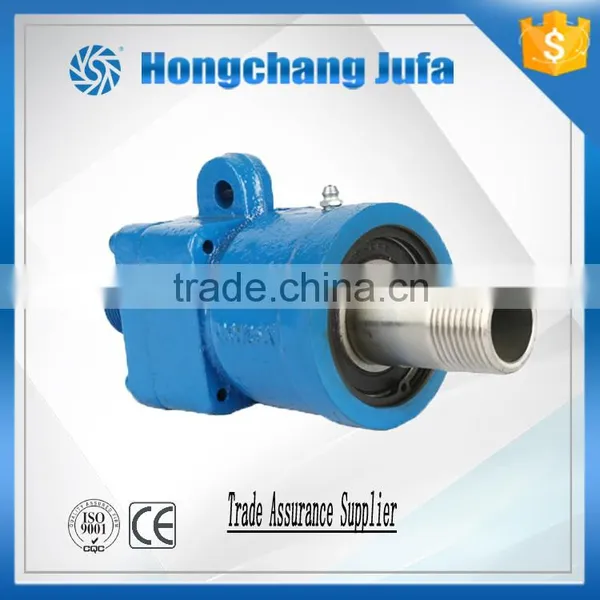

Product show
Germany Types of pipe joints Long life coolant chiksan swivel joint
FAQ
Q1: What is the Warranty for the rotary joint?
A1: For the rotary joint, we have 1 year warranty. We replace the assemble for you for free.
Q2: What is the delivery time
A2: For the rotary joint, we have many size available in stock. Delivery time could be 3 to 7 days if normal size
Q3: Could you provide custom size product for us?
A3: We welcome custom size and can arrange the production according to your drawing or request.
Q4: What kind of media that your rotary joint can used for?
A4: We have different kinds of rotary joints for water, hot oil, steam and air.
Q5: What kind of seal you use for to guarantee the good sealing performance?
A5: We use graphite seal, mechanical seal and spherical seal with good sealing performance.
Q6: Can we only buy some assemble of the rotary joint?
A6: Yes, we can provide you with the seal, spring or other assemble.
Q7:Is there cheap shipping cost to import to our country?
A7: For small order,express will be best.And for bulk order,sea ship way is best but take much
time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q8:Can we get support if we have our own market position?
A8: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

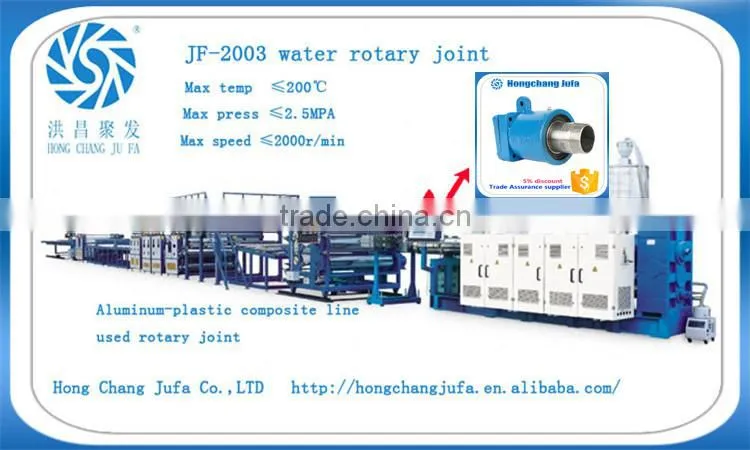

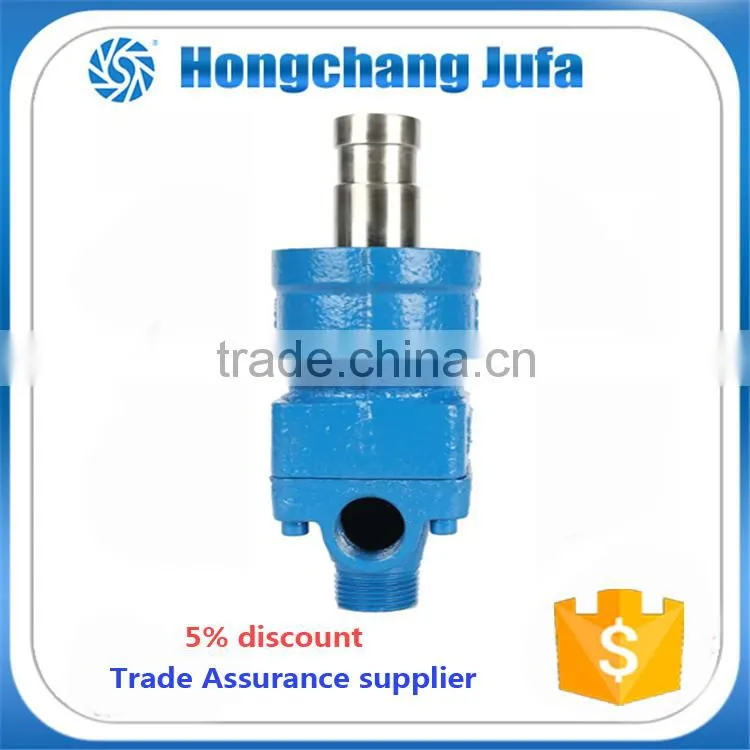

Another kind of rotary joint
Foshan Nanhai Hongchang Jefer Electromechanical Valve Co.,Ltd is a factory set up in 2006. We are specializing in researching, developing and manufacturing different kinds of rotary joints, flexible metal hose, rubber hose , bellow expansion joint and valve equipment in China.
Our factory is covering over 10,000 square meters. Our R&D department consists of 3 engineers. Also, we have experienced QC personnel to check all our products strictly before packaging . All of our products meet the national standards and have pass ISO9001 certification. We obtain trust from customers by advanced technology, excellent quality and satisfactory service. Also, we specialized in customized rotary joints tailored to meet your project requirements.
Our mission is: Offering high-quality goods, excellent service, and reasonable price to customers; Using our product, you will get more benefits!
