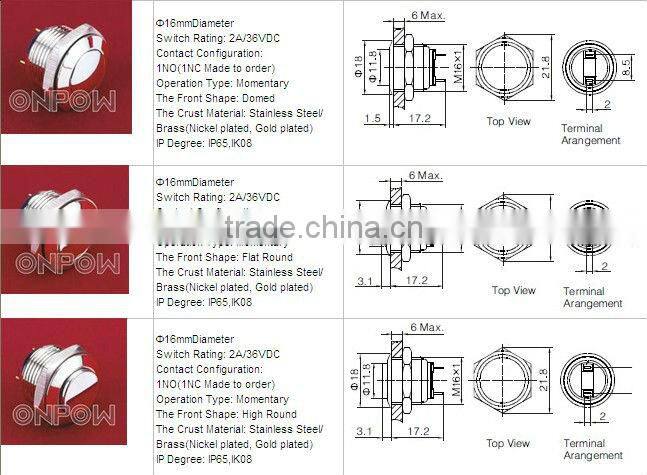

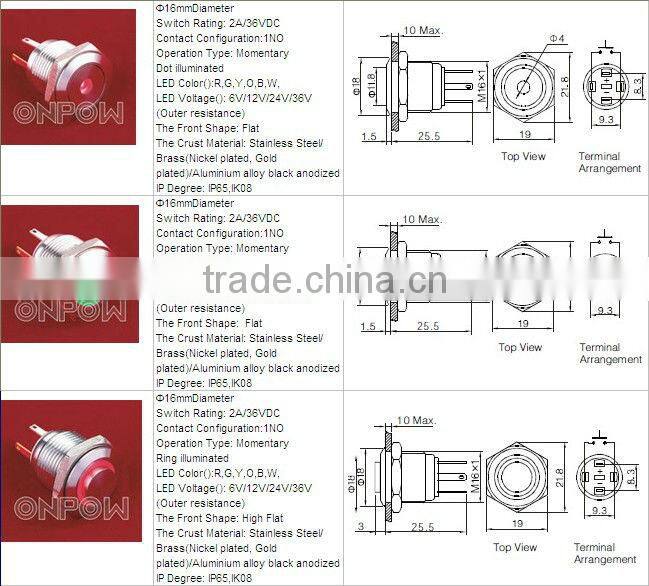

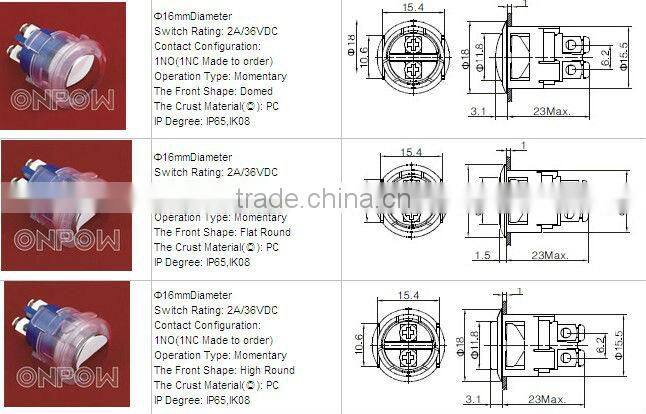

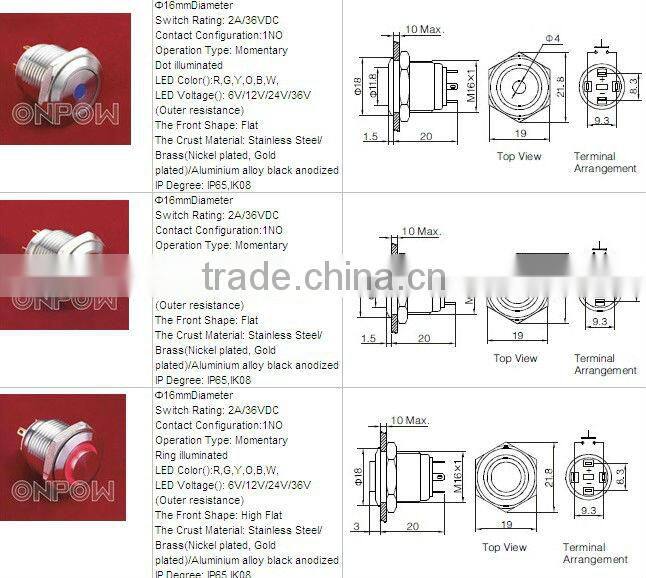

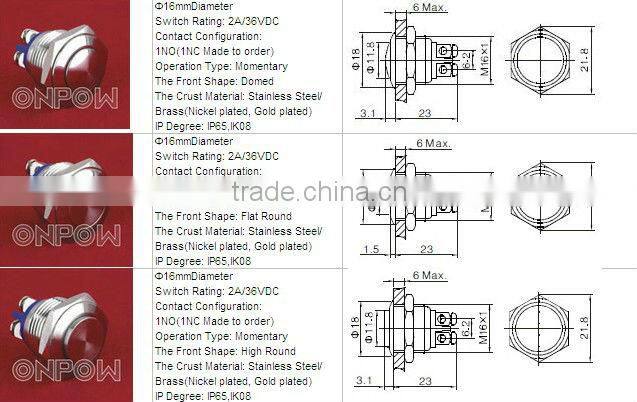

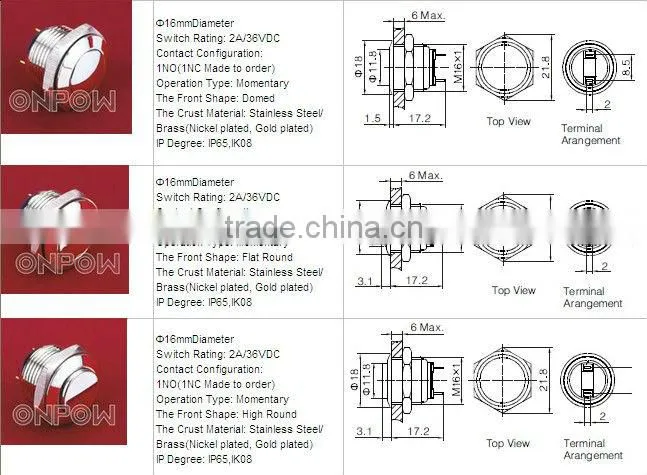

ONPOW Pushbutton Switch(GQ16 Series,16mm,CE,ROHS,REACH,IP65,Anti-vandal,stainless Steel)

Specifications

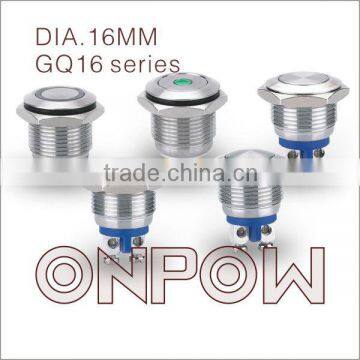

ONPOW GQ16 series,16mm pushbuttons.push button switch, anti vandal push button switch.

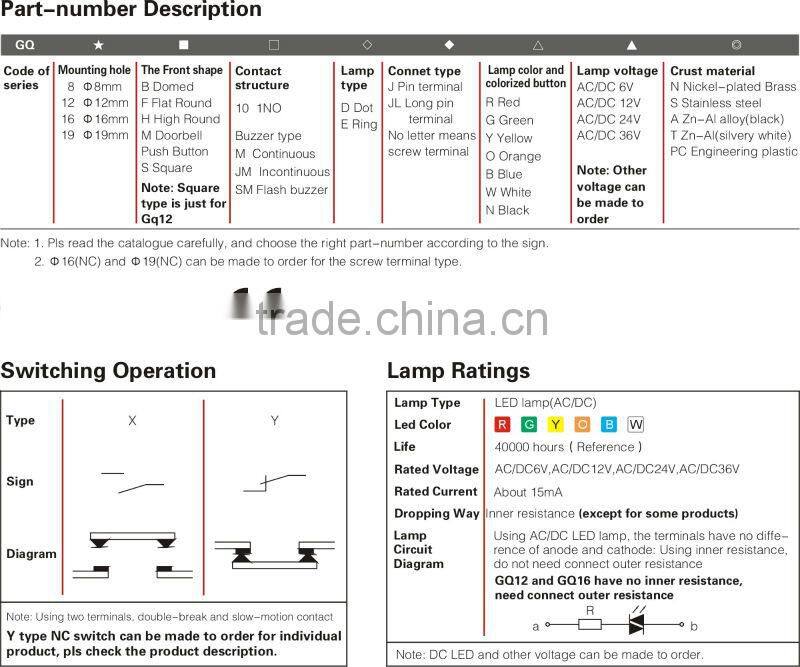

  Note: 1. Pls read the catalogue carefully, and choose the right part-number according to the sign.
2. Φ16(NC) and Φ19(NC) can be made to order for the screw terminal type.

Specifications:

1) Rated: 2A/48V

2) Electrical life: 200,000 cycles

3) Mechanical life: 1,000,000 cycles

4) Electrical function: off (on)

5) Panel thickness: 1 - 6mm

6) Contacts: silver

7) Bushing:

a) Nickel-plated brass b) Gold-plated brass c) Stainless steel d) Aluminium alloy black anodized

8) Actuator:

a) Nickel-plated brass b) Gold-plated brass c) Stainless steel

9) Panel cut-out: 16mm

10) IP rate: IP65

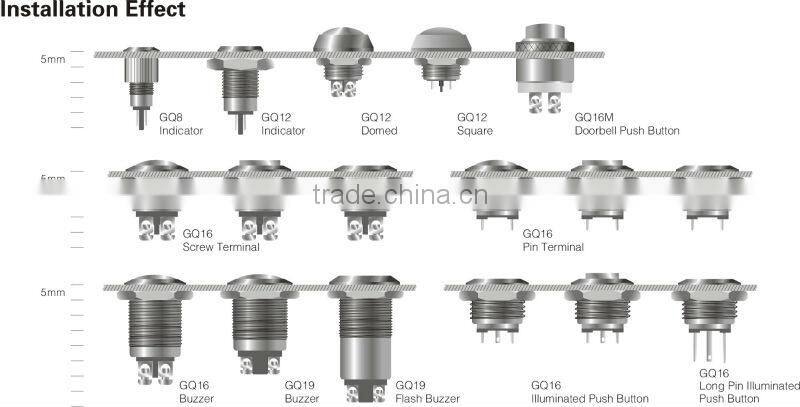

ONPOW other series push button switches

Package: 40pcs/box, 1000pcs/carton
