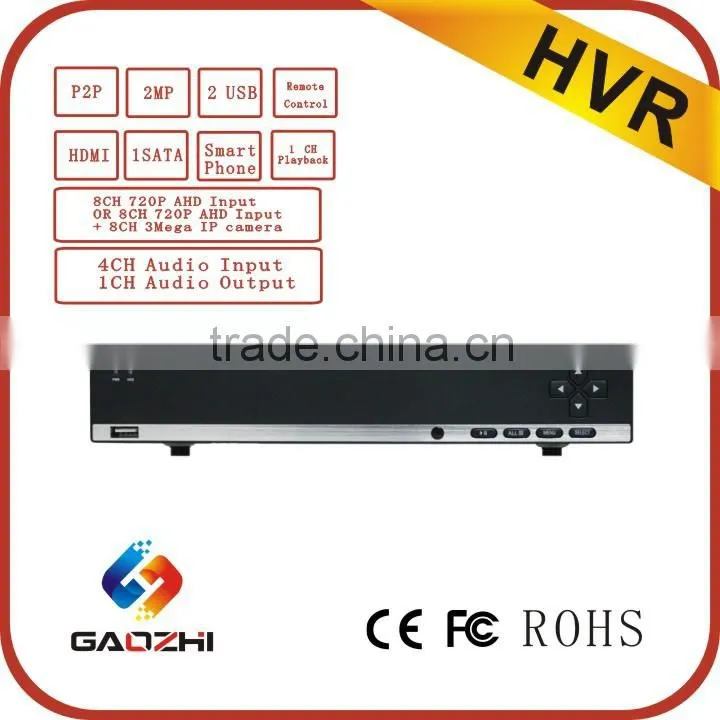

8CH POE P2P HVR
* With P2P funciton;
* 8CH 720P AHD input or 8CH 720P AHD input + 8CH 3Mega IP camera;
* 1/8 CH of analog playback or 1CH of IP playback;
* Supports dual stream;
* Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;
* 4CH audio input, 1CH audio output;
* 2 USB2.0 ports, 1 SATA2.0 HDD port(up to 4000G);
* Supports IR remote control;
* 1 RS-485 port;
* Supports smart phone real time remotely monitoring, such as iPhone,Android;
* Provide IE Activex,CMS, iView HVR APP management software.

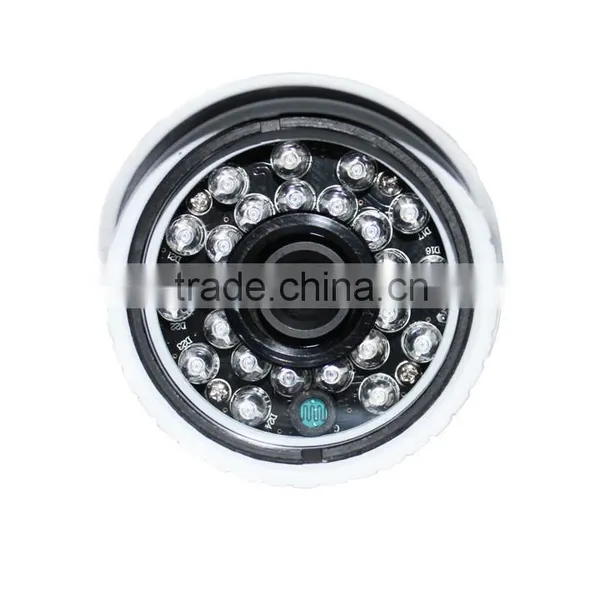

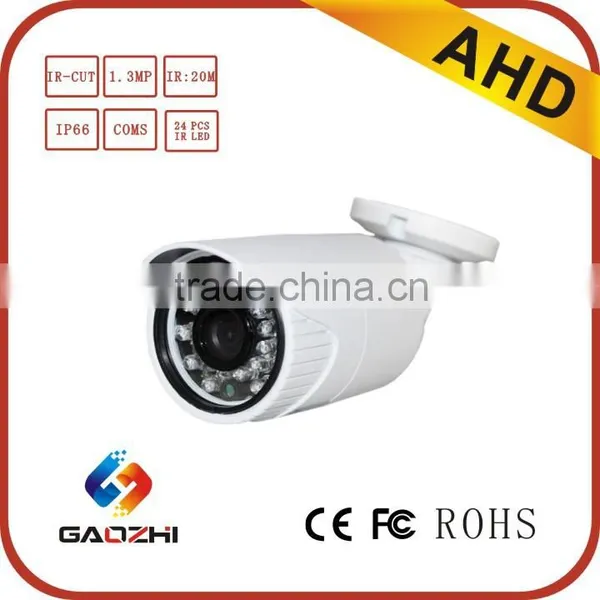

720 P Anolog AHD Bullet Camera
*1/4" Aptina low illumination CMOS Sensor/1MP/720P, with IR CUT;
*AR0141+NVP2431; *3.6mm lens; *24pcs IR LED; *IR Distance : 20m;
*With 3-Axis bracket; *Waterproof IP66 ; *Grey/White color optional;
*Size:175(L)*59W)*64(H)/mm; *G.W:0.4KG;
| Specification | |
| Model | GZ-AHD3130-B310X-P |
| Sensor | 1/4" 1.0Megapixel CMOS |
| Electronic Shutter | 4/25s~1/45,000s |
| Synchronization | Internal |
| Signal Mode | PAL/NTSC |
| Effective Pixel | 1280H*720V |
| Noise Reduction | 2D/3D |
| Min. Illumination | 0.01LUX F1.2(AGC ON),0Lux IR on |
| Lens | M12 2.8mm/3.6mm/6mm/8mm |
| Video Standard | Comply with HD-AHD |
| Video Frame Rate | 1280×720 25 fps;1280×720 30 fps |
| Video Output | 1-channel BNC HD-AHD video output |
| Day/Night | Auto(ICR)/Color/Black |
| Max. Transfer distance | Normal 75-3 coaxial cable up to 500m |
| Working Temperature | -20℃~+50℃,Less than 95%RH (No condensation) |
| Power | DC12V±10 |

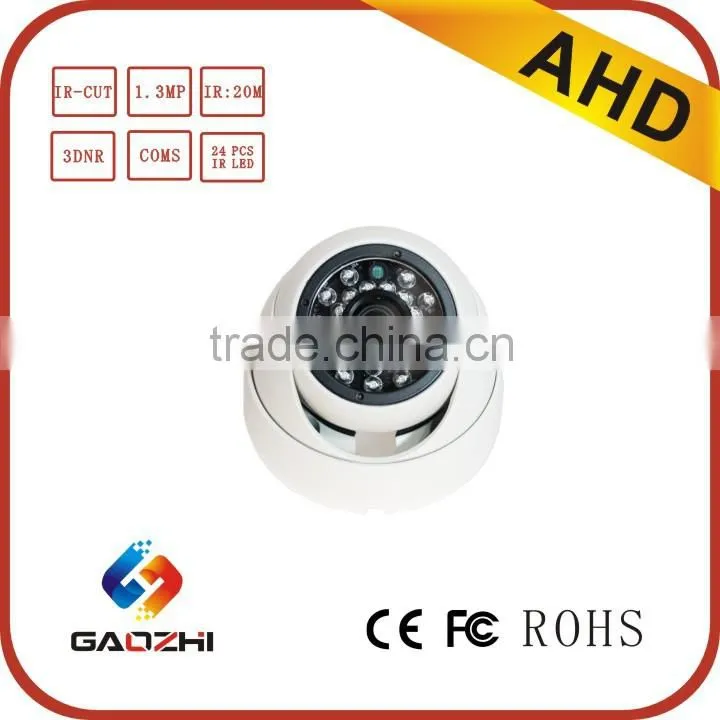

720 P Anolog AHD Dome Camera
* 1/4" Aptina low illumination CMOS Sensor/ * 1MP/720P, with IR CUT
* AR0141+NVP2431 * 3.6mm fixed lens, * 24pcs IR LED,
* IR: 20 meters * Plastic case
Size:93(D)*76(H)/mm *G.W:0.2KG
| pecification | |
| Model | GZ-AHD3130-DP61AP-P |
| Sensor | Color High Quality CMOS |
| Illumination | Color 0.05 Lux F1.2(AGC ON) 1.0 MP Low Lux |
| Resolution | 720p |
| Scanning system | PAL/NTSC |
| Sync System | Internal |
| IR-CUT | Yes |
| Day & Night Mode | Auto switch from colour to B/W |
| Video Output | 1.0Vp-75Ω |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| S/N Ratio | >58db |
| Electronic Shutter | 1/50(1/60)~1/100000sec |
| Lens Mount | C/CS/M12 |
| Power | DC12V±10 |
| Working Temperature | -20℃~+50℃,Less than 95%RH (No condensation) |
User interface (Auto Add IP Cameras)------Easy to use
Support real time view (PC,IOS, Android)
