Help CenterONPOW 16mm Waterproof Ring LED Black Aluminium Alloy Push Button Switch (GQ16F-10E/J/G/2.8V/A) CE, RoHS
Related Products
-
ONPOW 16mm Spot LED Aluminium Alloy Black Anodized Push Button Switch With Long Pins (GQ16F-10D/JL/R/1.8V/A) CE, RoHSUS$ 2.8 - 3.3MOQ: 1 Piece -
ONPOW 16mm Dot LED Momentary Waterproof Black Aluminium Push Button Switch (GQ16F-10D/J/R/1.8V/A) CE, RoHSUS$ 2.8 - 3.3MOQ: 1 Piece
-
ONPOW 16mm High Round Cap IP65 Vandal Resistant Metel Push Button Switch ( GQ16H-10/J/A) CE, RoHSUS$ 1.9 - 2.3MOQ: 1 Piece
-
ONPOW 16mm Flat Head Vandal Resistant Metel Black Aluminium Push Button Switch With 1NO Contact ( GQ16F-10/J/A) CE, RoHSUS$ 1.9 - 2.3MOQ: 1 Piece
-
ONPOW 16mm 1NO Domed Head Metal Black Aluminum FINISHED Push Button Switch With IP65 ( GQ16B-10/J/A) CE, RoHSUS$ 1.9 - 2.3MOQ: 1 Piece
ONPOW Push Button Manufacture Co.,Ltd. is currently one of the leading, fast developing manufacturer of push button switches and indicators.
- Founded in 1988 and experienced in the field of pushbutton switches for 27 years

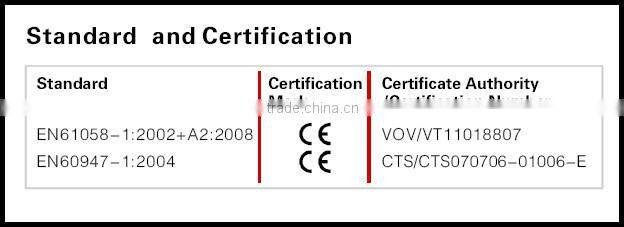

- Certification:we have passed ISO9000 Quality Management System and UL,VDE,CE(LVD),CE(EMC),PSE,CCC,ROHS,REECH
- More than 40 patents
- About 40 series of pushbutton switches and 1-2 new series of production developed each year
- Over 1500 molds available for production
-Registered Fund: About 50 million RMB
Model Number | GQ16F-10E/J/G/2.8V/A | |

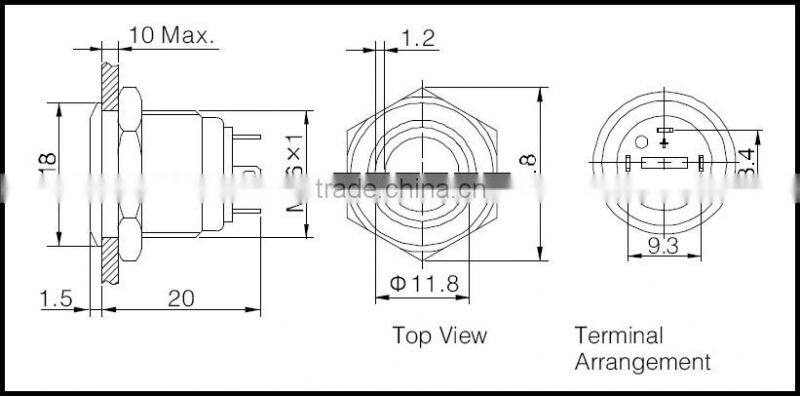

Mounting hole size | 16mm Diameter | |
Switch Rating | 2A / 36VDC | |
Contact Configuration | 1NO | |
Operation Type | Momentary | |
LED Color | Green (other options: Blue, Red, Yellow, Orange, White, Black) | |
LED Voltage | 2.8V 6V/12V/24V/36V(Outer resistor) | |
Head Shape | Flat | |
Crust Material | Aluminium alloy black anodized | |
IP Degree | IP65 | |
| ||
Terminal Type | Pin terminal (2*0.5mm) | |
Switching | x(double-break slow-motion contact) | |
Panel Thickness | 1~6mm | |
Torque | 5~14Nm | |
Mechanical Life | 1,000,000 cycles | |
Electrical Life | 200,000 cycles | |
Operation Pressure | About 4N | |
Operation Travel | About 2.5mm | |
Material
| Button | Aluminium alloy black anodized |
Body | Aluminium alloy black anodized | |
Base | PBT | |
Packing: switches with high flat button
1. Neutral packing : 40 pcs/box, 25boxes/carton
2. Upon customers' request, but the price is different with neutral packing
3. Carton size: 30*50*35 cm
Shipping: switches with high flat button
1. DHL, TNT, Fedex, UPS and other international express.
2. By air or by sea.
ONPOW other series push button switch and indicator:
If you need more information please contact us:
Puma chen ( ITD Manager)
ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Tel: +86-577-62628788 // MT: 86-13587700386 // Fax: +86-577-62623304
Website: http://hongbo.en.china.cn
SKYPE: QQ:21660204
Work time: 8:0-11:30 13:00-17:30(Except Sunday)
