30 Years Industry Leader ONPOW Metal Push Button Switch GQ22A-11E/S Dia. 22mm Ring Illuminated Stainless Steel IP67 CE ROHS

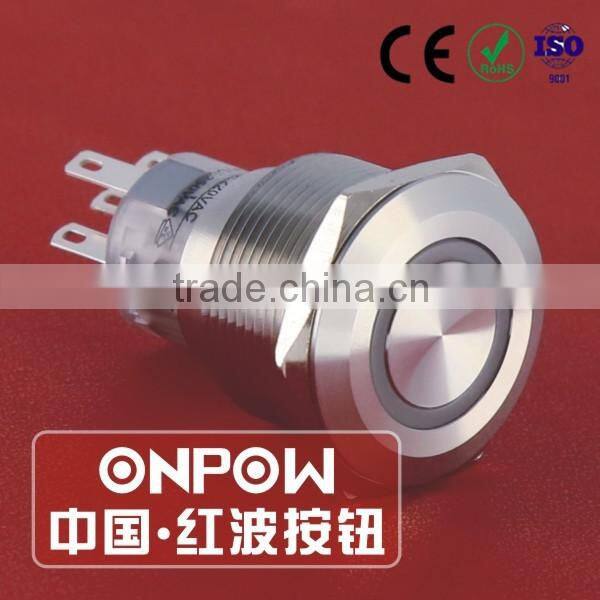

30 Years Industry Leader ONPOW Metal Push Button Switch GQ22A-11E/S Dia. 22mm Ring Illuminated Stainless Steel IP67 CE ROHS photo-1
US$ 5.8 - 7.3 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ONPOW
Model Number:
GQ22A-11E/S
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI / NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name ONPOW
Model Number GQ22A-11E/S
Protection Level IP67, IK09
Max. Current 5A
Max. Voltage 250V

30 Years Industry Leader ONPOW Metal Push Button Switch GQ22A-11/S Dia. 22mm stainless steel waterproof CE ROHS

Why choose us?

ONPOW Push Button Manufacture Co.,Ltd. is currently one of the leading, fast developing manufacturer of push button switches and indicators.



- Founded in 1988 and experienced in the field of pushbutton switches for 27 years

- Certification:we have passed ISO9000 Quality Management System and      UL,VDE,CE(LVD),CE(EMC),PSE,CCC,ROHS,REECH

- More than 40 patents

- About 40 series of pushbutton switches and 1-2 new series of production developed each year

- Over 1500 molds available for production

-Registered Fund: About 50 million RMB


 30 Years Industry Leader ONPOW Metal Push Button Switch GQ22A-11E/S Dia. 22mm ring illuminated stainless steel IP67 CE ROHS

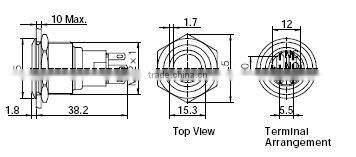

Dimension

 30 Years Industry Leader ONPOW Metal Push Button Switch GQ22A-11E/S Dia. 22mm ring illuminated stainless steel IP67 CE ROHS





Product Description





Model Number

 GQ22A-11E/S

Mounting hole size

22mm Diameter

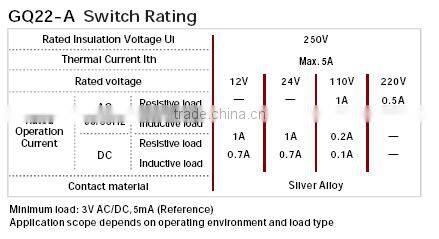

Switch Rating

5A / 250V

Contact Configuration

1NO1NC(2NO2NC)

Operation Type

Momentary(Latching)

Head Shape

Flat

Illuminated Type

Ring illuminated

LED Color

red,green,yellow,orange,blue,white

LED Voltage

6V/12V/24V/110V/220V other voltage can be made to order

Crust Material

Stainless steel

IP Degree

IP67



Terminal Type

Pin terminal(2.8×0.5mm)

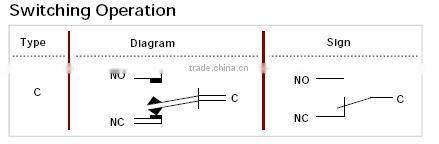

Switching

C(single-break quick-motion

contact)

Panel Thickness

1~10mm

Mechanical Life

1,000,000 cycles

Electrical Life

50,000 cycles

Operation Pressure

About 2N(1NO1NC)



About 3N(2NO2NC)

Operation Travel

About 3.1mm



Material



Button

Stainless Steel

Body

Stainless Steel

Base

PBT



 30 Years Industry Leader ONPOW Metal Push Button Switch GQ22A-11E/S Dia. 22mm ring illuminated stainless steel IP67 CE ROHS30 Years Industry Leader ONPOW Metal Push Button Switch GQ22A-11E/S Dia. 22mm ring illuminated stainless steel IP67 CE ROHS



30 Years Industry Leader ONPOW Metal Push Button Switch GQ22A-11E/S Dia. 22mm ring illuminated stainless steel IP67 CE ROHS



  30 Years Industry Leader ONPOW Metal Push Button Switch GQ16F-10D/L/S Dia. 16mm ring illuminated CE ROHS



Packaging & Shipping

Packing:

1. Neutral packing : 40 pcs/box, 25boxes/carton

2. Upon customers' request, but the price is different with neutral packing

3. Carton size: 30*50*35 cm



Shipping:    switches with high flat button

1. DHL, TNT, Fedex, UPS and other international express.

2. By air or by sea.
