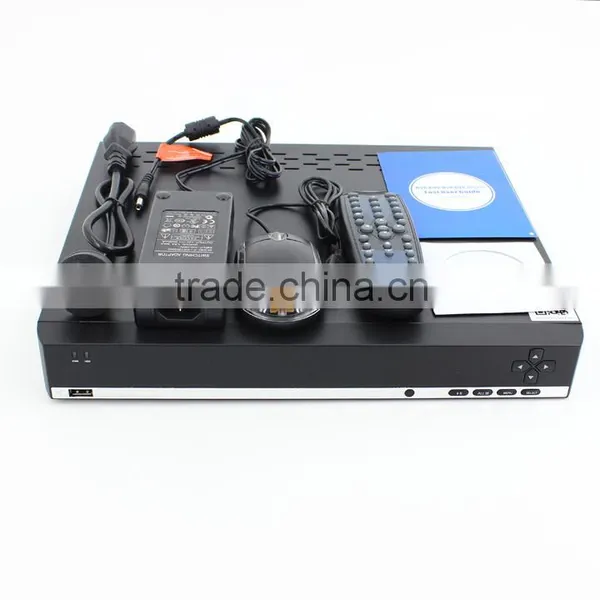

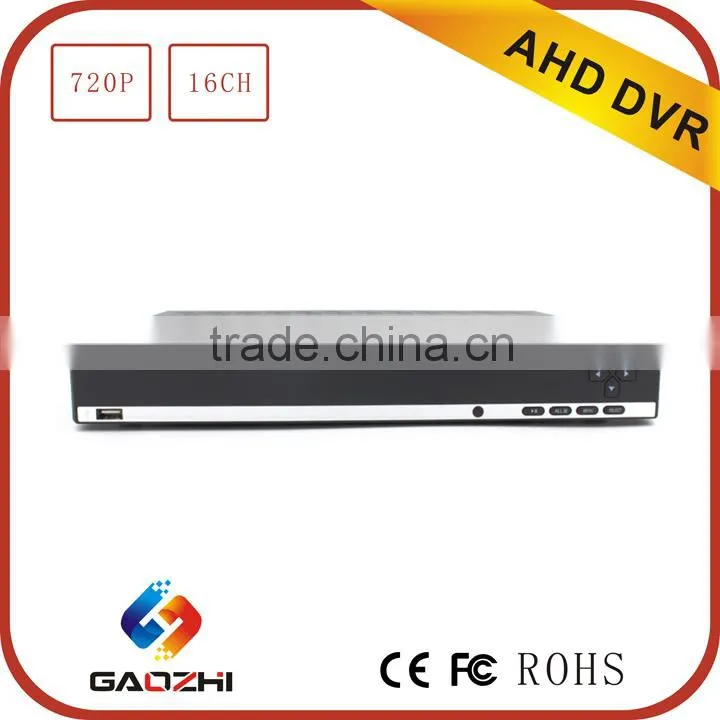

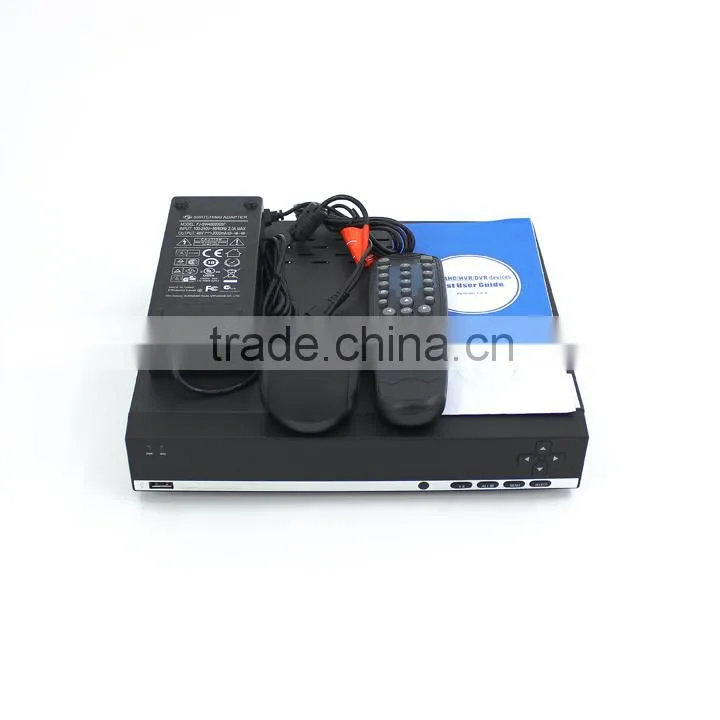

wholesale price!! P2P 3 input in 1 dvr 720P 16CH AHD dvr h264 cms free software
* H.264 high profile compression;
* 16CH 720P AHD input or 16CH 720P AHD input + 8CH 3Mega IP camera
* 4CH of analog playback or 1CH of IP playback
* Supports dual stream;
* Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;
* 1 CH audio input, 1CH audio output;
* 2 USB2.0 ports, 2 SATA3.0 HDD port(up to 8000G);

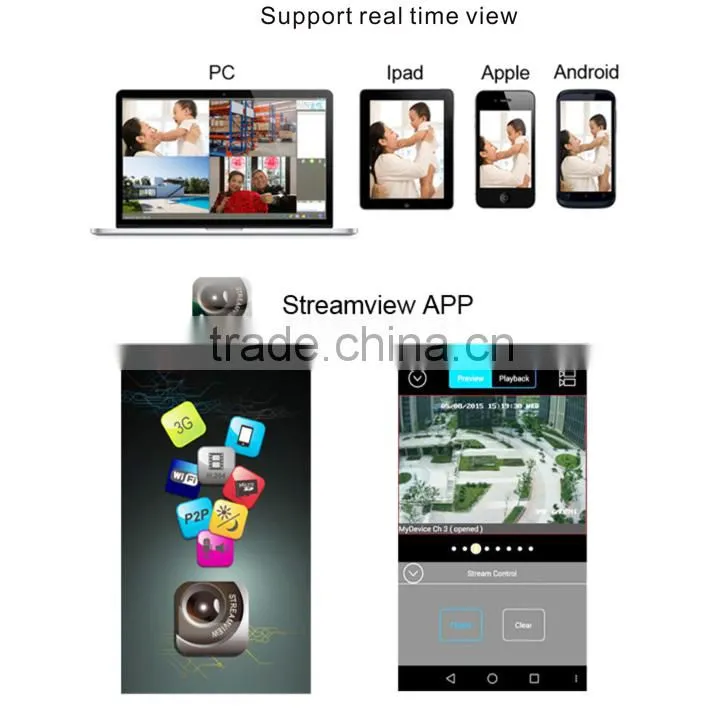

* Supports smart phone real time remotely monitoring, such as iPhone,Android;
* Provide IE Activex,CMS,StreamView APP
* Support P2P
| Specification: | |||
| System | GUI | 16-bit True Color | |
| Operating System | Embedded Linux OS | ||
| Password security | Multi-level users management, 1 Admin + 19 Users | ||
| A/V Input | Video Input | AHD camera x 16 or AHD camera x 16 + IP Camera x8 | |
| Audio Input | 1CH RCA (Linear, 1kΩ) | ||
| A/V Output | VGA output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080(1080P) | |
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080(1080P) | ||
| Spot output | NO | ||
| Loop output | NO | ||
| Audio output | 1 RCA | ||
| A/V encoding parameters | Video compression | H.264 High Profile | |
| Video standard | PAL/NTSC | ||
| Stream type | Video& Audio/Video | ||
| Video frame rate | Pal:1-25FPS, NTSC:1-25FPS | ||
| Maximum frame rate | 16CH 720P AHD : 400FPS 16CH 720P AHD +8CH IP: 400FPS+200FPS |
||
| Video bit rate | AHD: 384kbps-3072kbps IP:1536kbps-8192 kbps | ||
| Dual Stream Resolution (Pixel) | Main Stream (Recording) :IPCam:3M,1080P,720P ; Analog:AHD:1280x720 ,960H: 960x576(480) | ||
| Sub Stream (Network):1/4 Main Stream | |||
| Record mode | Manual,Schedule,Motion | ||
| Video search | Date/time, Event | ||
| Display | 1/4/8/9/16/25/SEQ optional | ||
| Audio compression | 8K*16bit ADPCM | ||
| Audio bit rate | 32Kbps | ||
| Recording & playback performance | A:16CH 720P AHD 400FPS recording + 4 CH 100FPS playback ; B:16CH 720P AHD 400FPS recording + 8CH 3Mega IP 200FPS recording, 4CH AHD 720P 100FPS playback or 1CH 3Mega 25FPS playback |
||
| HDD | SATA Devices | 2 x SATA HDD | |
| Maximum capacity | 8TB | ||
| External HDD | without e-sata | ||

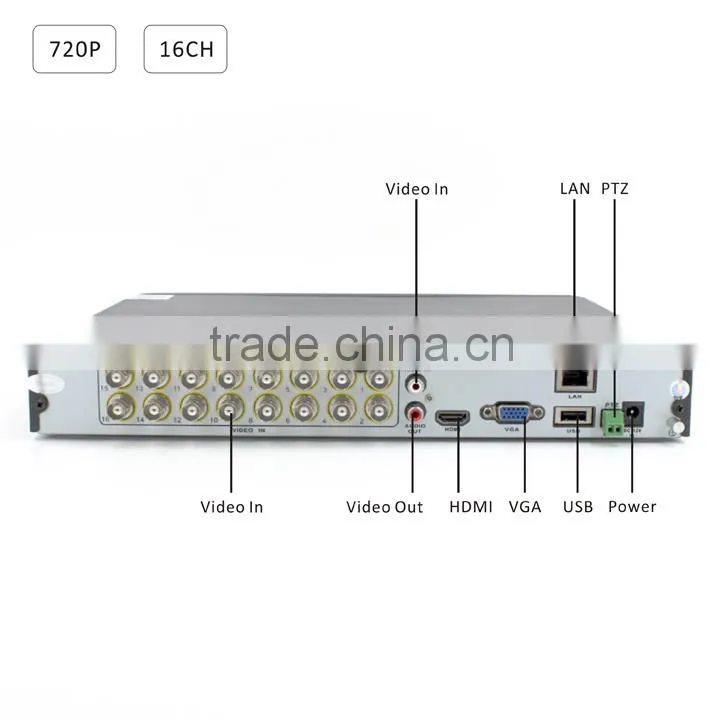

| External Interface | USB Connector | 2 x USB2.0 | |
| Serial Interface | 1RS-485 serial port | ||
| 2 way audio (voice talk) | NO | ||
| Alarm input/output | Optional | ||
| Network Interface | RJ 45,10M/100 M /1000M Ethernet | ||
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Onvif,P2P | |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad | ||
| System Upgrade | Supports USB update | ||
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser | ||
| General | Power Supply | Input 100~240V, Output 12V 3A | |
| Consumption | <10W without HDD | ||
| Working temperature | -10℃~+55℃(14°F~131°F) | ||
| Working humidity | 10%~90% | ||
| Dimension ( mm ) | 330(W) x 45(H) x 260(D) | ||
| Weight ( w/o HDD/DVD±RW ) | 3kg | ||
Hunan Gaozhi Science and Technology Co. Limited is a High technology company with the registered capital of 4 million USD, Offer satisfactory ODM,OEM service in Security & Surveillance Field.
1.R&D Team
About 50 R&D engineers, most are from Huawei and Key members specialized for 11years . Also more than 10% of annual profits was invested .New products come out continuously with New feature& good performance.
2.Main products
AHD Camera / recorder include 720P,960P,1080P
Used in engineering projects due to low cost .
Hybrid DVR support analog/ahd/ipc 3 input,
No need change cable when upgrade the video resolution.
IP camera / NVR ---Include POE and WIFI
Mainly use for Home, office , Small shop for easy installation & High quality of Video picture.
3.Primary Advantage
1.Excellent & Stable quality approved by Famous distributor
2.Big Capital-Supported by Government,
3.Strong R&D team, customized service .
4.2-years quality guarantee
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition. )
