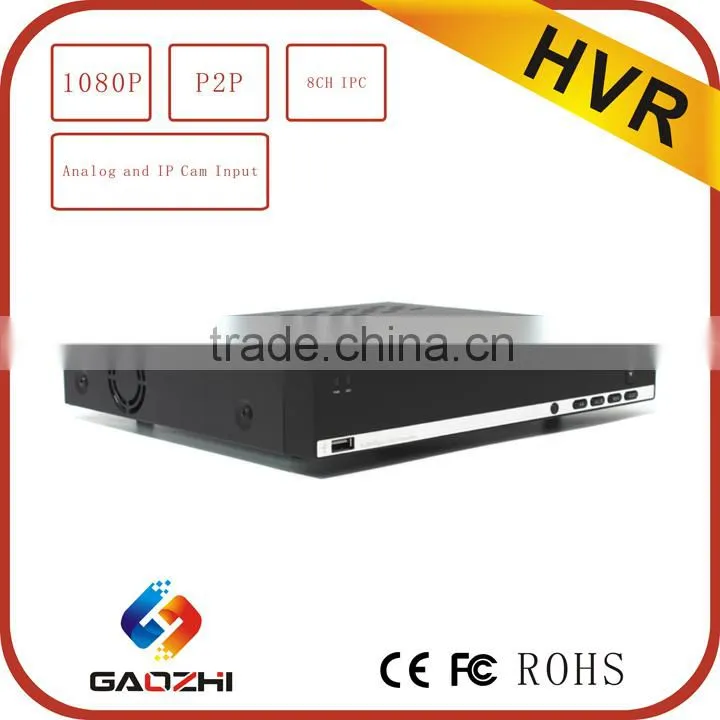

8CH Hybrid DVR--960H Analog /1080p IPC 2 in 1 CCTV HD HVR system
* H.264compression format;
* 8CH 960H analog input;
* 4CH analog replay or 1CH network replay;
* Dual video stream; * Support VGA ( Max resolution 1080p ) , HDMI (Max resolution 1080p)sync output;
* 4CH audio input, 1 CH audio output;
* 2 USB2.0 port, 1 SATA2.0 HDD(up to 4000G);
* Support IR remote control;
* 1 RS-485 port;
* Support phone real time remote surveillance such as iPhone,Android;
* Provide IE Activex,CMS, iView NVR APP management software.
| Specifications | ||
| AV Input | Analog Video Input | 8CH,BNC |
| Audio Input | 4CH,RCA | |
| AV Parameters | Video Compression | H.264 |
| Resolution | 960H/D1 | |
| Frame Rate | * 120fps@960H analog or 240fps@D1 analog | |
| Main Stream ( Recording) | * Analog:960x480(960H), 704x480(NTSC),704x576(PAL) | |
| Sub- Stream (Remote Control) | 1/4 Main Stream | |
| Recording& Playback | Recording Device | 1 SATA,4TB |
| Recording( Capture Mode) | Manual recording, Plan Recording, Motion detetion | |
| Backup Device | External USB, HDD, eSATA HDD | |
| Scyn Playback | Max 4CH | |
| Playback Mode | Real time playback, normal playback, event playback | |
| Zoom Display | Digital Zoom ( x2 ~ x6) | |
| Playback Control | Playback, Pause, Stop, Slow motion(1/2, 1/4, 1/8,1/16), Speed up (2,4, 8, 16), Backward(2,4, 8, 16), Playback fps | |

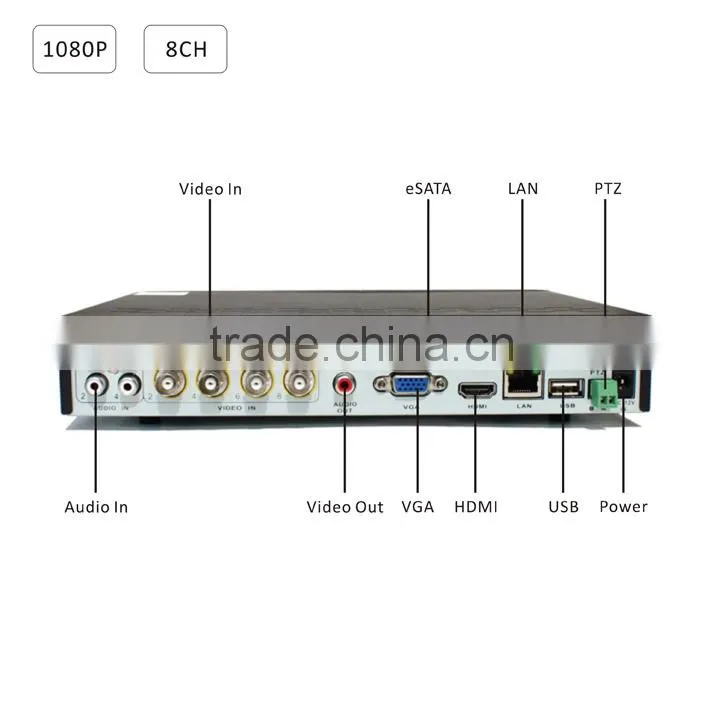

| Interfaces | Audio Input | 4 RCA |
| Audio Output | 1 RCA | |
| Analog Video Input | 8 BNC | |
| Video Output | 1 VGA,1 HDMI | |
| Network | 1 RJ45 10M/100M | |
| Power | 1 DC 12V | |
| eSATA | 1 eSATA | |
| USB | 2 USB2.0 | |
| PTZ | 1 unit | |
| Other | Dimension | 260(W) x 41(H) x 230(D) |
| Weight(excluding Hard disk) | 1.8kg | |
User interface (Auto Add IP Cameras)------Easy to use
Support real time view (PC,IOS, Android)
Company Profile :
Hunan Gaozhi Science and Technology Co. Limited is a High technology company with the registered capital of 4 million USD, Offer satisfactory ODM,OEM service in Security & Surveillance Field.
1.R&D Team
About 50 R&D engineers, most are from Huawei and Key members specialized for 11years . Also more than 10% of annual profits was invested .New products come out continuously with New feature& good performance.
2. Main products
AHD Camera / recorder include 720P,960P,1080P
Used in engineering projects due to low cost .
Hybrid DVR support analog/ahd/ipc 3 input,
No need change cable when upgrade the video resolution.
IP camera / NVR ---Include POE and WIFI
Mainly use for Home, office , Small shop for easy installation & High quality of Video picture.
3.Primary advantage
1.Excellent & Stable quality approved by Famous distributor
2.Big Capital-Supported by Government,
3.Strong R&D team, customized service .
4.2-years quality guarantee
FAQ
1.Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition. )
