5W~300W Solar Panel Monocrystalline and Polycrystalline

US$ 0.95 - 1.15 MOQ: 10 Units

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

TB5~300-12M-P

Guangzhou Tianhe District Longdong Doxin Electronic Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name TB

Model Number TB5~300-12M-P

Specification Normal

Application Industrial

Output Voltage (V) 17.4

Load Power (W) 5W

Solar Power (W) 340*285*23mm

Specifications

5W~300Watts mono and poly solar panel
1.High Efficiency solar Cell
2.ISO9001/ISO14001/CE/TUV/UL

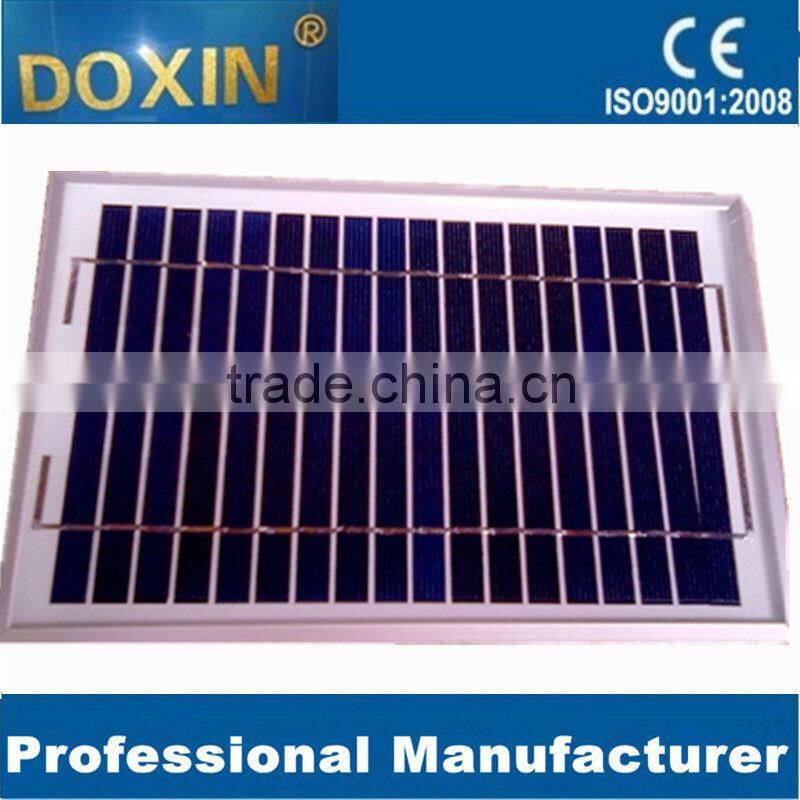

Polycrystal solar panel

Rigorous quality control meeting the highest international standards

High-transmissivity low-iron tempered glass, strong aluminium frame

Using UV-resistant silicon

ISO 9001:2008 and ISO 14001:2004

IEC61215, IEC61730, Safety Class Inconformity to CE

1. Features

Aesthetic appearance with excellent efficiency based on innovative photovoltaic technologies

Strong frame, passing mechanical load test of 5400Pa, instead of the normal 2400Pa,to withstand heavier snow load and higher wind-pressure

2. Electrical Characteristics,Mechanical Characteristics and Temperature Coefficient Features. 5w poly solar panel

ITEM NO	TB5-12M
MONO or POLY	MONO
Maximum power (Wp)	5w
Maximum power voltage (V)	17.4
Maximum power current (A)	0.31
Open circuit voltage (V)	21.6
Short circuit current (A)	0.318
Number of cells (Pcs)	18
Size of module (mm)	25020023mm
Maximum system voltage (V)	715
Temperature coefficients of Isc (%)	0.065+/-0.015%/°C
Temperature coefficients of Voc (%)	-(2.23+/-0.1) / °C
Temperature coefficients of Pm (%)	-(0.5+/-0.05)/ °C
Temperature coefficients of Im (%)	+0.1/ °C
Temperature coefficients of Vm (%)	-0.38/ °C
Temperature Range	-40°C~+85°C
Tolerance Wattage (e.g. +/-5%)	+/-5%
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Weight per piece (kg)	1
Junction Box Type	GY-BOX-5C
Length of Cables (mm)	None
Cell Efficiency (%)	>16%
Module Efficiency (%)	>13.2%
Output tolerance (%)	+/-5%
Frame (Material, Corners, etc.)	Aluminum
Standard Test Conditions	AM1.5 100mw/cm2 25°C
Warranty	5 years product warranty and 25years 80% of power
Eff (%)	18.00
