250w Pvc Wall Roof Panel Lighting Mono Solar Panel With Low Price High Quality

250w Pvc Wall Roof Panel Lighting Mono Solar Panel With Low Price High Quality photo-1
250w Pvc Wall Roof Panel Lighting Mono Solar Panel With Low Price High Quality photo-2

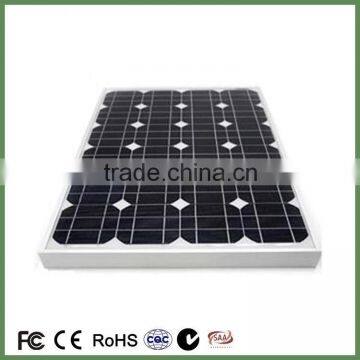

250w Pvc Wall Roof Panel Lighting Mono Solar Panel With Low Price High Quality photo-3
US$ 179 - 187 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DOXIN
Model Number:
MSP-250W
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name DOXIN
Model Number MSP-250W
Material Monocrystalline Silicon
Size 1640*990*40mm
Number of Cells 96pcs
Max. Power 250W

 250w pvc wall roof panel lighting mono solar panel with low price high quality



>>Specification

250w mono crystalline solar panel

1. High efficiency solar cell

2. 10 years warranty

3. Easy to install

4. Stand heavy rain and snow



>>Feature

`Long Service Life
`High Efficiency Solar Cells
`Special Aluminum Frame Design
`High Transmission, Low Iron Tempered Glass
`Advanced Cell Encapsulation



Specifications

Model

MSP-250W

Maximum Power (Pmax)

250W

Open Circuit Voltage (Voc)

36.2V

Short Circuit Current (Isc)

9.10A

Voltage at maximum power (Vmp)

30.23V

Current at maximum power (Imp)

8.27A

No. of Cell

60 (10x6)

Weight

19.8kg

Dimensions

1640mm×992mm×40mm

Temperature Coefficient of Pm

-0.47%/K

Temperature Coefficient of Voc

-0.35%/K

Temperature Coefficient of Lsc

0.11%/K

Tolerance

0 to +5%

Cell

156mm x 156mm

NOCT

48+/-2 (118.4°F +/-3.6°F)

Operating Temperature

-40 to +85 (-40°F to +185°F)

Bypass diodes

3 diodes

Maximum mechanical load

Snow load: 5400PA(IEC Standard); Wind load: 2400Pa(IEC Standard)

Maximum series fuse rating

10A

Maximum System Voltage

1000 VDC (TÜV-EN/IEC61215) / 600VDC (UL)



>>Appliances
`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications

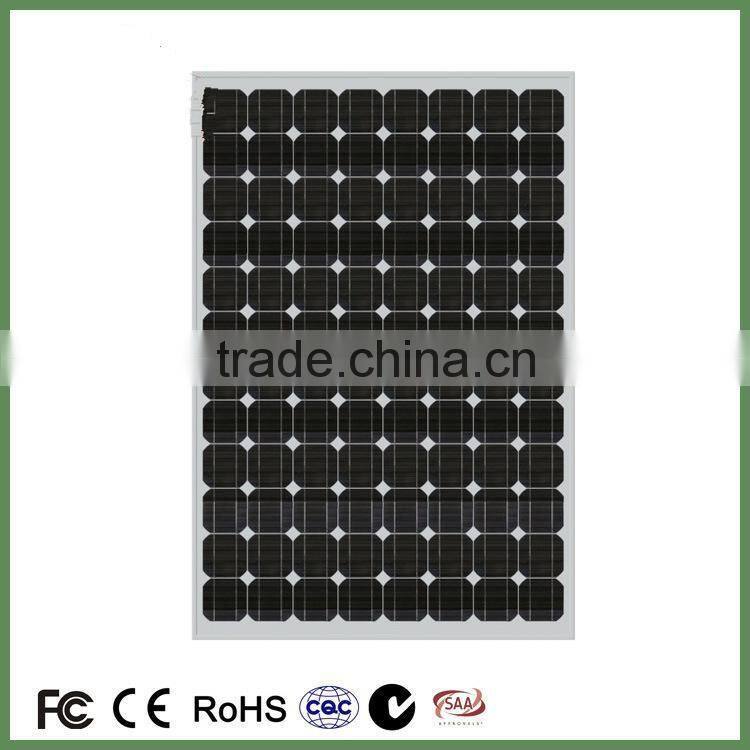

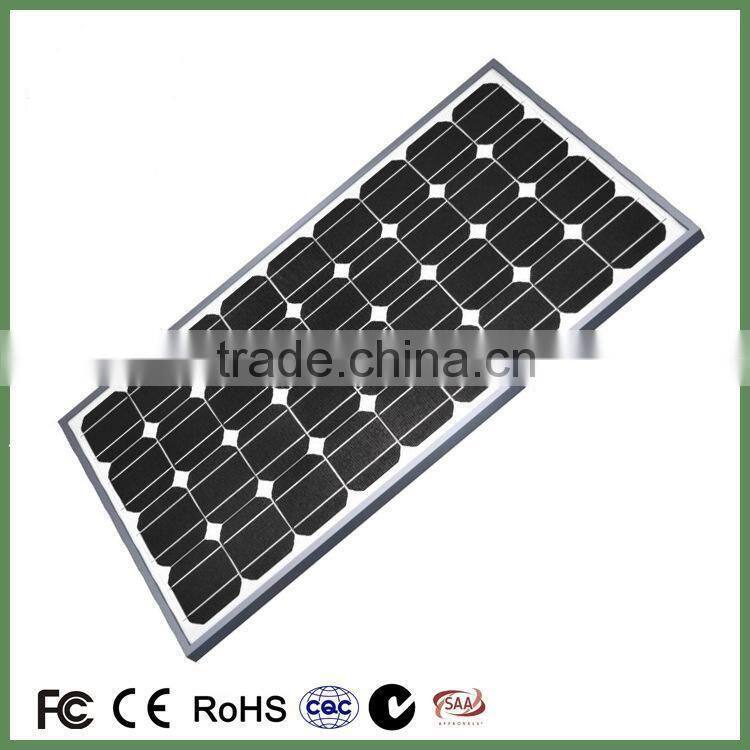

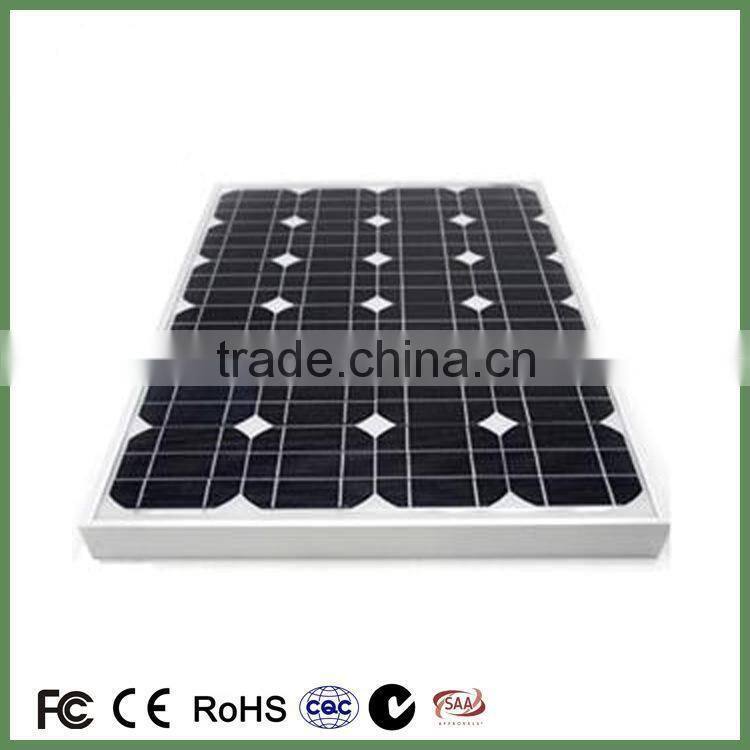

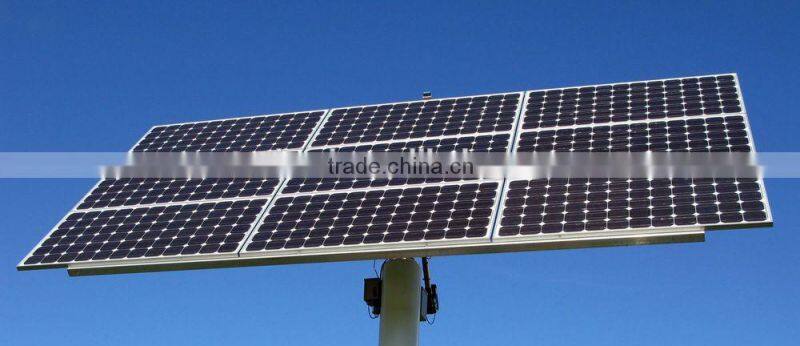

>>Product picture

250w pvc wall roof panel lighting mono solar panel with low price high quality

250w pvc wall roof panel lighting mono solar panel with low price high quality250w pvc wall roof panel lighting mono solar panel with low price high quality250w pvc wall roof panel lighting mono solar panel with low price high quality

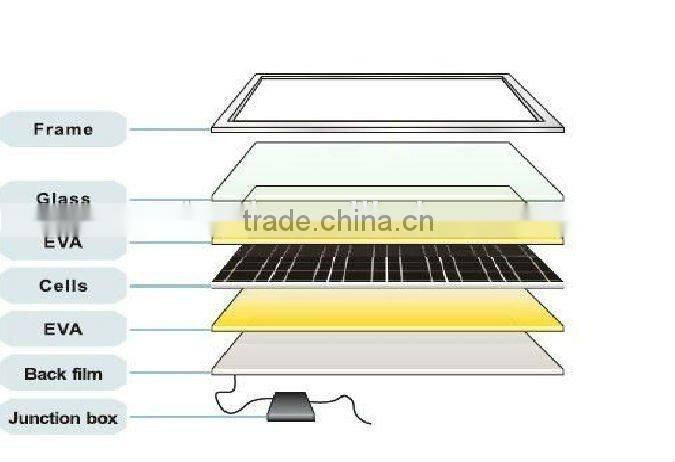

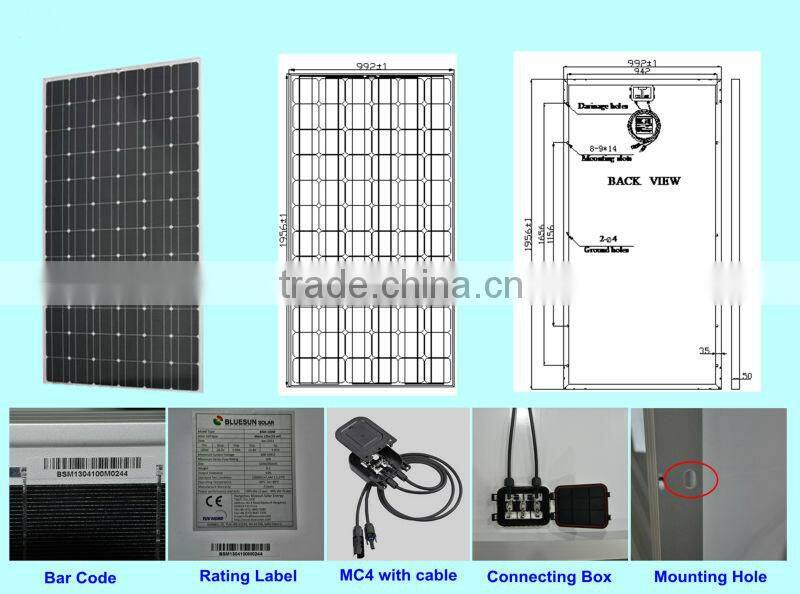

>>Struture

250w pvc wall roof panel lighting mono solar panel with low price high quality250w pvc wall roof panel lighting mono solar panel with low price high quality250w pvc wall roof panel lighting mono solar panel with low price high quality

250w pvc wall roof panel lighting mono solar panel with low price high quality

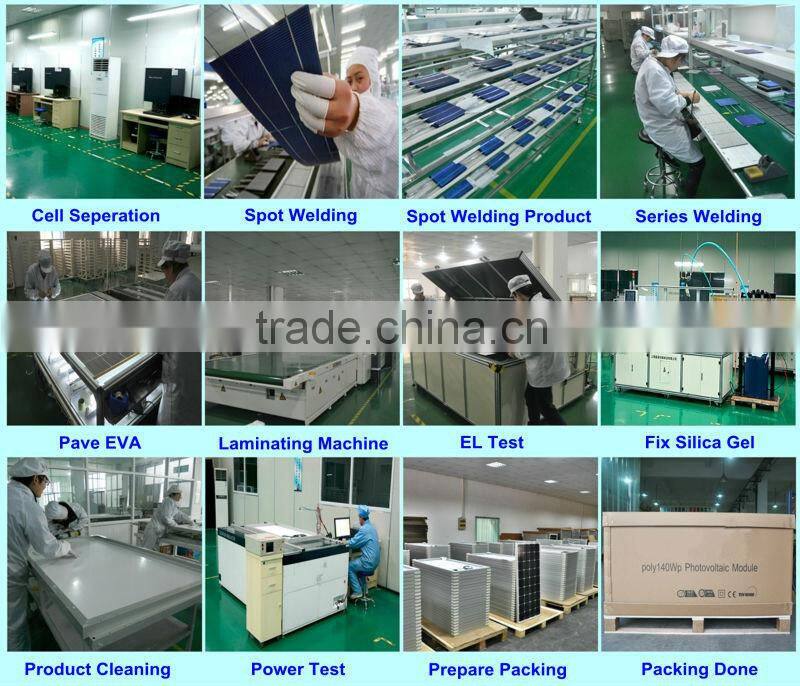

>>Technological Process

250w pvc wall roof panel lighting mono solar panel with low price high quality250w pvc wall roof panel lighting mono solar panel with low price high quality

>> Certification

250w pvc wall roof panel lighting mono solar panel with low price high quality

>>Payment & Shipping



T/T, L/C, Western Union, Paypal and Escrow are the payment methods we accept at present.





>>Important Information

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.



2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance.

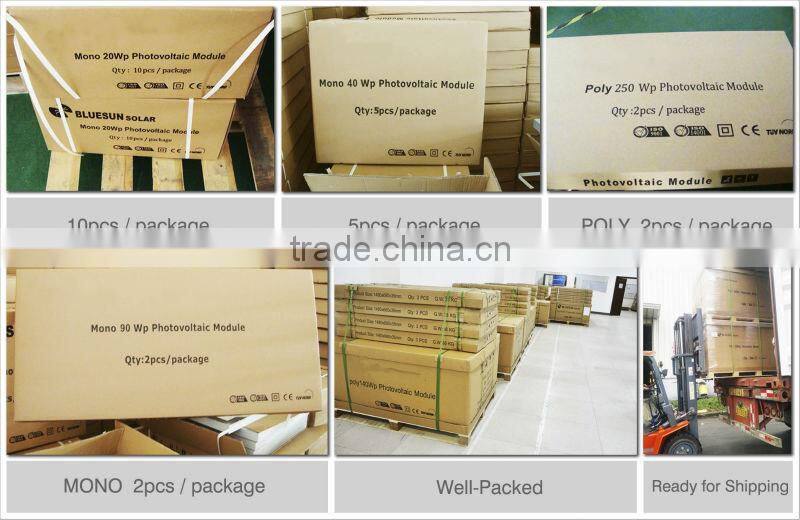

>>Shipping



Materials in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO, Mearsk and MSC ship to worldwide for safe shipping, so don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details, including your phone number, for easy contacting from shipping company officer.







250w pvc wall roof panel lighting mono solar panel with low price high quality



>>Feedback



1. Customer satisfaction is completely guaranteed. If for any reason you are unsatisfied with your order, please contact us first before you leave the feedback.







2. We will do our best to take care of you. If you have any questions, please do not hesitate and feel free to contact us.





>>Contact us

250w pvc wall roof panel lighting mono solar panel with low price high quality
