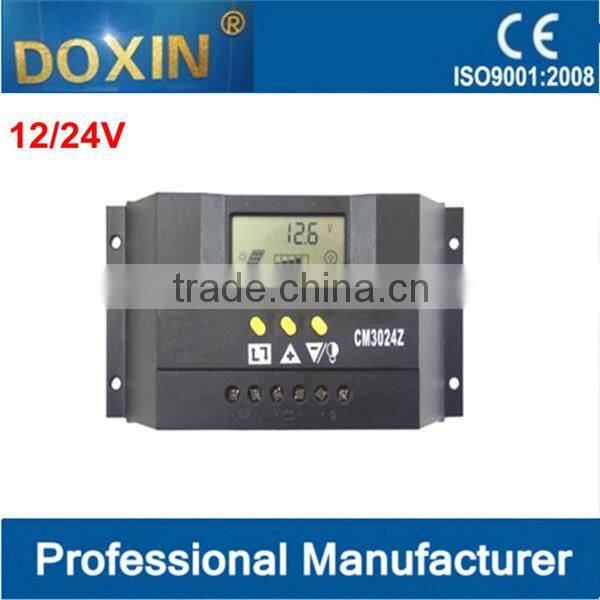

ac dc hybrid solar charge controller natebook 30A

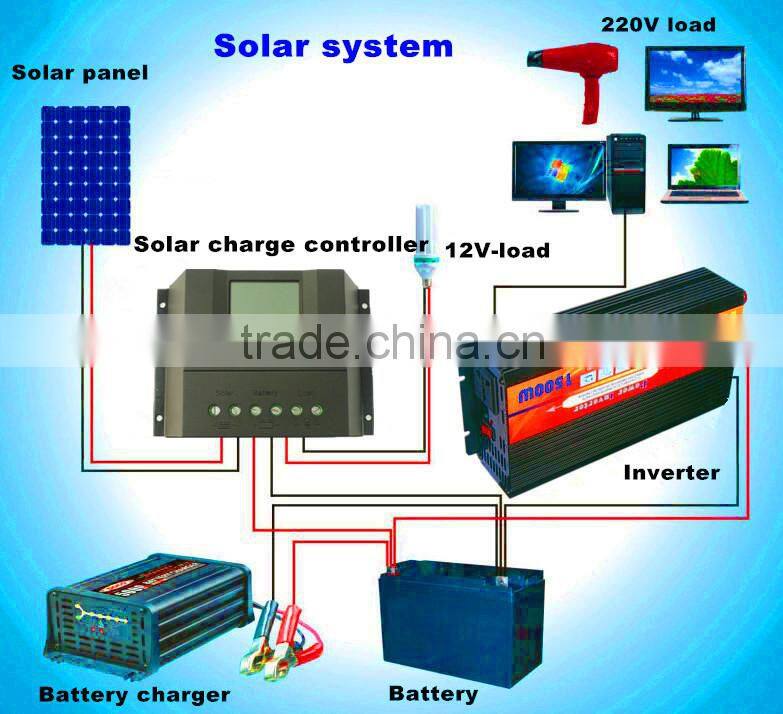

1. Solar charge controller in solar systems:

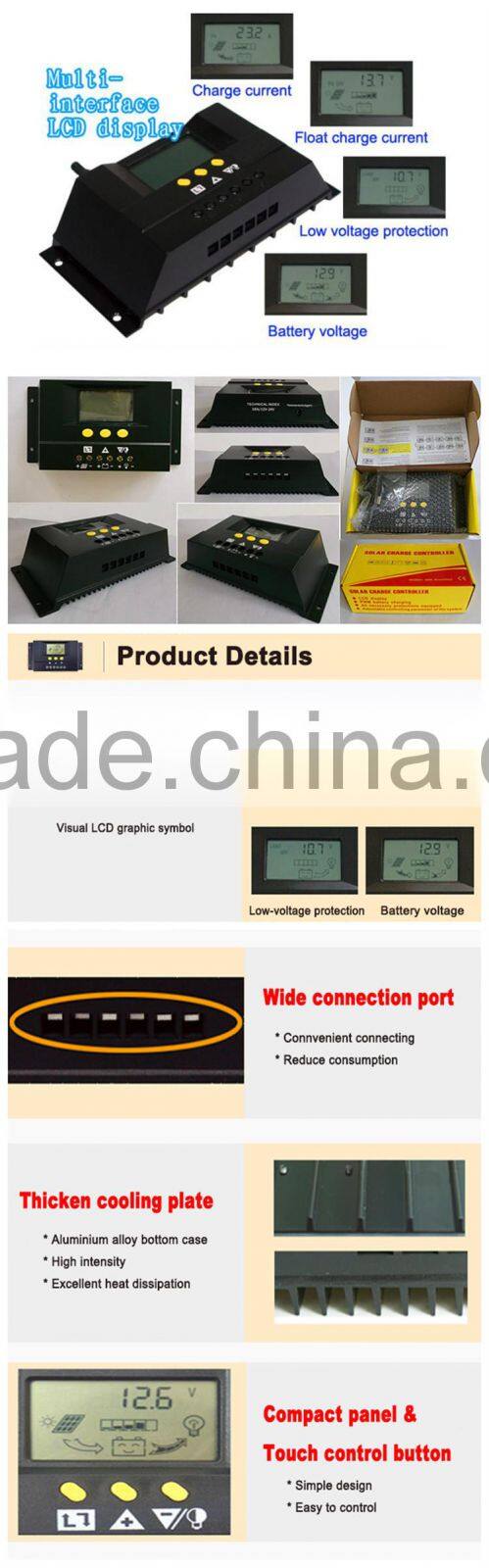

2. Detailed pictures:
Light and timer control (Single timer and dual timer optional)
Ideal for public lighting area, such as street light, path way, garden lights, parking area,bus station etc.
Current: 10A/15A/20A
Voltage: 12/24V auto work
car solar battery charge regulator controller
Compatible with 480W/240W solar panel with dark activated function, Max current is 20A/10A EPRC-ST solar street light controller. It's the second generation of the EPRC solar street light controller, it provide automatic lighting control function. good for street and pathway lighting, parking area, bus station and signage and etc.
3. Summarize
LC series solar charge controller adopts the most advanced digital technique and operates automatically.
The Pulse Width Modulation (PWM) battery charging can greatly increase the lifetime of battery.
4. Application:
Ideal for off-grid solar lighting system that needs light and timer control
Solar street light system
Solar garden light system
Solar billboard
Solar detection equipment etc.
5. Features
- Intelligent System Optimum Control
- High efficient Series PWM charging with temperature compensation
- Compact size
- Use MOSFET as electronic switch, without any mechanical switch
- Digital LED menu, only one key choose the battery type
- Load status display
- Gel, Sealed and Flooded battery type option
- Big terminals and big distance between terminals
- Electronic protection: Overheating, over charging, over discharging, overload, and short circuit
- Reverse polarity protection: Any combination of solar module and battery
- In-build high accuracy constant current (LED Driver), with 91%-96% output efficiency
- High efficiency series PWM charging
- Over-load, Load short-circuit, PV/battery reverse polarity protection, ect.
- A setting button to set adjustable lighting control option
- Full power timer, Second timer, Third timer, hours to dawn timer are option with different output power
- With self-dimming capability basing on battery voltage to save energy and realize lamps turn on for 365days.
- Special for LESS THAN 70W Solar LED Street Lights
6. Electronic Protections:
·Overheating
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV reverse polarity
·Battery reverse polarity
7. Sepecification
| Fully digitized microprocessorcontrol ,useSCM | |||
| Provide longerbattery lifeand improved system performance | |||
| Series PWMchargemode&State of Charge(SOC) battery regulation | |||
| 4stagescharging :Equalization,PWM,Boost Float | |||
| External temperaturecompensation sensor | |||
| LED displayfor charging, Battery andDC loadrunning stateand fault | |||
| Full circuit protection, | |||
| Overloadand shortcircuit protection and resume when released | |||
| Over dischargeprotection and resume | |||
| Over chargeprotection | |||
| Reverse polarity protection forsolarpanel ,battery andDC load. | |||
| Reverse currentat night | |||
| Lighting protection | |||
| 12V or 24VDC automatic work | |||
| Optional loadcontrolfunctions:TimeControl, | |||
| Light Controland Timer set usefor solarstreet light | |||
|
SCH10,SCH10-ST twoshape optional |
| ITEM | MODEL | CM2024Z |
CM3024Z |
| Ratedchargecurrent | 20A | 30A | |
| Rated loadcurrent | 20A | 30A | |
| System voltage | 12/24V AUTO work | ||
| Protection | Over load | 125% for60sec.150% for5sec.for load and solar panel | |
| Shortcircuit | Over 300%, shut offat noce.for load and solar panel | ||
| Over voltage | 17V / 2*17V,for load | ||
| Low voltage | 10.5VDC/21VDC | ||
| Reverse polarity | protection forsolar panel ,battery andDCload. | ||
| Reverse current | yes.at night | ||
| Lighting protection | yes | ||
| Staticcurrent | ≤ 6mA | ||
| Voltagedrop | Chargingloop | ≤ 0.26V | |
| Dischargeloop | ≤ 0.15V | ||
| Charging | Boostcharging | 14.6V,29.2V for 30Mins.Only forBattery wasoverdischarged. | |
| voltage | Equalizing charging | 14.4V,2*14.4V for30mins | |
| Floatcharge | 13.6V, 2*13.6V | ||
| Charging recovery | 13.2V,2*13.2V | ||
| Temperaturecompensation | -5mv2V | ||
| Battery low | 12.0V, 2*12V | ||
| Loaddisconnect voltage | 11.1V- 2*11.1V | ||
| 13.1V,2*13.1V | |||
| Over dischargeforced recovery | 12.5V,25.0V, ( recovery by switch ) | ||
| Charging controlmode | Series PWMcharge mode &State of Charge(SOC),Automatic compensation | ||
| Running temperature | Industrygrade :-35 to +55;Commercial Grade: -5 to +50 | ||
| Tropicalization | PCB was spraycover.Terminals corrosion protected | ||
| Protection class | IP22 | ||
| Case material | ABS | ||
| LED display | Charging, Battery and DC load running state and fault | ||
| Terminalsize | Max6 Sqmm wires | ||
| Optionalfunctions | Time+light Control(RC),Timer set(RC-M),usefor solar street light | ||
| Productsize(mm) | 133*19.9*26.9 | 133*19.9*26.9 | |
| Carton size(mm) | 510*310*210mm/50PCS | 510*310*210mm/50PCS | |
| Carton weight(kg) | 11 |
11 |
|
8. Temperature Compensation Coefficient
Description |
Parameter |
Temperature Compensation Coefficient(TEMPCO)* |
-30mV/°C/12V(25°C ref) |
* Compensation of equalize, boost, float and boost reconnect voltage
9. Customers service
Please contact us through email to me, we will assist you in any way possible and aim to answer all emails within 24-48 hours.
OEM Services
- 1.Logo Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
- 2.Label Please offer us your own model numbers.
- 3. Manual Please offer us the finished manual file that can be printed directly.
- 4. Packing Box We will offer you the demension and the design file.Please design your own style based on this file then send it back to us.We will print some samples for your checking.
Payment Terms
- 1. T/T ,Western Union,Money Gram.
- 2. We will arrange the products and shipment within 3-7 working days after receive the payment
Lead Time
- 1.Sample orders will be delivered from our factory within 7 working days.
- 2.General orders will be delivered from our factory within 7-15 working days.
- 3.Big orders will be delivered from our factory within 15-25 working days at most.
Shipment
- 1.By EMS,DHL,FedEx,TNT,UPS or other express.
- 2.By our forwarding agent(by air or by sea).
- 3.By your own forwarding agent.
- 4.By domestic forwarding agents to any city in China.
After-sale service
• 1.All products have been checked and packaged in good condition before dispatch.
• 2.Warranty :one years,
• 3. In case the item is defective, please inform us within 30 days of receipt, we will replace a new one,but you need to in charge for the freight.No Refunds are offered.
10. Top 10 products 2013

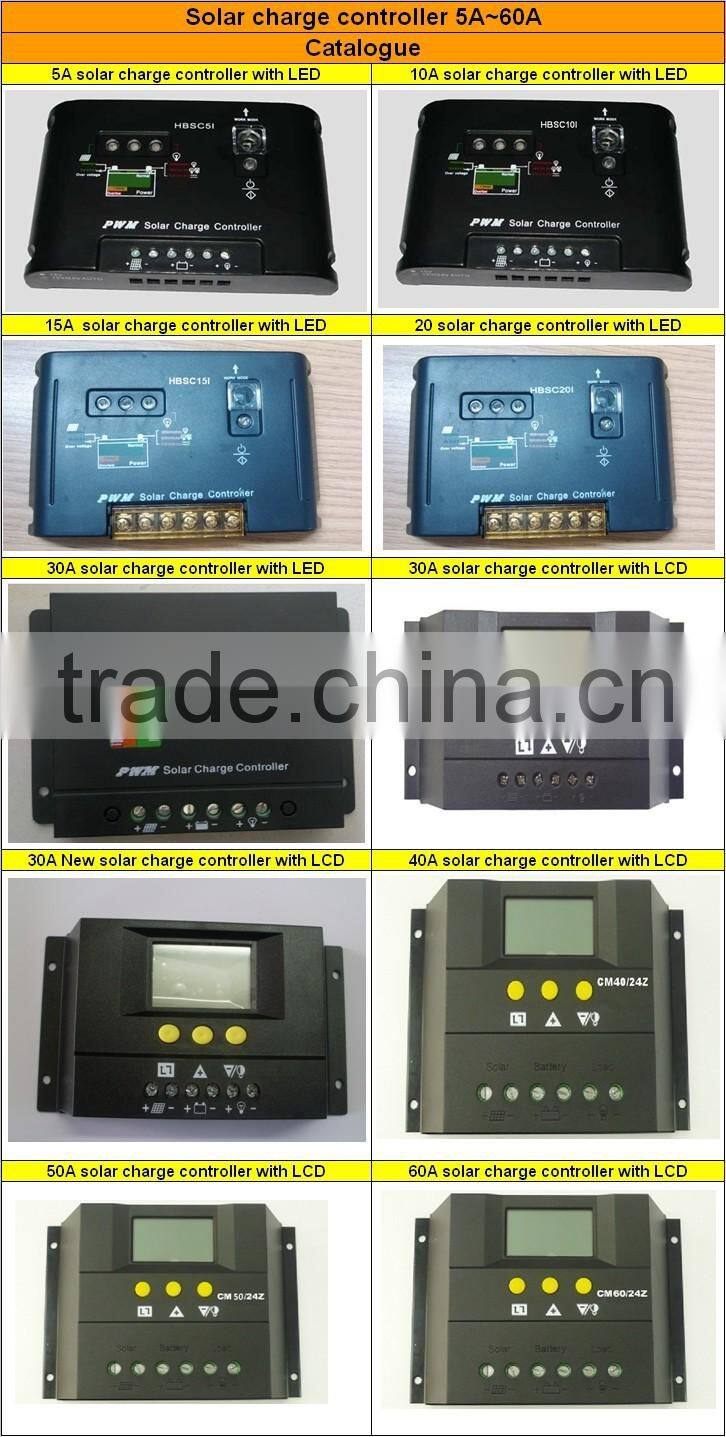

Other hot model of solar charge controller:
1. PWM type with LED/LCD display :

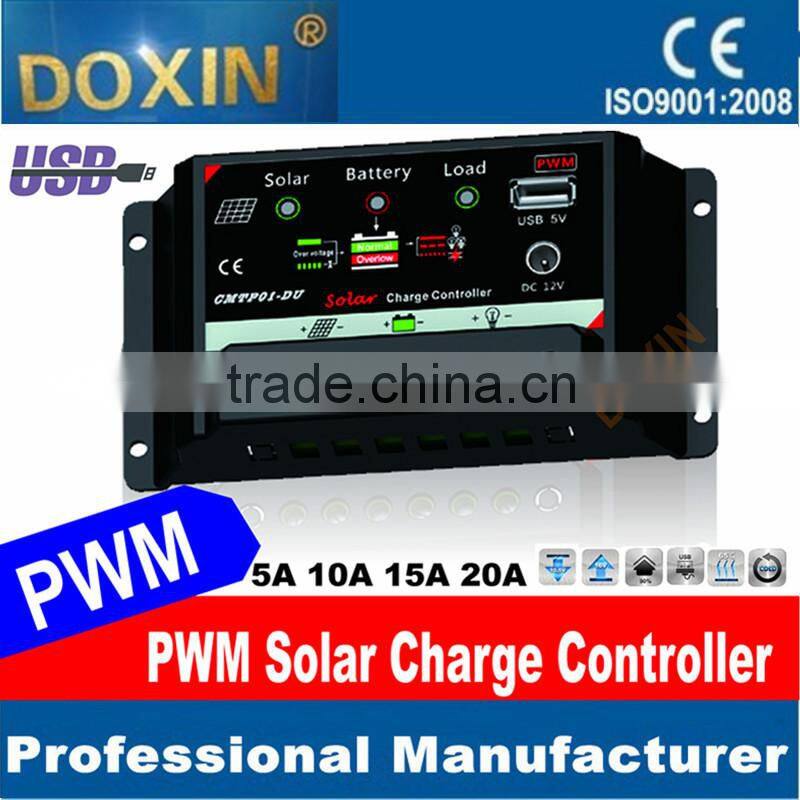

2. PWM type with LED display and USB port:

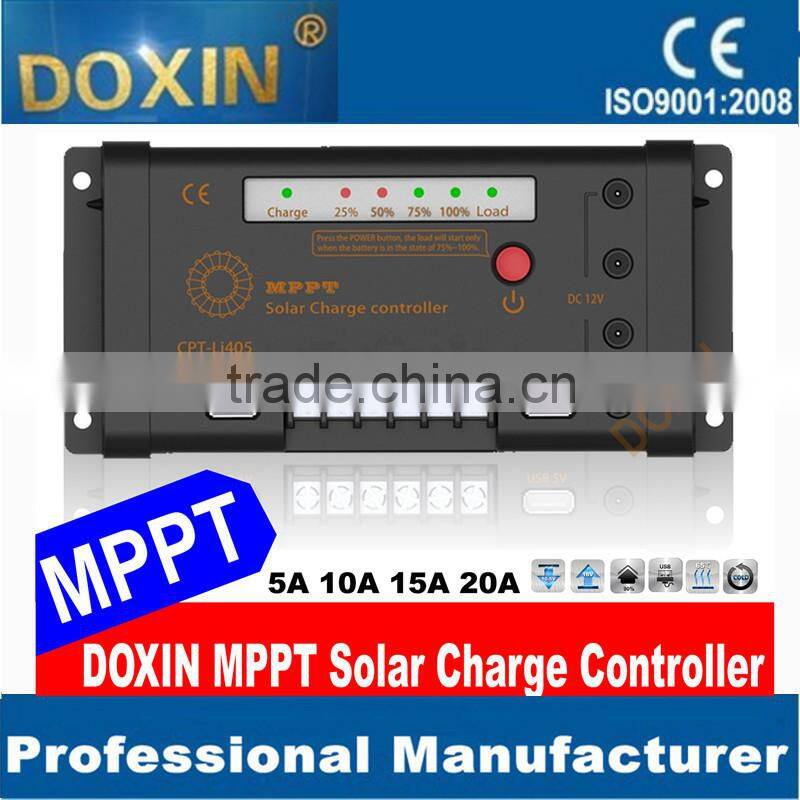

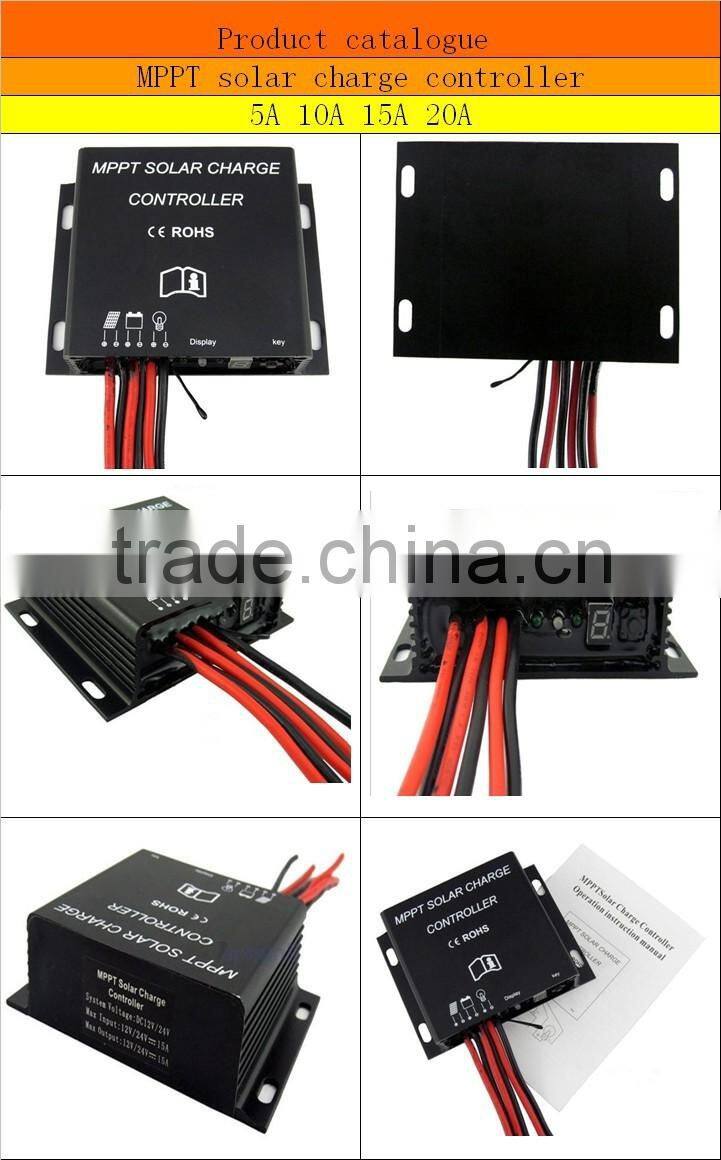

3. MPPT type with LED display:
4. MPPT type with LED display and USB port:
11. Our other hot sales solar products:

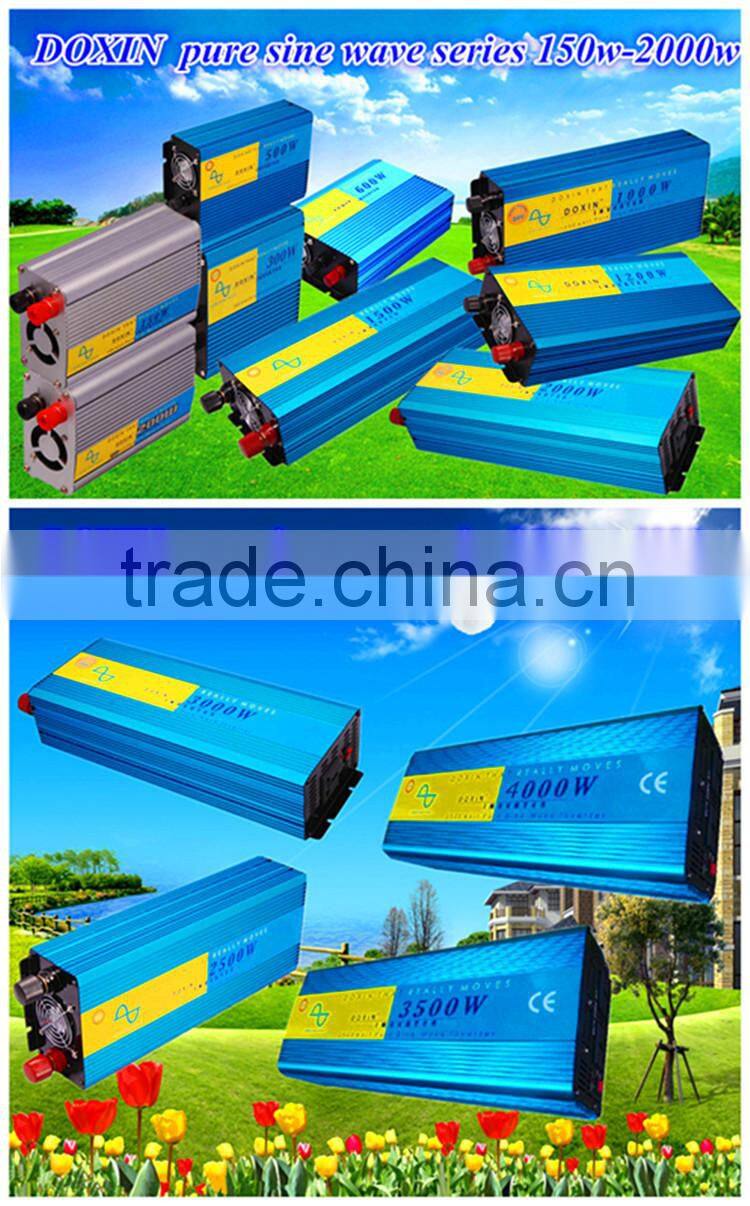

Power inverter
