Specifications
PWM DC12V/24V 20A Solar charge controller with USB port1.Vivid LCD screen signal and precise operation.
2. PMW
3.with USB
PWM DC12V/24V 20A solar panel/ solar fan/ lights Solar charge controller with USB port
1. Features:
- Electronic protection
- Fully automatic operation
- PWM charge mode (SOC)
- Micro-controller digital accuracy
- Suitable for all 12/24V DC lamps
- Big terminals, big distance between terminals
- Double digital LED display, numbers equal to timer setting
- Temperature compensation (with external temperature sensor)
2. Function:
- Over-load protection
- Short circuit protection
- Reverse discharging protection
- Reverse polarity protection
- Protection from the lighting strike
- Under-voltage protection
- Over-charging protection

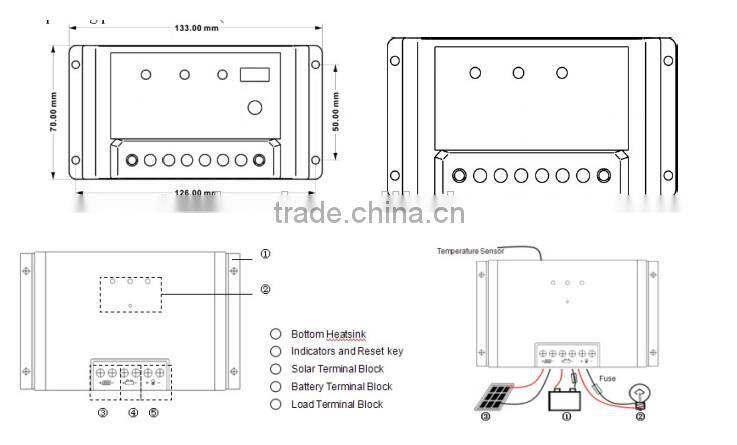

3. Connection ( As indicated in diagram ):
Open the top cover of controller and connect the wire with terminals follow the diagram on the top cover of it.
- Connection the “+”, “-” Poles of the battery to the corresponding ports of controller ( the third and the fourth one from left ).
PS: The subsequent operation can be processed only if the load indicator ( mark: load ) flickers once and starts lighting after 30 seconds.
2. Connect the “+” “-” poles of the solar panel to the corresponding ports of controller ( the first and the second one from left)
3. Connect the “+” “-” poles of the load to the corresponding ports of connector ( the first and the sixth one from left ).
4. Operate Manual:
Indicator LED:
- Charger LED is used to indicate the charging status of battery, LED turn off means charging stopped.
- Battery Status indicator: RED ON when battery under voltage, please charging, GREEN ON when the battery full.
- There is output and load can work if the Load LED is lighting. There isn’t output and the load can work is the Load LED off.
5. Notice:
- Please carefully check and confirm the voltage before wiring the components of the solar panel voltage is 18V, battery 12V, 12V rated voltage of the load.
- The rated current of solar panels and load must be less than the rated current of controller.
The specification: Error of 2%
Rated voltage |
12V |
USB output voltage |
5V |
Voltage of stop power supply |
10.5V |
USB output current |
550mA |
Voltage of recover power supply |
10.5V |
DC output voltage |
10.5-14.5V |
Charging stop voltage |
14.4V |
DC output current |
1.5A |
Rated of the charging current |
3.5/10/20/30/50/60/80/100A |
Working temperature |
-20 ~ +60 |
Rated load current |
3.5/10/20/30/50/60/80/100A |
|
|
*USB, DC parameters only for some models.
Parameters may customized by customers.
CMTP01 series solar charge controller is a specially for the sunshine of the good development of a region and a separate simplified controller Suitable for 12V automatic control system, and some models with USB5V / DC12V output, to facilitate the use of smart devices and lighting.

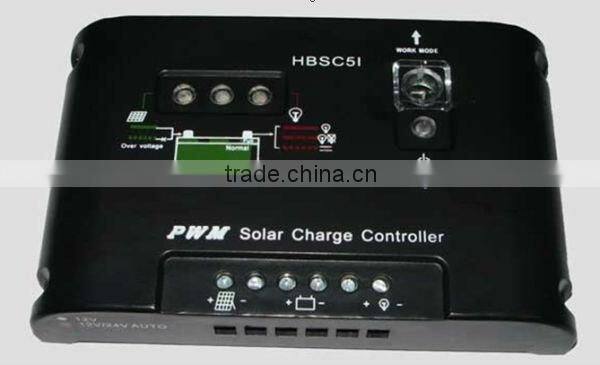

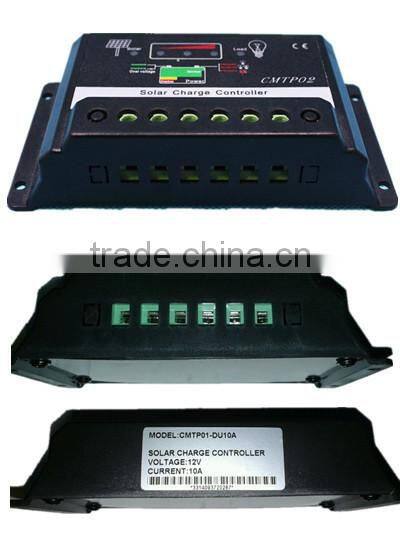

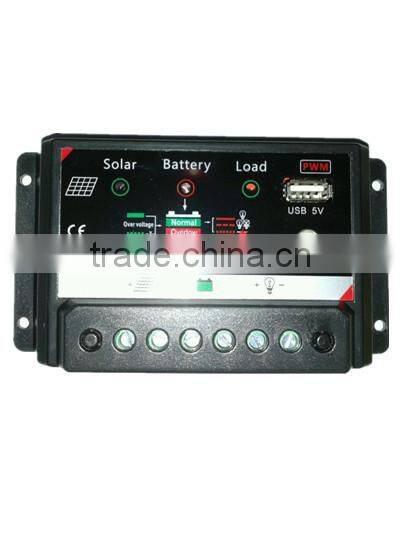

6. Detail photos:

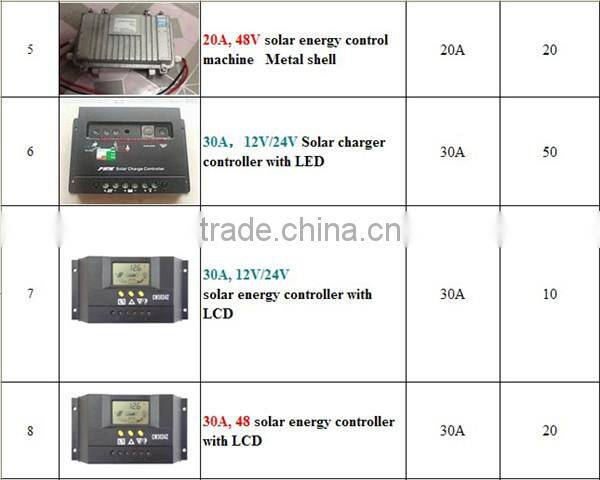

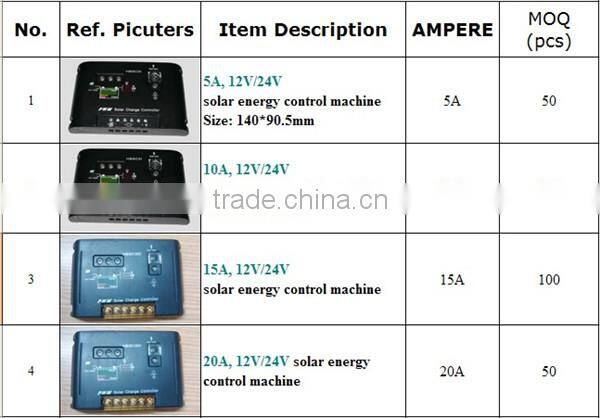

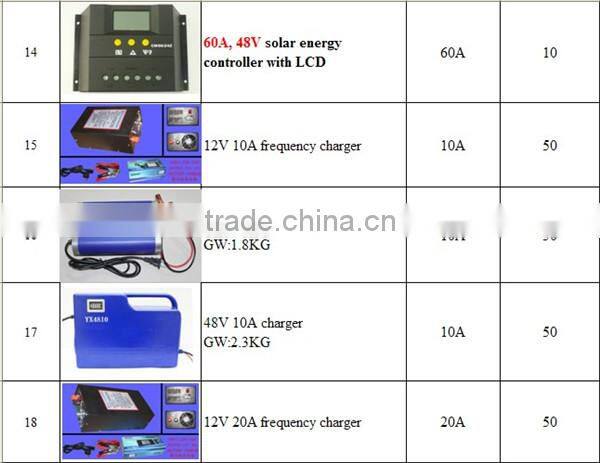

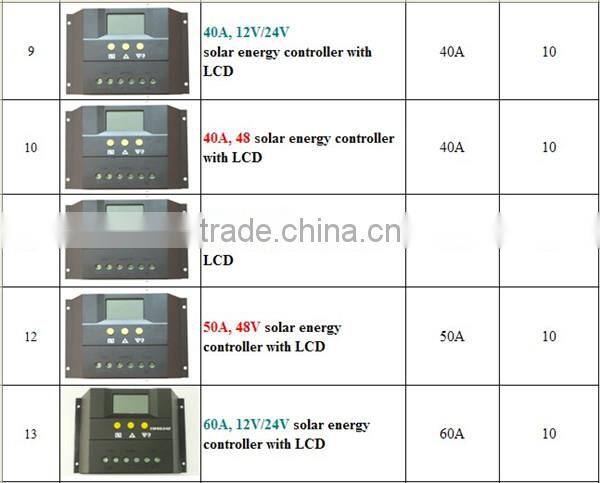

7. Other models:
Without LCD

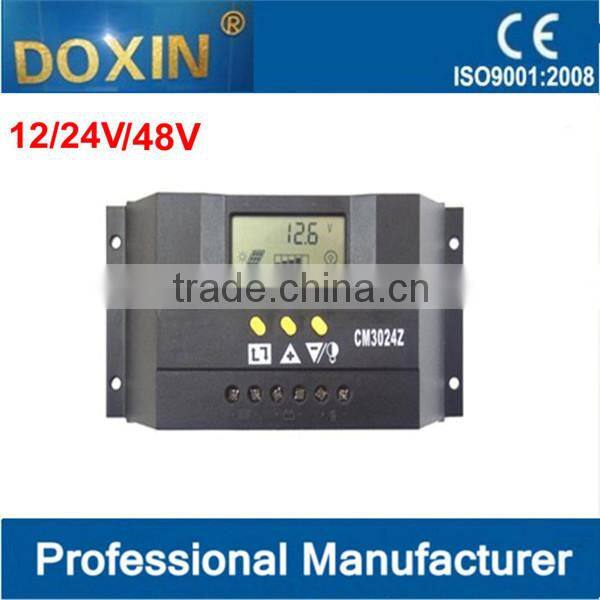

With LCD
Shipping & Payment:
a. Usually shipped by DHL (3 --7 days),the country which DHL can not reach , we will shipped by EMS, TNT, FEDEX . then give you the tracking number.they will provide door to door service.
b. Suggest to settle the shipment by sea for mass production.
We accept T/T bank, Western Union, Money Gram.
Our Factory:
DOXIN is a professional manufacture specialized in electronics and solar products
We produce electronics products more than 10 years .We have professional devel-
opment team.We pursues to establish the culture of "quality first ,reputation best ".
Our products usually are exported big quantity in to Europe, USA,African, Russia,
Australiaetc. and our power inverter serials enjoy better reputation .With reliable
quality and stable performance.
