Single Color DC12V Waterproof LED Injection Module With 4 Pcs Light Smd3528
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
DX-35354-T31
Chip Material:
AlGaInP
Emitting Color:
Other, red, yellow, blue, green, white, warm white
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waterproof LED Module With 2 Pcs Light Smd3528 Size26*7*4 Low PriceUS$ 0.1 - 0.2MOQ: 100 Pieces -
3pcs SMD3528 CE Waterproof LED Module/led ModulUS$ 0.1 - 0.2MOQ: 100 Pieces
-
High Performance Led Lamp Bulb Lights Led Car HeadlightUS$ 1.6 - 1.78MOQ: 100 Pieces
-
2015 NEW Car Light Interior Bulb Car Led HeadlightUS$ 1.5 - 1.75MOQ: 100 Pieces
-
High Brightness Auto Interior Led Car LightUS$ 1.6 - 1.78MOQ: 100 Pieces
Model Number
DX-35354-T31
Chip Material
AlGaInP
Emitting Color
Other, red, yellow, blue, green, white, warm white
Luminous Intensity
100lm/w
Luminous Flux(lm)
4-28
Optical Attenuation(%)
6
Power
Other, 0.48
Power Dissipation
3%
Color Rendering Index(Ra)
80
Color Temperature
455-20000K
Operating Temperature(℃)
-40, 60
Storage Temperature(℃)
-40, 60
Place of Origin
Guangdong, China
Brand Name
Lighthuge
Certification
CE
Specifications

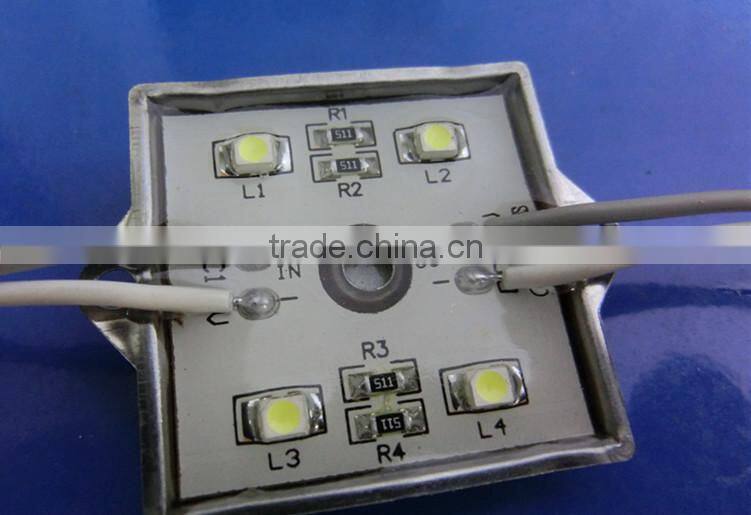

single color DC12V Waterproof LED injection module with 4 pcs light smd35281.SIZE:35*35*5mm
2.factory direct sale, low price
Product Description
Specification:
single color DC12V Waterproof LED injection module with 4 pcs light
LED type: 3528SMD LED
Available colors: red, yellow, blue, green, white, warm white
Viewing angle: 160 °
CE&Rohs OEM&ODM
DC12V IP65
over 10 years factory experience
two years warranty
LED quantity: 1pcs, 2pcs, 3pcs, 4pcs
Features:
1.Ideal replacement of neon light and traditional advertising lighting.
2.Low power consumption, 80% energy saving
3.High brightness, full range colors are available
4.Long lifespan: 8000 hours
5.Maintainance free, low cost to use
6.Low voltage with 12v, be safe to use
7.Easy installation, be safe to use in all display situation
8.CE & RoHS approved
Product description: Waterproof LED module with 2 pcs light smd3528 size26*7*4 low price
| Parameter | Symbol | Condition | Unit | ||||
| Voltage of power supply | VDD | Direct current | v | ||||
| Working temperature | Top | DC12V,50%RH | °C | ||||
| Working humidity | B | DC12V,25°C | %RH | ||||
| Viewing angle | 2θ1/2 | ° | |||||
| Basic color | Color | 6LEDsingle color | |||||
| Light attenuation rate (1000H) | —— | DC12V,25°C | % | ||||
| Internal Protection | IP | ||||||
| Weight | Nw | Single module | g | ||||
| Drilling size | D | —— | MM | ||||
| Cable | 10CM grey white, 12*17 tinned copper wire, outsourcing PVC glue. | ||||||
| Material of the shell | White /Beige Plastic shell | ||||||
| Color of the shell | metal | ||||||
| Packing inside | 100pcs/Vacuum aluminum foil bag | ||||||
| Packing outside | 3000pcs/carton(K&K),packed with bandage | ||||||
| Model No | Color | Luminance(lm/pcs) | Color temperature | Power (w/pcs) | |||
| DX-35354-T31 | red | ≥10 | 620-630nm | 0.24 | |||
| DX-35354-T31 | yellow | ≥8 | 585-595nm | ||||
| DX-35354-T31 | blue | ≥4 | 455-470nm | ||||
| DX-35354-T31 | green | ≥16 | 510-530nm | ||||
| DX-35354-T31 | white | ≥28 | 4500-20000K | ||||
| DX-35354-T31 | warm white | ≥28 | 2000-4500K | ||||
