Home > Electrical & Electronics > Inverter > Power Inverter > DOXIN 2000 Watts Modified Sine Wave Inverter DC 24V To AC 220V off Grid Inverter

DOXIN 2000 Watts Modified Sine Wave Inverter DC 24V To AC 220V off Grid Inverter

DOXIN 2000 Watts Modified Sine Wave Inverter DC 24V To AC 220V off Grid Inverter thumbnail-1
DOXIN 2000 Watts Modified Sine Wave Inverter DC 24V To AC 220V off Grid Inverter photo-1
US$ 75 - 80 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DOXIN
Model Number:
DXP2000WBIG-24V
Contact Supplier Request Quote Chat Now
Guangzhou Tianhe District Longdong Doxin Electronic Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DOXIN
Model Number DXP2000WBIG-24V
Output Power 1 - 200KW
Output Type Single
Size 280*150*70MM
Weight 2500g
Input Voltage 24V
Output Voltage 220V
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current 83.3A

Specifications

off grid inverter
1.DC 24V To AC 220V
tection function
3.One year warranty
4.Efficiency:90%



Off grid inverter

DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter







Model: DXP2000WBIG-24V

1. Product Description



1. Full -automatic operation
2. High frequency
3. Power-off mode charging
4. Portable size for convenient use
5. Environmentally friendly: No noise, no fume, no fuel required
6. Cooling fan,controlled by temp. automatically, protect the equipments from overheating
7. Cost-effective inverter for home appliances, office equipments, solar/wind systems and outdoor works



2. Protection function:



  Overload protection

  Over-current protection

  High-temperature protection

  Battery reverse connection protection

  Battery high-voltage&low-voltage protection

  Built-in fuse protection, etc



3. Technical Data
Input Voltage: 24V DC
Output Voltage: 100V~120V AC / 220V~240V AC
Output Voltage Regulation: 5%~10%
Continuous Power:2000W
Surge Power: 4000W
Low Voltage Alarm: 17V+-0.5V DC
Low Voltage Shutdown: 19V+-0.5V DC
High Voltage Shutdown: 30V+-0.5V DC
Over-temperature Shutdown: 65degree +- 5degree
Frequency: 50Hz or 60Hz
No Load Current Draw: <0.3A
Efficiency: >85%
Working Temperature: 0 ~ 40degree
Working Humidity: 20%~80%
Storage Temperature: -30degree~ 70degree
Product size: 280*150*70MM
Net Weight: 2.50kg  GW: 3.30kg
Carton measurement:49*46*47CM, 6PCS/CTN

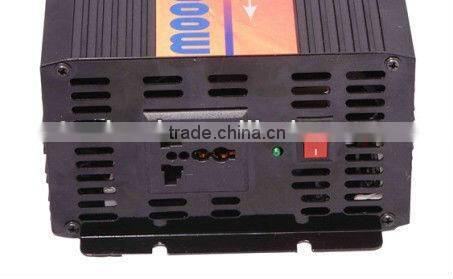

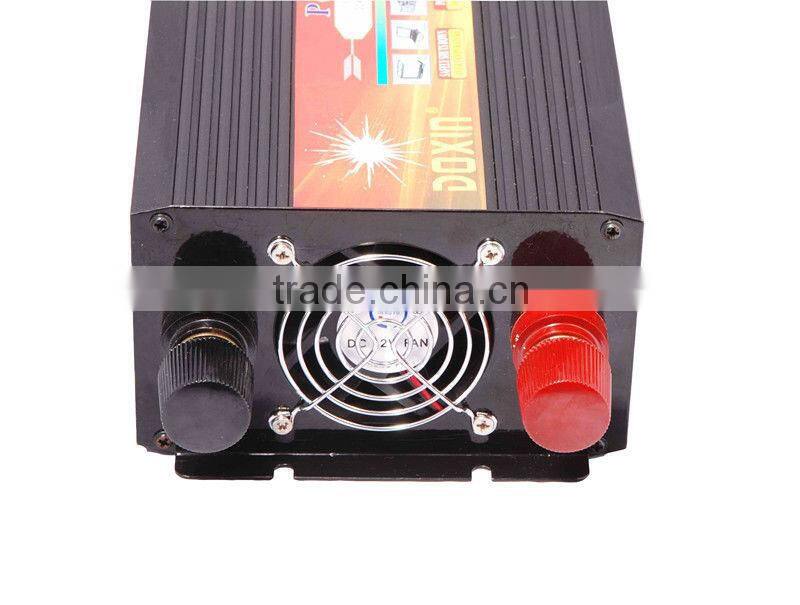

 4. Detailed pictures

DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverterDOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverterDOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter

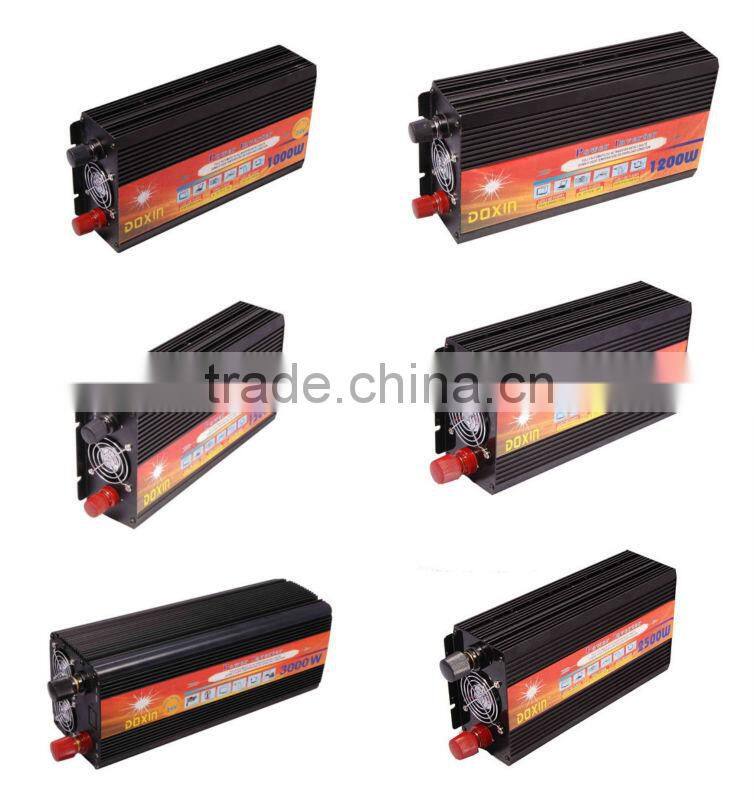

5. Relative hot sales products

Regarding vehicle-use power inverter with ups&charger, besides 3000w, we also have  300W, 500W,600W,800W, 1000w, 1200w,1500w ,2000W and 2500W.

DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter







6. Application:



Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity !
Simply connect with 12v/24v Battery as in a Car, Motorcycle, Camper or Boat and use 110v/ 220v electrical appliances.




1. It is well suitable for supplying power for your notebook, digital camera,  video camera and other appliances when you travel on the vehicle, camp, boat and other outside activities.
2. It can also be widely used in the districts with unstable power or supplied power by solar or wind energy sources.
3. Besides, it supplies a stable power for household appliances, such as TV, computer, DVD, VCD, satellite receiver, printer, fluorescent lamp, cooler, stereo, fan, electric drill, drill press, lighting, motor, game player, etc.



Mark:



1. For power inverter 500w, 600w, 800w, they should be with below 100AH car battery, to protcet the battery.





2. For inverter 1000w and above 1000w, they should be with above 150AH car battery, to make them get charged rapidly and protect the battry.



3. Adapt to various electrical appliance, like TV, DVD, fridge, air condition, computer, daylight lamp and so on.







7. Attention:



Don't use them in the high temperature



Don't overload the voltage



Don't use when the low voltage alarm is beginning



DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter

8. CE certificate

9. Application:





10. Installation



DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter



11.Wave form and plug

DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter

EU/German/ USA/UK/Universal/Australia plug are available

DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter



12.Customer services

Please contact us through email to me, we will assist you in any way possible and aim to answer all emails within 24-48 hours.



OEM Services

  • 1.Logo Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
  •  2.Label Please offer us your own model numbers.
  • 3. Manual Please offer us the finished manual file that can be printed directly.
  • 4. Packing Box We will offer you the demension and the design file.Please design your own style based on this file then send it back to us.We will print some samples for your checking.
  • Payment Terms
    • 1. T/T ,Western Union,Money Gram.
    • 2. We will arrange the products and shipment within 3-7 working days after receive the payment



    Lead Time



    • 1.Sample orders will be delivered from our factory within 7 working days.
    • 2.General orders will be delivered from our factory within 7-15 working days.
    • 3.Big orders will be delivered from our factory within 15-25 working days at most.







    Shipment



    • 1.By EMS,DHL,FedEx,TNT,UPS or other express.
    • 2.By our forwarding agent(by air or by sea).
    • 3.By your own forwarding agent.
    • 4.By domestic forwarding agents to any city in China.



DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverterDOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter

13. Our factory

We are a big profession manufacturer and exporter.



DOXIN is a professional manufacture specialized in  electronics and solar products ,We



produce electronics products  more than 10 years .We have professional development team.



We pursues to establish the culture of "quality first ,reputation best ". Our products are very popular all over the world through our exertion. "High quality, competitive price and delivery on time" is our policy all the time. We always offer our best quality products and services.  Our products usually are exported big quantity in to Europe ,USA,African ,Russia ,Australiaetc. and our power inverter serials enjoy better reputation .With reliable quality and stable performance.

DOXIN 2000 Watts Modified sine wave inverter DC 24V To AC 220V off grid inverter
