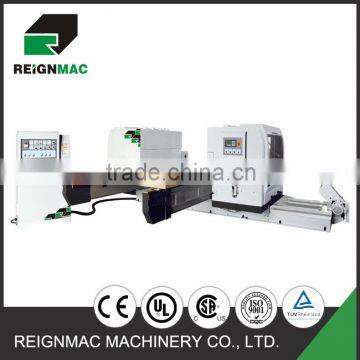

EUROPEAN QUALITY CE Double End Tenoner Woodworking Machine

Note:Any variation to the specification above mentioned will not be further notified since the product specification and design keeps on changing all the time

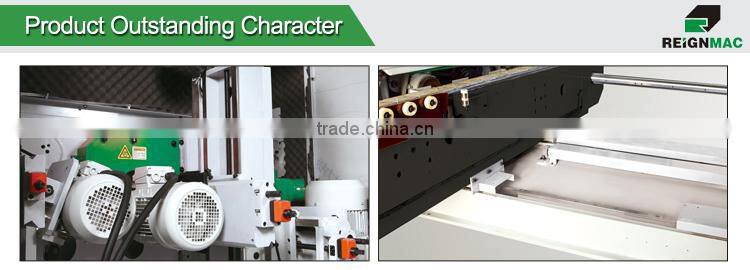

D60M Outstanding character

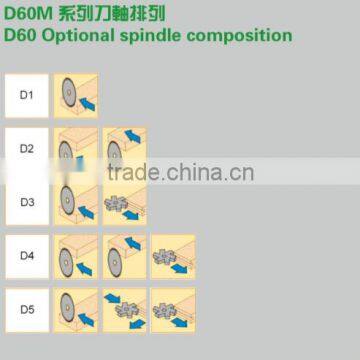

1. Each spindle can rotate , convenient to achieve angle-truncate , tenon, groove and etc.
2. Hoggers on cut-off saw that can discharge waste material more helpfully.
3. Adopted widen by high precision linear orbit, machine can run in precision and wearable. It assure the precision when widen the working size, also can guarantee to fit your highly requirement for setting the working width.
4. Orbit lubrication can reduce the frictions of slide when moving, increase the nature life of orbit as well.
5. Supported with the roller bearing in the feeding belt, make the movement more stable and reduce the noise.
6. Much better to feed the big size panels with the lengthen chain belt design.
7. Adjustable height on in-feed fence is better satisfied with basis positioning requirements for different thickness of wood panel.
8. In order to assure every chain board with high precision, we use the high hardness cast iron and treated with high temperature and machining by CNC.
9. The design of rigid column and carriage to ensure the needs of heavy-duty cutting.
10.
11. Text display for width setting .The reset accuracy can reach to ±0.3mm.
12. Each spindle is equipped with high precision bearing, spindle speed of milling units reach to 7500r/min.
13. Each spindle is configured with read out , can display the position of spindle veracious
14. Inverter to feed, feed speed is 5-25m/min.
15. Adopted the high class electric component to build up the perfect electric system can increase the stabilization.
16. Through PLC to the control pressure belt and adjustment automatically, make the work pieces more stable and veracious.
17. Adopted excellent material to make of the pressure belts, keep good wearable.
18. Top pressure and bottom conveyor belt has the design of two different speeds, no matter before or behind the fence dot, can be achieved to feed against the benchmark.
19. Sealed safety enclosure is controlled by the pneumatic, can reduce noise levels, and improve extraction and operator safety.
20. To equip with out-feed guide roller.
21. Dust proof hood on guide of lathe bed to availably keep thread pole clean.
