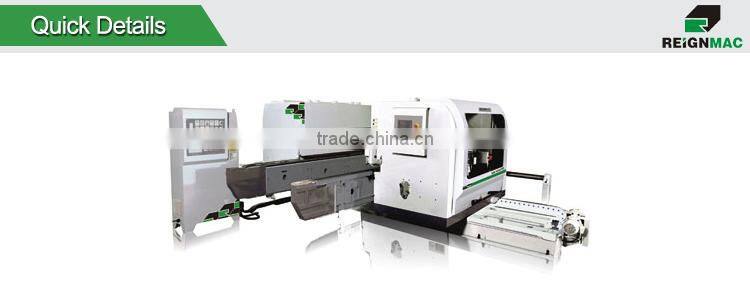

Double End Tenoner Series D80M REIGNMAC

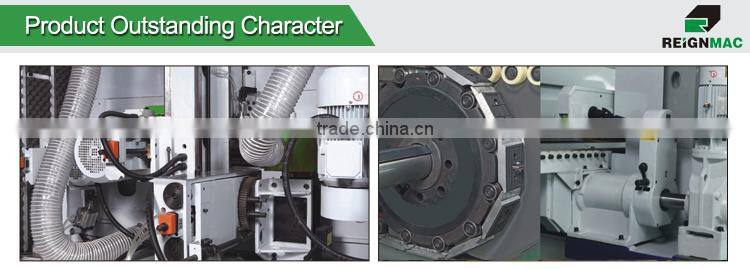

D80M outstanding character

1. With the jumping device in the scoring saw and the first milling unit, can prevent tearing effectively when processing.
2. Design with separation-type scoring saw and cut-off saw, it is convenient for the customer to choose working as top spindle or bottom spindle according to different type of products.
3. Each spindle can rotate, convenient to achieve angle-truncate, tenon, groove and etc.
4. Adopted widen by high precision linear orbit, machine can run in precision and wearable. It assure the precision when widen the working size, also can guarantee to fit your highly requirement for setting the working width.
5. Orbit lubrication can reduce the frictions of slide when moving, increase the nature life of orbit as well.
6. The cut-off saw equipped 11KW motor and can be installed hoggers, which is quite suitable to process the big cutting capacity materials.
7. The design of rigid column and carriage to ensure the needs of heavy-duty cutting.
8. Much better to feed the big size panels with the lengthen chain belt design.
9. Supported with the roller bearing in the feeding belt, make the movement more stable and reduce the noise.
10. In order to assure every chain board with high precision, we use the high hardness cast iron and treated with high temperature and machining by CNC.
11. Top pressure and bottom conveyor belt has the design of two different speed, no matter before or behind the fence dot, can be achieved to feed against the benchmark.
12. Individual transmission shaft seat structure makes operation of the chain more stable.
13. Each spindle is equipped with high precision bearing, spindle speed of milling units reach to 7500r/min.
14. Adjustable height on in-feed fence is better satisfied with basis positioning requirements for different thickness of wood panel.
15. Each spindle is configured with read out, can display the position of spindle veracious.
16. Width between two orbits of machine base reaches to 1105mm. Strongly spare parts improve the machine stable effectively.
17. Adopted inverter for feeding, make the feed speed reaches to 5~25m/min, increase the productivity.
18. Setting all of the parameter by PLC, easy to view and control. Reduce labor and the time for setting parameter, improve the productivity effectively.
19. Adopted the high class electric component to build up the perfect electric system can increase the stabilization.
20. Through the automatic locking which controlled by PLC, can lock the linear orbit automatically. No only can reduce the labor but also can assure the stable of the machine base, improve the quality of the work pieces.
21. Adopted excellent material to make of the pressure belt, keep good wearable.
22. Only input value of working width and thickness to the PLC, you can control the width and thickness. Precision of setting width is ±0.1mm. Easy to locate the work pieces and convenient to operate.
23. To equip with out-feed guide roller.
24. Sealed safety enclosure is controlled by pneumatic, can reduce noise levels, improve extraction and operator safety.
