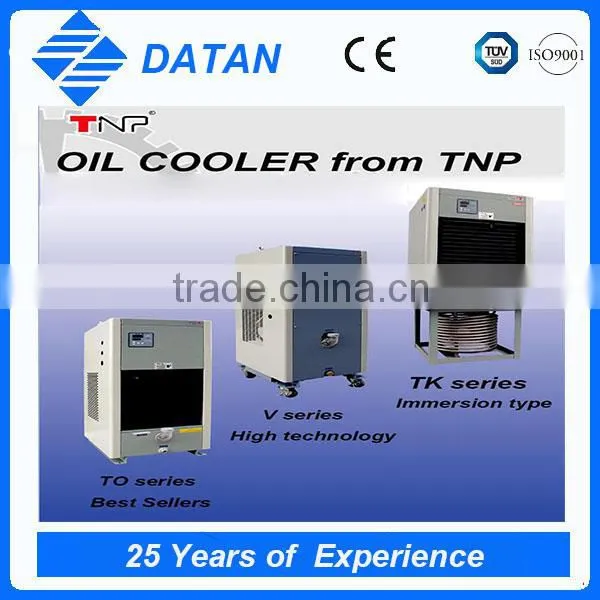

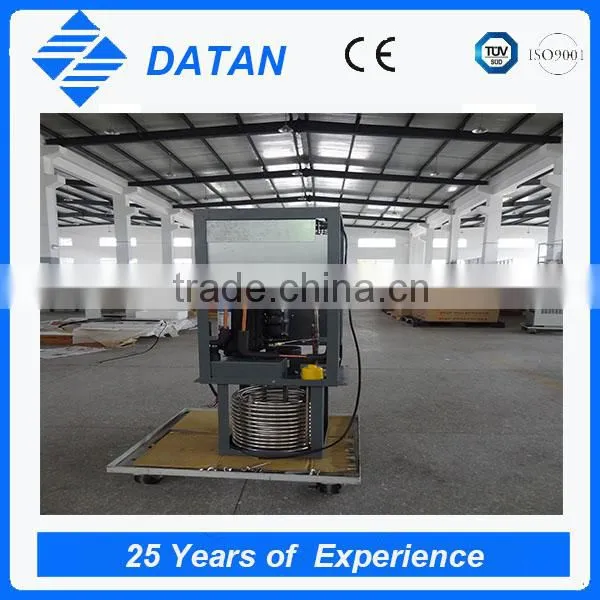

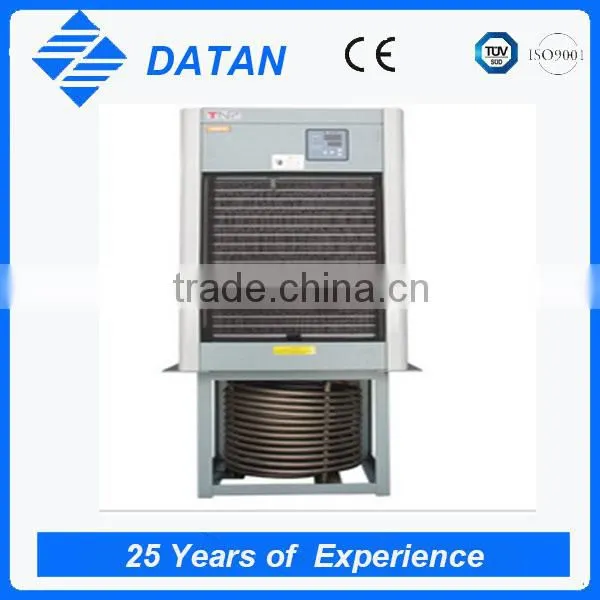

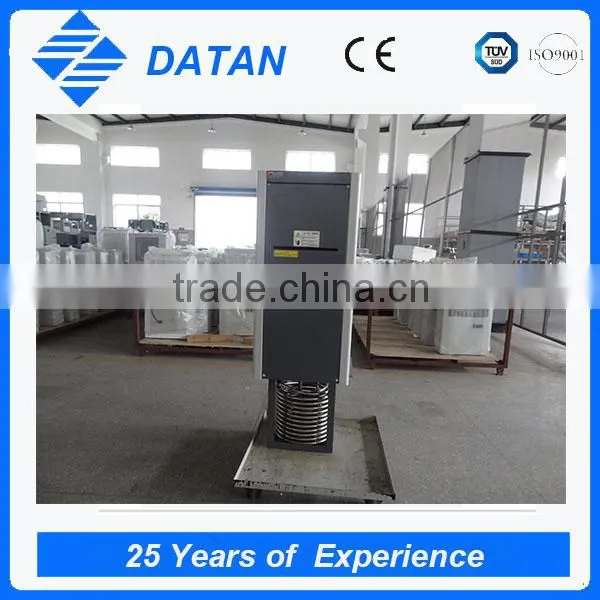

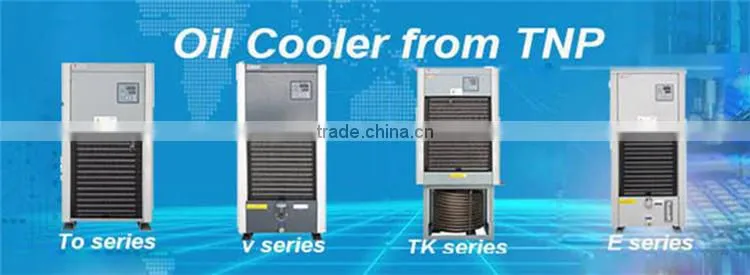

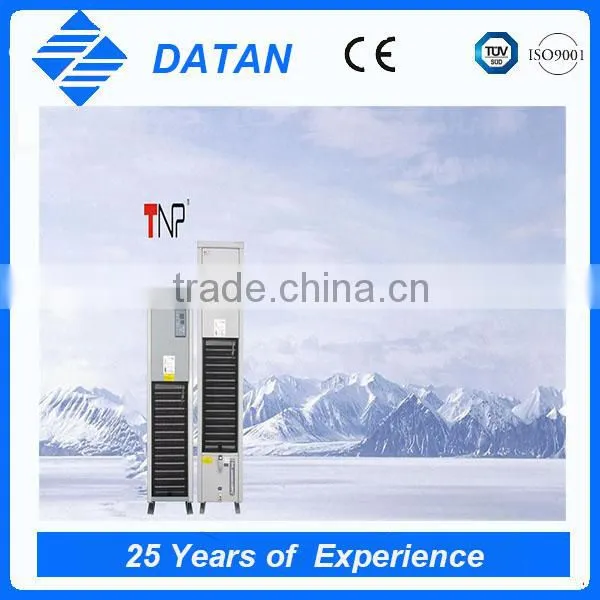

Circulating TK series oil cooling machine for sale
Advantage of Oil Cooling Machine:
- Produced TNP Oil Cooler Machine totally according to costom's requirement
- Made with full durable and thick high quality copper
- Pressured tested and guaranteed
- More sized to choose
- Our technology from Japan
- We have 25 years experience in manulacture and use for Oil Cooling Machine
TK series Parameter
| Model No. | TK-10 | TK-20 | TK-30 | TK-45 | TK-60 | TO-90 | |
| Cooling capacity | W | 1000 | 2000 | 3000 | 4500 | 6000 | 9000 |
| KCAL/H | 840 | 1680 | 2520 | 3780 | 5040 | 7560 | |
| Main power | 3Ø 220V /380V 50Hz | 3Ø 220/380V 50Hz | 3Ø 220/380V 50Hz | 3Ø 380V 50Hz | |||
| 3Ø 380V 50Hz | |||||||
| Total power | W | 550/750 | 850/950 | 1150/1300 | 1750/2150 | 2750/2550 | 2800 |
| Temperature control | A | Thermostat type(10-40℃) | |||||
| B | Difference temperature type(-10-10℃) | ||||||
| Electrical machine (W) | Compressor | 415/620 | 710/790 | 980/1147 | 1500/1900 | 2410/2230 | 2250 |
| Stirred type | 60 | 60 | 60 | 60 | 120 | 120 | |
| Fun | 55 | 75 | 75 | 180 | 180 | 370 | |
| Using temperature range | Indoor temperature(℃) | 10-40℃(Standard) | 10-40℃(Standard) | ||||
| Night temperature(℃) | 10-45℃ | 10-45℃ | 10-45℃ | ||||
| 10-45℃ | 10-45℃ | ||||||
| Oil viscosity range | Hydraulic oil,Lubricating oil 10-300cSt | ||||||
| boundary dimension (mm) | 428*435*920 | 450*460*1115 | 530*500*1115 | 600*600*1295 | 740*680*1315 | 810*750*1395 | |
| Weight(Kg) | No fuel tank | 45 | 60 | 75 | 80 | 120 | 104 |
1)Clean and Nice, Operation Security
Adopt new full closed cover,whose structure is much more simple and nice than the traditional separated machine .Meanwhile, the wire structure and the thread stand become one ,which is better to make the wire route closed ,so there's no cutting fluid splashing on the machine body,as a result ,the machine can keep clean for long time ,easier to clean.
2)Creative invention, durable in use
The bearing pedestal installing wire reel ,base and machine body are rigidly connected, the wire drum doesn't move right and left ,only does front and back , the movement of thread stand right and left makes the wire stretch out and draw back,which makes the weight of the moving parts recuse to 1% of the traditional,lowers the vibration when machine works and the attrition between Transmission parts ,as a result ,highers the stability of the machine.
3)Section cutting, guaranteeing the accuracy
The wire consumption mainly focuses on the large current and big pulse width of the rough process ,the consumption in Semi-finishing process is 1/3 of the rough process ,while ,in precise process,it is below 0.001mm.During section cutting process ,machine works for a long time , its wire surface in the precise process still can keep its roughness well and circle degree.Thus,this machine makes up the defect that the accuracy and surface roughness of the workpiece are lowered when the wire of the traditional medium speed machine works for a long time , our machine working effect can compare favourably with the cnc slow speed wire cutting EDM .
4)Easy operation
The Position of the operator and the wire drum changes from the vertical to the parallel, so ,it's much more convenient to thread wire and don’t need to move to the left of the machine to fix the wire .
5)Automatic tightening wire, improved effect
The machine is installed Constant tension mechanism, so the wire tension stays the same during the whole process and don't need to tighten wire manually as the traditional.
Confirm the purchase
1. Sign the contract
After the business contract signed standards,When receive your 30% deposit from the company, contract comes into force,Your order will be made by your business manager and engineer the entire tracking for you.
2. Arrange production
The sales manager to fax receiving your sign a good contract,Start the system production process for production.
3. The delivery
Production is completed in the process of delivery,Before the start,According to the industry standard,The remaining 70% balance need to receive you,It is recommended that you buy wooden frame outer packing,Prevent damage produced in the process of collision.
4. Check the acceptance
keep your phone open,Convenient to contact you forwarder company,Receive machine,please check:
- If the outer packing damage, leakage erc, and if the goods damaged;
- Check the packing list,the product literature and warranty cards if they is integrity;
- Examine the content of the packing list,the product quantity to both consistent,and accessories;
- Machine tool details if they 're normal, If have the trace of replacement and maintenance, If have other effects use of the problem.
If happens above declare,please take pictures and contact us immediately.
If you have some more problems
please contact us.......
