[ DATAN ] Cycle Type Oil Cooling Machine

[ DATAN ] Cycle Type Oil Cooling Machine thumbnail-1
[ DATAN ] Cycle Type Oil Cooling Machine thumbnail-2
[ DATAN ] Cycle Type Oil Cooling Machine thumbnail-3
[ DATAN ] Cycle Type Oil Cooling Machine thumbnail-4
[ DATAN ] Cycle Type Oil Cooling Machine thumbnail-5
[ DATAN ] Cycle Type Oil Cooling Machine thumbnail-6
[ DATAN ] Cycle Type Oil Cooling Machine photo-1
[ DATAN ] Cycle Type Oil Cooling Machine photo-2
[ DATAN ] Cycle Type Oil Cooling Machine photo-3
[ DATAN ] Cycle Type Oil Cooling Machine photo-4
[ DATAN ] Cycle Type Oil Cooling Machine photo-5
[ DATAN ] Cycle Type Oil Cooling Machine photo-6
US$ 500 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Cooler
Place of Origin:
Zhejiang, China
Brand Name:
DATAN
Contact Supplier Request Quote Chat Now
Hangzhou Datian CNC Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Cooler
Place of Origin Zhejiang, China
Brand Name DATAN
Model Number TO
Certification CE, CSA, GS, ROHS, UL
After-sales Service Provided Overseas service center available

Cycle type Oil cooling machine

Advantages

1  Produced TNP Oil Cooler totally according to costom's requirement

2  Made with full durable and thick high quality copper

3  Pressured tested and guaranteed

4  More sized to choose

5  Our technology from Japan

6  We have 25 years experience in manulacture and use of oil cooling machine



Specification

Cycle type Oil cooling machine Parameter(1)

  Model No.  TO-06P(T)  TO-08P(T)  TO-10P(T)  TO-15P(T) TO-20P(T)   TO-30P(T)
   Cooling
capacity 		 W  600 800  1000  1500  2000  3000
  KCAL/H  504 672 840 1260 1680 2520
 Main power      1Ø 220V 50Hz      3Ø 220/380V 50Hz    3Ø 220/380V 50Hz   3Ø 220/380V 50Hz
  3Ø 220/380V 50Hz
  Total power  W  550  700  650/850  950/1000  1100/1200  1400/1550
   Temperature
control 		 A        Thermostat type(10-40℃)
 B        Difference temperature type(-10-10℃)
    Electrical machine
(W)

 Compressor

 315  462  415/620  710/790  710/790  980/1147
 Pumping         200     370
 Fun
 Pump Flow   L/min 3.7     6.7  12  16.5
     Using temperature range Indoor temperature(℃)          10-40℃(Standard)   10-40℃(Standard) 10-40℃(Standard)
  10-40℃(Standard)   10-40℃(Standard)
Night temperature(℃)          10-45℃   10-45℃   10-45℃
  10-45℃   10-45℃
   Oil viscosity range Hydraulic oil,Lubricating oil 10-300cSt
   Inlet and outlet of
pipe diameter 		  Import      PT 1/2″    PT 3/4″
  Export      PT 1/2″    PT 3/4″
   Capacity of tank(Optional)   9L   15L   15L   18L   26L   36L
boundary dimension
(mm)
W*D*H 		   No fuel tank    350*125*660    370*445*770    370*435*770    420*435*770    430*520*890   460*520*975
  460*520*975
 With fuel tank  350*425*660    350*425*660    370*445*770    370*480*920    426*570*1080   460*565*1175
  460*565*1175
Weight(Kg)   No fuel tank  34  55  57.4  70  90  104
With fuel tank  37  60  60  76 101  119





Parameter(2)

Model No. TO-45P(T) TO-60P(T) TO-90P(T) TO-120P(T) TO-150P(T) TO-180P(T)
Cooling
capacity 		W 4500 6000 9000 12000 15000 18000
KCAL/H 3780 5040 7560 10080 12600 15120
Main power 3Ø 220/380V 50Hz 3Ø 220/380V 50Hz
Total power W 2450/2850 3400/3450 5300 5700 6900 8100
Temperature
control 		A Thermostat type(10-40℃)
B Difference temperature type(-10-10)
Using
temperature
range 		Indoor temperaturE(℃)

10-40℃(Standard)


Night temperature(℃)

10-45℃


Oil viscosity range  Hydraulic oil,Lubricating oil 10-300cSt
Inlet and outlet of
pipe diameter 		Import PT 1″ PT1-1/4″ PT 2″
Export PT 1″ PT1-1/4″ PT 1-1/4″
Capacity of tank(Optional) 47L 73L
boundary dimension
(mm) 		No fuel tank 490*600*1105 525*580*1135 600*620*142 1030*700*1390 1030*700*1390 1030*700*1390
With fuel tank 490*645*1355 630*525*1610
Weight(Kg) No fuel tank 130 160 181 248 262 285
With fuel tank 145 180

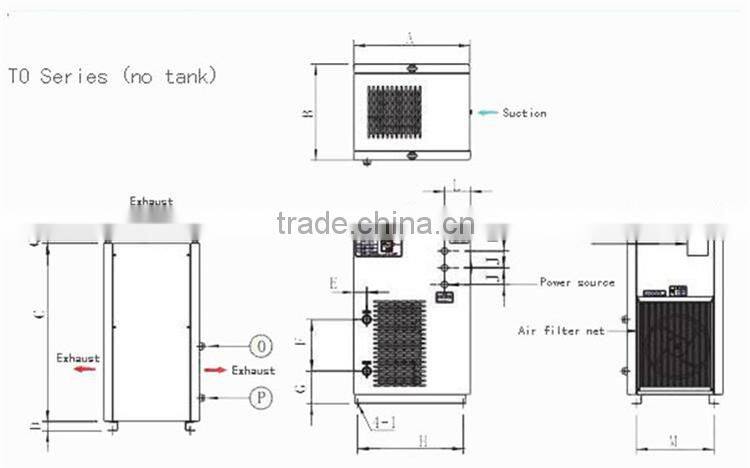

Dimension chart of Cycle type Oil cooling machine



                                                         TO Series (no tank)



Model A B C D E F G H I J K L M
TO-06PT 380 350 580 40 54 100 390 360 Φ12 40 70 100 300
TO-08PT 445 370 690 40 160 294 200 360 Φ12 65 85 100 300
TO-10PT 480 370 840 40 50 200 280 410 Φ12 65 135 100 300
TO-15PT 480 420 840 40 50 200 280 410 Φ12 65 135 100 350
TO-20PT 565 426 985 50 55 200 340 380 Φ12 65 185 100 380
TO-30PT 565 460 1080 50 70 200 405 410 Φ12 50 240 100 410
TO-45PT 645 490 1260 50 70 200 525 500 Φ12 50 240 100 460
TO-60PT 690 525 1477 146 146 350 647 / / 50 240 100 /

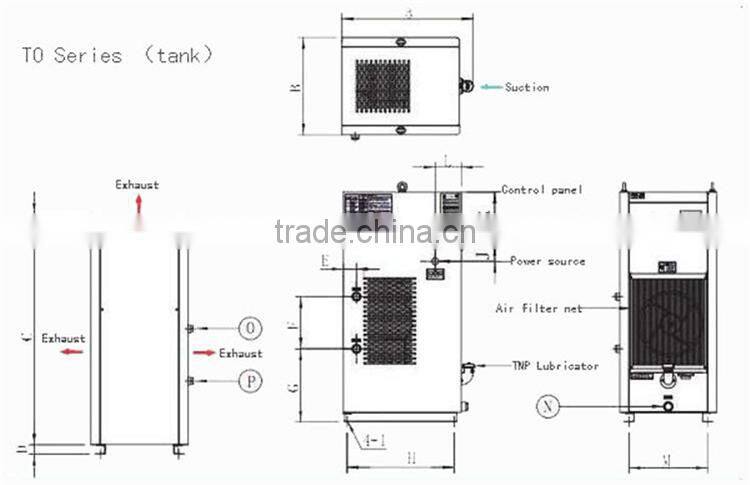

                                                                     TO Series(with tank)





Product Description

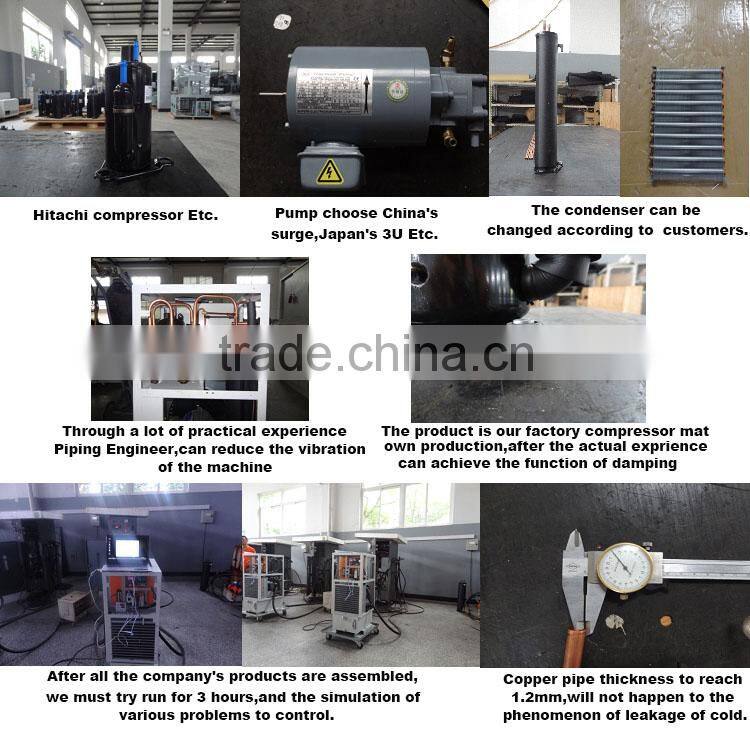

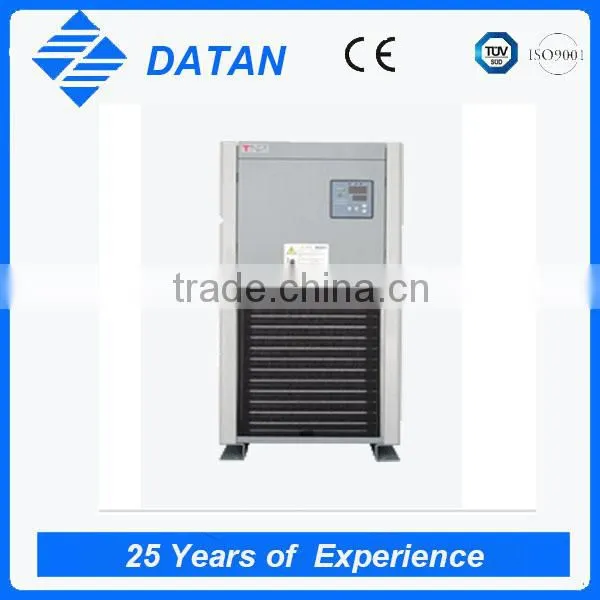

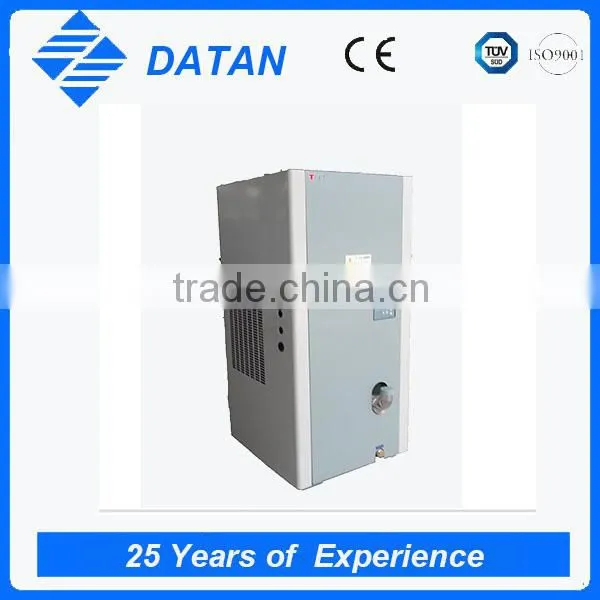

Cycle type Oil cooling machine Detail piceture

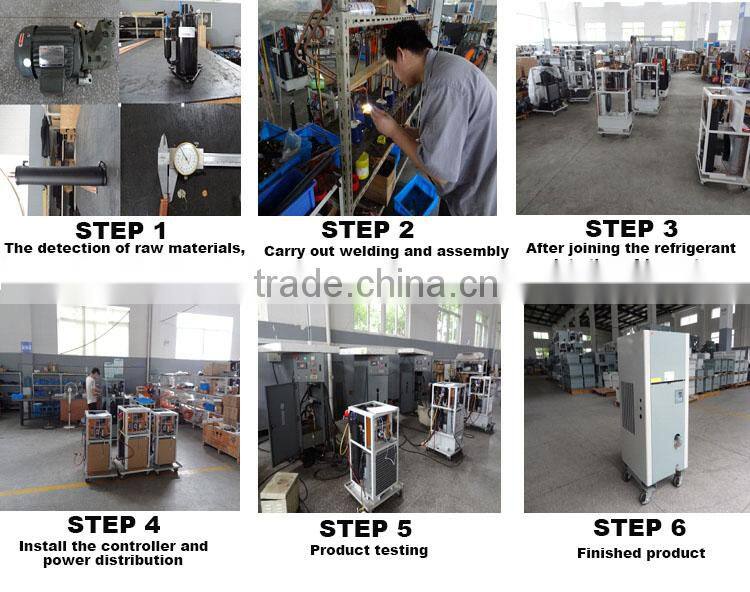

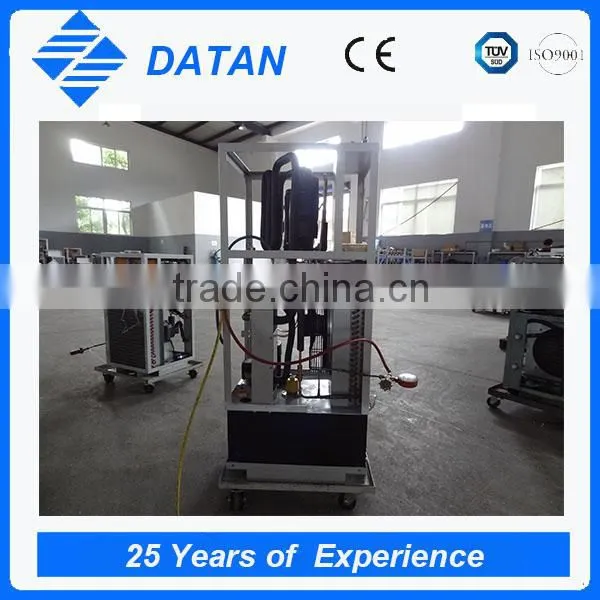

Cycle type Oil cooling machine Production process

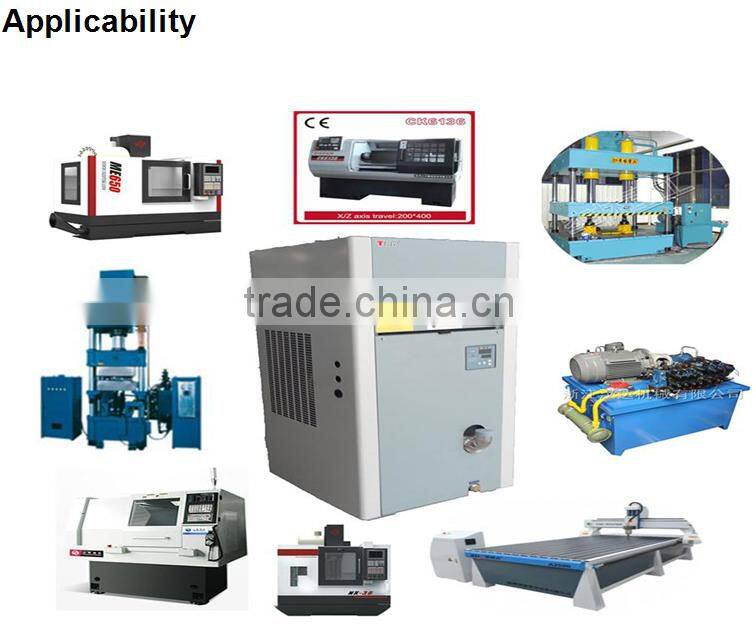

Application

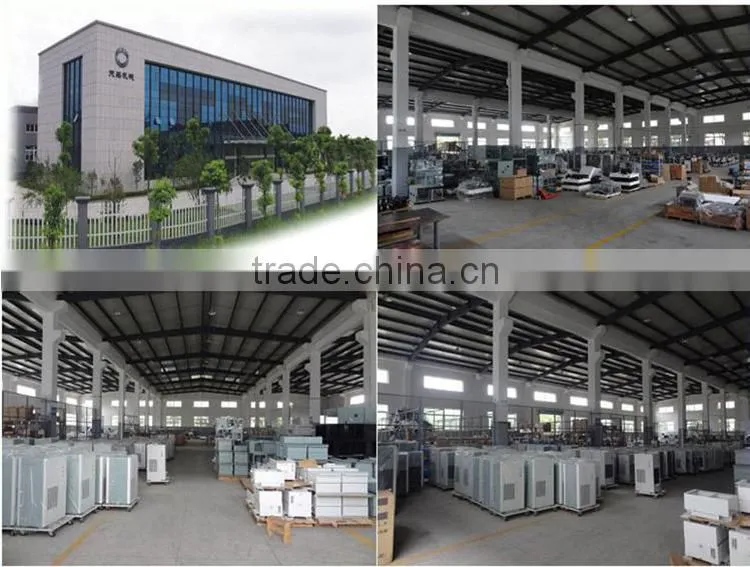

Company information

Company history

1991 --- Our general manager to join Japan shenwei enterprise management

1994 --- As a representative of the Japanese shenwei company, general manager of our company to join habo company in Taiwan.

1998 --- As Taiwan habo company general manager of our company's technical director to lead the company to develop new products.

2001 --- As Taiwan habo company general manager of our company clients create habo Chinese companies in mainland China.

2009 --- General manager of our company create TNP machinery co., LTD.

2014 --- Our company to carry out foreign trade business.



Certification
