US$ 5,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
![[ DATAN ] Advanced Educational Cnc Lathe Machine](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[ DATAN ] Advanced Educational Cnc Lathe MachineUS$ 5,000 - 10,000MOQ: 1 Set -
[ DATAN ] High Quality Cnc Machine for Alloy WheelsUS$ 5,000 - 10,000MOQ: 1 Set
-
[ DATAN ] Good Quality Cnc Lathe Bar FeederUS$ 5,000 - 10,000MOQ: 1 Set
-
[ DATAN ] Global Warranty Lathe Machine CncUS$ 5,000 - 10,000MOQ: 1 Set
-
[ DATAN ] 2016 Reformed Cnc Turning LatheUS$ 5,000 - 10,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
630
Place of Origin
Zhejiang, China
Brand Name
DATAN
Model Number
CK
Voltage
380V
Power(W)
2.2~11kw
Dimension(L*W*H)
optional
Weight
Option
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
taiwan cnc lathe machine price

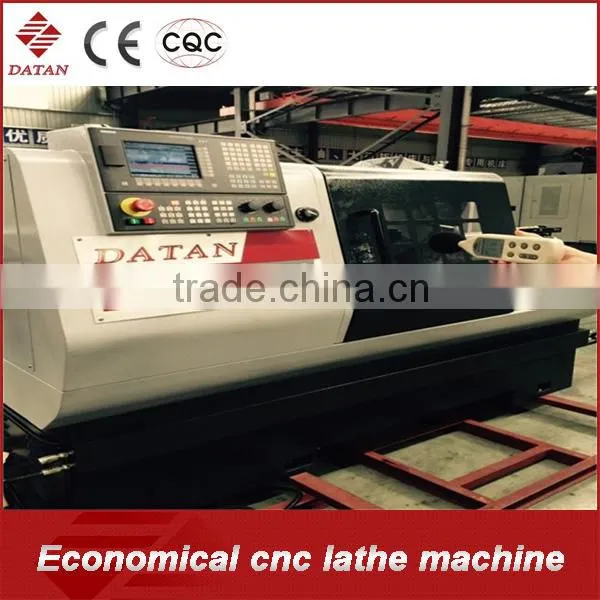

CK Series taiwan cnc lathe machine price
- The machine features horizontal straight bed design and is in compliance with safety standards. Main machine bodies, ie. bed, support leg, etc are of resin sand casting with timing treatment, which guarantees superb stability of the machine.

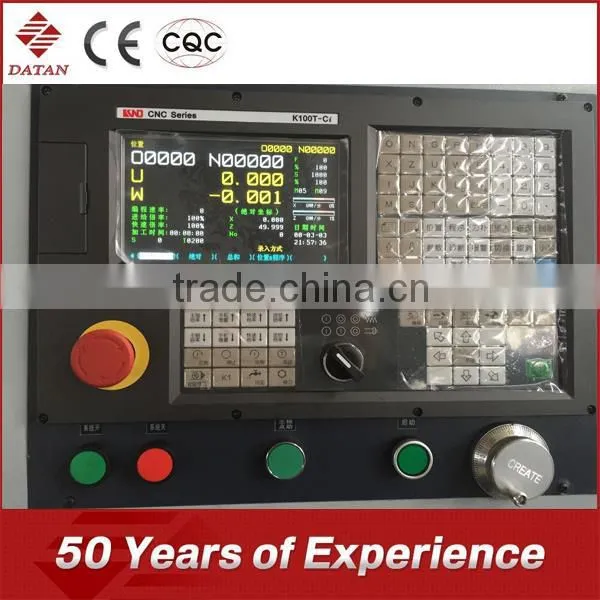

- Horizontal and cross travels are driven by servo motors together with high precision ball screws and high rigid precision bearings. Pulse encoders are equipped to form a semi-closed-loop control. High frequency induction hardened guideways bonded with Turcite-B material enable fast response of moving axes, high accuracy and long machine life.
- With unique auto gear changing mechanism, the machine enjoys a short tool setting time and high working efficiency.
Machine parameters
| Model No | CK0625 | CK6130 | CK6136 | CK6140 | CK6150 | CK6163 | |
Max Rotary Diameter on Bed | (mm) | 250 | 300 | 360 | 400 | 500 | 630 |
Rotary Diameter on Slide | (mm) | 110 | 150 | 180 | 200 | 280 | 330 |
| Max Length for workpiece | (mm) | 300 | 300 | 750 | 750 | 1000 | 1500 |
| Width of Guiderail | (mm) | 220 | 260 | 310 | 340 | 440 | 600 |
| Spindle Speed | (r/min) | 300-3000 | 300-3000 | 200-2500 | 200-2000 | 13105/55420 /220-160 | 770/20170/50-400/125-1000 |
| Spindle Taper | (mm) | Φ44 | Φ48 | Φ40 | Φ52 | Φ80 | Φ105 |
| Main Motor Power | (kw) | 2.2kW | 3.0kW | 5.5kW | 5.5kW | 7.5kW | 11kW |
| Z Travel | (mm) | 220 | 400 | 800 | 800 | 1000 | 1500 |
| X Travel | (mm) | 300 | 200 | 180 | 235 | 300 | 400 |
Driving Motor Torque X/Z | N.M | Servo 4/6 | Servo 4/6 | Servo 5/7.7 | Servo 5/7.7 | Servo 5/7.7 | Servo 10/18 |
Repeat Position Precision X/Z | (ISO) | 0.012/0.016 | 0.008/0.01 | 0.012/0.016 | 0.009/0.01 | 0.012/0.016 | 0.009/0.014 |
| 4 work position Carriage | Standard | Standard | Standard | Standard | Standard | Standard | |
| Tool Rack | On requirement | On requirement | On requirement | On requirement | null | null | |
| Tool Size | (mm) | 12×12 | 20×20 | 20×20 | 25*25 | 25*25 | 40*40 |
| Tool Change time | 1.7s | 1.7s | 2s | 2s | 2s | 3.3s | |
| Tailstock Sleeve travel | null | 100 | 120 | 130 | 150 | 270 | |
Tailstock Sleeve Diameter/Taper | null | Φ50/MT4 | Φ60/MT4 | Φ60/MT4 | Φ75/MT5 | Φ105/MT6 | |
| Outer Size | (mm) | 1480x1130 | 1630x935 | 2250x1170 | 2200x1200 | 2775x1585 | 3820x2000 |
| Total Weight | 1000 | 1200 | 1600 | 1800 | 2800 | 4800 | |
taiwan cnc lathe machine price
Product Description
Finished parts
Related Products
Company Information
FAQ
1. Confirm the purchase
- FOB Shanghai / ningbo or CIF, LCL or FCL shipping.
- Payment terms: T/T or L/C or other ways contact us.
- Package: Plywood case.
- Delivery time: Within 20 working days after the down payment. (Actual delivery time depends on actual order.
2. Check the acceptance
Receive machine,please check:
- Examine the content of the packing list,the product quantity to both consistent,and accessories;
- Machine tool details if they 're normal, If have the trace of replacement and maintenance, If have other effects use of the problem.
If happens above declare,please contact us immediately.
mini cnc milling machine for sale
3. Customer service
- Warranty period: We can send you the machines' components for free in the first one year.
- After-sell service: We can supply site commissioning and training abroad for the buyer, but the buyer needs to pay the relevant expense.
- The buyer will pay for:Air tickets, Food, board & lodging, and local transportation in buyer’s country.
taiwan cnc lathe machine price
——————————————————————————————————————
Tel/Whatsapp:0086 17858834226
WeChat: 732023468
Skype: DATAN.harry
