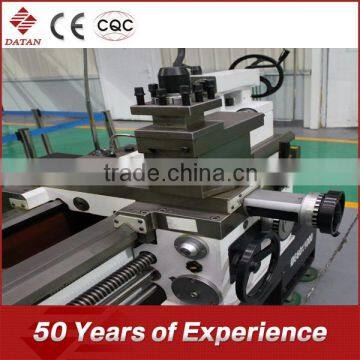

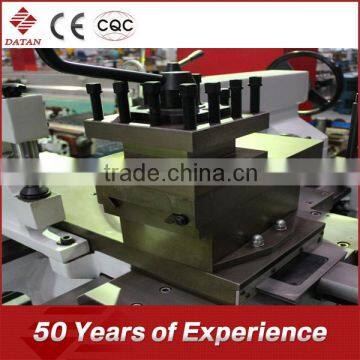

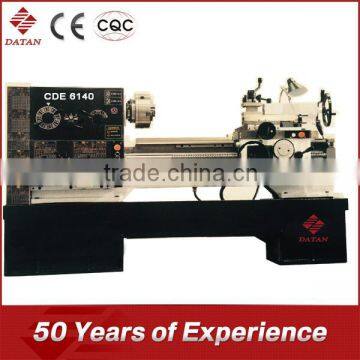

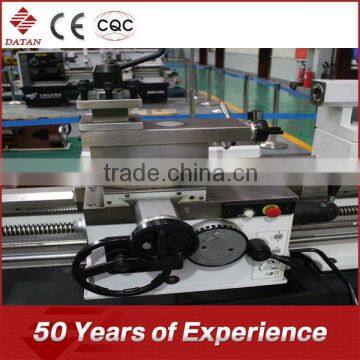

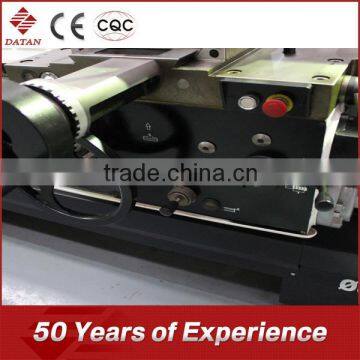

[ DATAN ] 2016 Reformed Small Metal Lathes for Sale
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale thumbnail-1](https://img11.fr-trading.com/2/1_376_44168_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale thumbnail-2](https://img11.fr-trading.com/2/1_15_44410_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale thumbnail-3](https://img11.fr-trading.com/2/1_987_44522_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale thumbnail-4](https://img11.fr-trading.com/2/1_974_44321_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale thumbnail-5](https://img11.fr-trading.com/2/1_420_44483_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale thumbnail-6](https://img11.fr-trading.com/2/1_363_44219_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale photo-1](https://img11.fr-trading.com/3/1_376_44168_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale photo-2](https://img11.fr-trading.com/3/1_15_44410_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale photo-3](https://img11.fr-trading.com/3/1_987_44522_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale photo-4](https://img11.fr-trading.com/3/1_974_44321_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale photo-5](https://img11.fr-trading.com/3/1_420_44483_600_600.jpg)
![[ DATAN ] 2016 Reformed Small Metal Lathes for Sale photo-6](https://img11.fr-trading.com/3/1_363_44219_600_600.jpg)
US$ 3,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
![[ DATAN ] 2016 New Mini Metal Lathe China](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[ DATAN ] 2016 New Mini Metal Lathe ChinaUS$ 3,000 - 15,000MOQ: 1 Set -
[ DATAN ] Factory Sale Conventional Lathe MachineUS$ 3,000 - 15,000MOQ: 1 Set
-
[ DATAN ] Advanced Manual Turret LatheUS$ 3,000 - 15,000MOQ: 1 Set
-
[ DATAN ] Good Quality Mini Lathe for MetalUS$ 3,000 - 15,000MOQ: 1 Set
-
[ DATAN ] Global After Sales Metal Spinning LatheUS$ 3,000 - 15,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
1000 mm
Place of Origin
Zhejiang, China
Brand Name
DATAN
Model Number
CDE
Voltage
380V
Power(W)
5.5~15 kw
Dimension(L*W*H)
optional
Weight
optional
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
small metal lathes for sale
Machine advantage
- This machine is very suitable for the use of batch processing of production and machine repair workshop.
- The processed dimension accuracy of parts can reach level IT7 on this machine, and surface roughness can reach level 1.6.
- The machine worktable Configuration with fast moving device, overload safety device, vertical and horizontal cross handle nut handle.
Machine parameters
| PRODUCT NAME | Unit | CDE6140 | CDE6150 | CDE6166 | CW6163 | CW6180 | CW61100 |
| Max. Swing over bed | mm | Φ400 | Φ500 | Φ660 | Φ630 | Φ800 | Φ1000 |
| Max. Swing over cross slide | mm | Φ220 | Φ290 | Φ430 | Φ350 | Φ480 | Φ710 |
| Max. Swing over in gap | mm | Φ700 | Φ760 | Φ910 | Φ800 | Φ1000 | Φ1230 |
| Gap length(from spindle nose) | mm | 260 | 350 | ||||
| Max. Workpice length | mm | 750/1000/1500/ 2000/2300 |
1000/1500/2000/ 3000/4000/5000/ 6000/8000 |
1000~ 5000 |
|||
| Spindle nose | - | C6 | C11 or D11 | ||||
| Spindle bore | mm | Φ52 | Φ100(C11) or Φ105(D11) (OP:Φ130) | ||||
| Chuck size | - | Φ315 | Φ400 | ||||
| Taper of spindle bore | - | MT6 | |||||
| Max. Spindle torque | N·M | 1586 | 2400 | ||||
| Max. spindle ranges | rpm | 11-1400(22 Speeds) | 7.5-1000(18 Speeds) | ||||
| Spindle centre height | mm | 220 | 250 | 325 | 315 | 400 | 515 |
| Spindle motor power | - | 7.5KW/1440rpm(50Hz) OP:5.5KW/960rpm(60Hz) |
11KW/1460rpm(50Hz) OP:15KW/1460rpm(50Hz) |
||||
| Tailstock quil diameter | mm | Φ75 | Φ100 OP:Φ125 | ||||
| Tailstock quil travel | mm | Φ150 | Φ240 | ||||
| Longitudinal feed | 0.035~2.842mm/r(63 Speeds) 0.0013~0.1057in/r(63 Speeds) |
0.1~1.52mm/r(64 Speeds) | |||||
| Cross feed | 0.009~0.804mm/r 0.0003~0.0304in/r |
0.05~0.76mm/r(64 Speeds) | |||||
| Metric pitch | mm | 0.5~240(66 Kinds) 0.5~160(43 Kinds) |
0.5~240(52 Kinds) 1~256(52 Kinds) |
||||
| Modulal pitch | mm | 0.25~120(57 Kinds) 0.25~80(38 Kinds) |
0.5~120(53 Kinds) 0.5~128(57 Kinds) |
||||
| Imperial pitch | TPI | 80~1/4(49 Kinds) 80~1/4(47 Kinds) |
28~1(34 Kinds) 32~1(67 Kinds) |
||||
| Diametral pitch | DP | 160~7/16(50 Kinds) 160~7/16(48 Kinds) |
28~1(24 Kinds) 32~1/8(57 Kinds) |
||||
| Max. Tool shank size | mm | 25x25 | 30x30 | ||||
| Travel of top slide | mm | 150 | 200 | ||||
| Swivel angle of top slide | - | ±45° | ±90° | ||||
| Overall dimensions (LxWxH) | Details please consult | ||||||
| Machine weight | |||||||
small metal lathes for sale
Product Description
Finished parts
Related Products
Company Information
FAQ
1. Confirm the purchase
- FOB Shanghai / ningbo or CIF, LCL or FCL shipping.
- Payment terms: T/T or L/C or other ways contact us.
- Package: Plywood case.
- Delivery time: Within 20 working days after the down payment. (Actual delivery time depends on actual order.
2. Check the acceptance
Receive machine,please check:
- Examine the content of the packing list,the product quantity to both consistent,and accessories;
- Machine tool details if they 're normal, If have the trace of replacement and maintenance, If have other effects use of the problem.
If happens above declare,please contact us immediately.
mini cnc milling machine for sale
3. Customer service
- Warranty period: We can send you the machines' components for free in the first one year.
- After-sell service: We can supply site commissioning and training abroad for the buyer, but the buyer needs to pay the relevant expense.
- The buyer will pay for:Air tickets, Food, board & lodging, and local transportation in buyer’s country.
small metal lathes for sale
——————————————————————————————————————
