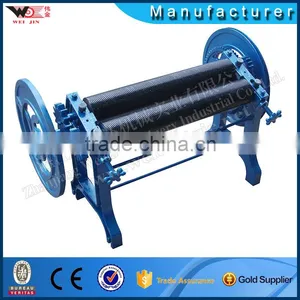

rss nature rubber sheet rolling machine price
Product Description
| Product Name | rss nature rubber sheet rolling machine price |
| Model No. | DY-100*610 |
| Dimensions | 1068mm*600mm*820mm |
| Weight | 200kg |
| Raw materials | Rubber |
| Color | Customized |
Type |
rss nature rubber sheet machine in kerala |
| Capacity | 100kg/h |
| Power | 370w |
| Voltage | as requested |
| Roller Size(Diameter*length) | 100mm*610mm |
| Screw Pitch | 6mm |
| After-sales service provided | Engineers available to service machinery overseas |
| Brand | WEIJING |
| Features | High quality, compact structure, best factory price, high efficiency,low noise,etc. |
| Quality Warranty | one year |
| Certification | CE |
| Pyament Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alipay |
Summary:
Manual rubber sheeting machine used for smoke rubber line, make latex coagulum to be certain size smoke rubber sheet, which is produced smoke rubber main equipment. This machine need little area, high production rate and stable product quality.
Manual rubber sheeting machine has some feature as simple structure & installation, stable & reliable, use for smoke rubber production widely.
Work Principle:
Manual rubber sheeting machine consists of handle wheel, drive gear, adjusting mechanism, motor and roller. Manual work or motor brings hand wheel to work, rolls smoke rubber through gear enlarge torque and get the ideal dimension smoke rubber.
Main technical data:
| Type | SY-100 X 610 | DY-100 X 610 |
| Roller size ( Diameter×Length) | 100mmx610mm | 100mmx610mm |
| Screw pitch | 6mm | 6mm |
| Lead | 96mm | 96mm |
| Front & back roller Ratio | 1:1 | 1:1 |
| Capacity | 100kg/h | 100kg/h |
| Material Maximum Size ( Thickness X Width) | 40mmx380mm | 40mmx380mm |
| Screw thread number | 16 | 16 |
| Motor power | 370w |

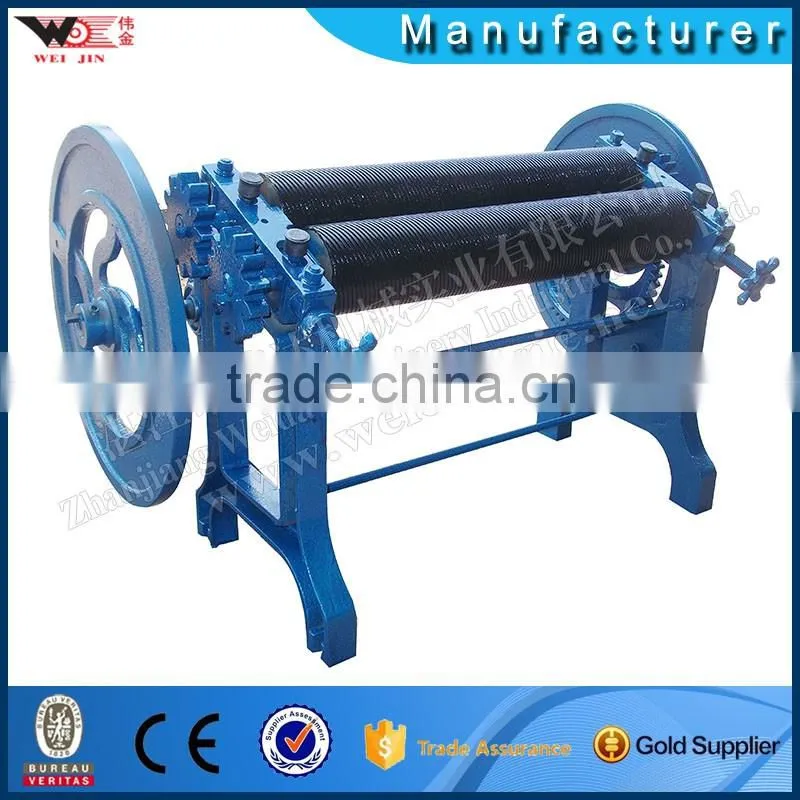

No.1 rss nature rubber sheet roller machine kerala detial show:
No.2 packaging &shipping:
1. Superior Quality
Our Quality Control team ensures that nothing gets put in stock which is not of the highest quality standards. We inspect all incoming goods before they are put on the warehouse shelves.
2. Best Prices, Best Services
100% Factory price.No minimum order restriction.Bulk orders personally quoted even better prices.
You can enjoy an overall series of professional services involving technology consultant, design, production, installation, testing and training.
Our engineers are availble to service machinery overseas if in need.
3. About us
We are a leading manufacturer in the line of rubber processing machine which was established in 2004 in China, have our own factory.
We export our proucts to Europe, America, Asia, Middle East and Africa etc.
We update our products constantly.
We can produce customers own model base on different requirements, also professional OEM service.
We provide quality pre-sale service & after-sale service.
Zhanjiang Weida Machinery Industrial Co., Ltd. is a nature rubber processing machine manufacturer which was established in 2004 and integrates development, design, production, sale and service. We mainly offer rubber processing machines such as Rubber Prebreaker Machines, Rubber Shredder Machines, Twin Helix Breaking & Extruding Washing Machines, Rubber Cutter Machines, Rubber Cleaning Machines, and Belt Conveyer Machines. It is well-known that our patent product-Twin Helix Breaking & Extruding Washing Machines feature low power and high capacity. We specialize in design, produce and install the whole rubber production line ( 3L, 5L, TSR10, TSR20, SMR10, SMR20).
We have established long-term business relations with the customers in Europe, America, Asia, Middle East and Africa etc.We have won a good reputation and trusts from our customers. We always pursue improvement and good service. With our backbone of employees and advanced technical equipment, we have established a perfect marketing system. Moreover, our organization system is improved constantly.
Now we have a big market all over the world. We sincerely hope that we can build up long-term good business relations with you based on mutual benefits.
