Popular Model: NT-X1 32bit USB Interface Laser Wired Barcode Scanner

Name: Popular Model: NT-X1 32bit USB Interface Laser Wired Barcode Scanner
Brand: NETUM
SKU: 131014519

US$ 1 - 20 MOQ: 10 Pieces

Key Specifications

Products Status:

Stock

Type:

Barcode Scanner

Scan Element Type:

CMOS

Guangzhou Netum Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Barcode Scanner

Scan Element Type CMOS

Colour Depth 32 Bit

Interface Type USB

Max Paper Size A4/a4

Optical Resolution 0.076mm(3mil)

Scan Speed 260 Time/sec

Brand Name NETUM

Model Number NT-X1

Place of Origin Guangdong, China

Product Description

Product Overviews

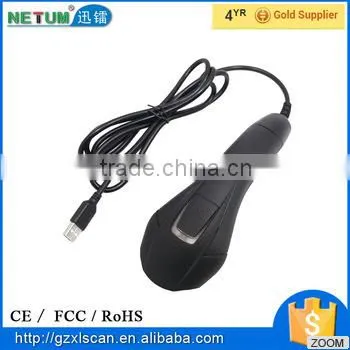

Netum X1 32bit USB interface laser wired barcode scanner

unctionality Item	Parameter
Type of illuminant	650nm laser
CPU	32bit
Bit error rate (BER)	1/8 million
Safety performance	Meet the Grade II National Criteria for Laser Safety
Barcode types	1D codes, such as EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5, Interleave 2 of 5,Matrix 2 of 5,MSI, Chinese postcode etc.
Supported interfaces	USB
Scanning method	Manual
Transmission rate	RS232 Baudeate:2400-38400
Resolution (pcs0.9)	0.076mm(3mil)
Depth of field	10-800mm
decode speed	260 times/second
Reading preciseness	0.40-0.825mm
Reading distance	10-800mm
Reading angle of elevation	60°
Reading angle of dip	45°
Operating temperature	-20°C-45°C
Storage temperature	20°C-45°C
Operating humidity	5%-85%
Storage humidity	5%-85%
Power voltage	5V
Working current	57mA
Static current	36mA
Fall test	2 meter
Light intensity	Daylight, 4000Lux
Electromagnetic interference	Complying with en50081, par1 criteria
External electromagnetic interference resistance	Complying with en50081, par1criteria
Dustproofing and waterproofing	Complying with en50081, par1 criteria
Exterior dimension	LengthWidthHeight: 190mm * 70mm * 35mm
Materials	electronic
Weight	300g
