Help CenterHigh Performance Waterproof: NT-1208 Automatic Laser Barcode Scanner High Sense Auto Scanning Machine
Related Products
-
Summer Promotion: NT-2012 1D Wired High Quality Laser Pos USB Barcode ScannerUS$ 1 - 11MOQ: 10 Pieces -
Hot Model: NT-2016 Portable Autosense Bar Code Reader, Handheld Automatical USB Laser Barcode ScannerUS$ 1 - 28MOQ: 10 Pieces
-
High Performance: NT-2015 1D Wired Laser Usb Barcode ScannersUS$ 1 - 15MOQ: 10 Pieces
-
NT-S2 CCD USB Quakeproof High Quality Barcode ScannerUS$ 42 - 42MOQ: 1 Piece
-
NT-S2 Quakeproof High Quality Handheld Wired CCD Barcode ScannerUS$ 1 - 42MOQ: 1 Piece
Hot Selling:
Specifications
Factory direct low price
Multiple interface usb
200 times/sec rapid speed
Features:
1.OEM, lowest price
2. 32 bit CPU
3.CE FCC compliance
4.RS232 /USB/PS2 interface

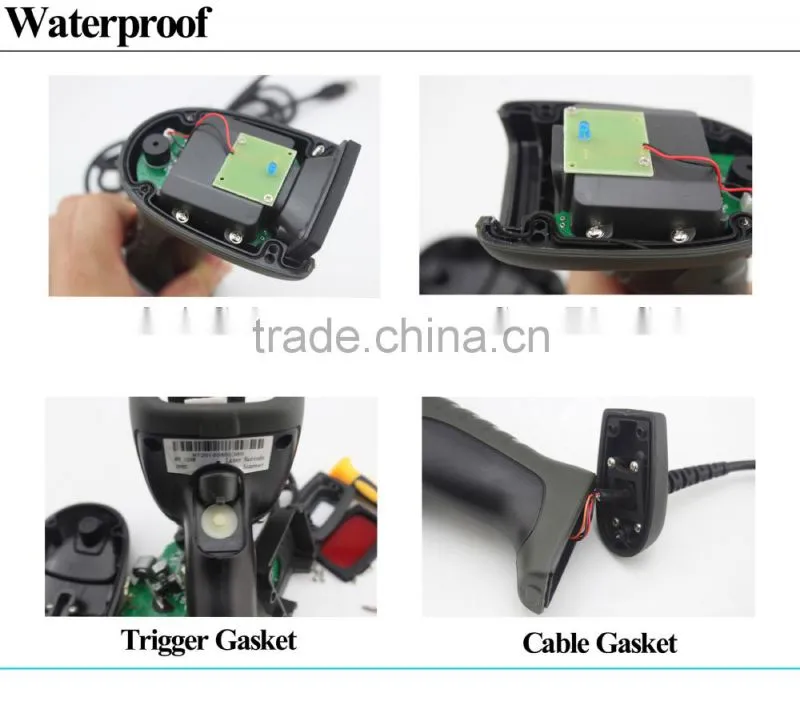

5.full quakeproof, waterproof, dustproof, antiknock design.

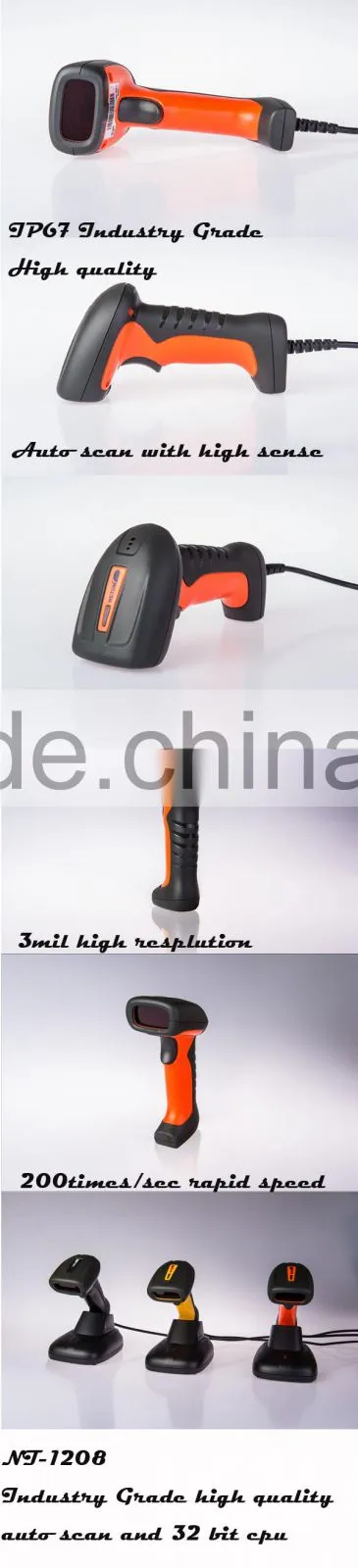

6.IP67 Industrial Grade, drop lots of time from 7 high meters still work normally, work under water for more than 30 minutes.
NT-1208 Wired Laser Bar code Scanner | |
Specifications: |
|
Performance | |
Type of illuminant |
650nnm laser ( safe visible light ) |
Supported interfaces |
RS232 / PS2 keyboard / USB Support HID SPP protocol |
Decode Capability |
Code 39, Full ASCⅡ, Code bar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 93, Code 128, Code 32, Standard code 39, EAN 128, MSI, EAN 8&13, UPCA & E, Plessey, Databar14, TELEPE, GSI Databar |
Precision |
≥3 mil (0.076 mm) |
Operation |
Manual/Automatic ( auto-induction ) |
Depth of scan field |
10-800mm |
Decode speed |
200 times/second |
Light intensity |
Daylight, 3000-80000Lux Max |
Decode error rate |
Less than 1/8 million |
Print Contrast Signal |
≥20° |
scan angle |
Yaw(Skew)65° & Pitch60° |
Industrial Grade |
IP67, 7 meters Drop Test |
Safety |
Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding |
Mechanical/Electrical | |
Power voltage |
DC 5V |
Current |
Operation 85mA; Idle 36mA |
Scanner Material |
ABS+PC, Flameresistant material |
Physical | |
Exterior dimension |
L*W*H (mm): 169*70*100 |
Materials |
Plastic |
Weight |
235g |
Environment | |
Operating humidity |
5%-95% |
Storage humidity |
5%-95% |
Operating temperature |
-20°C-50°C |
Storage temperature |
-20°C-60°C |
Safety performance |
ROSH class 2 laser product, FCC class B, CE and CCC |
