NT-9800 Wirless Handheld Code Bar Data Collector Terminal with USB interface in Warehousing and Express

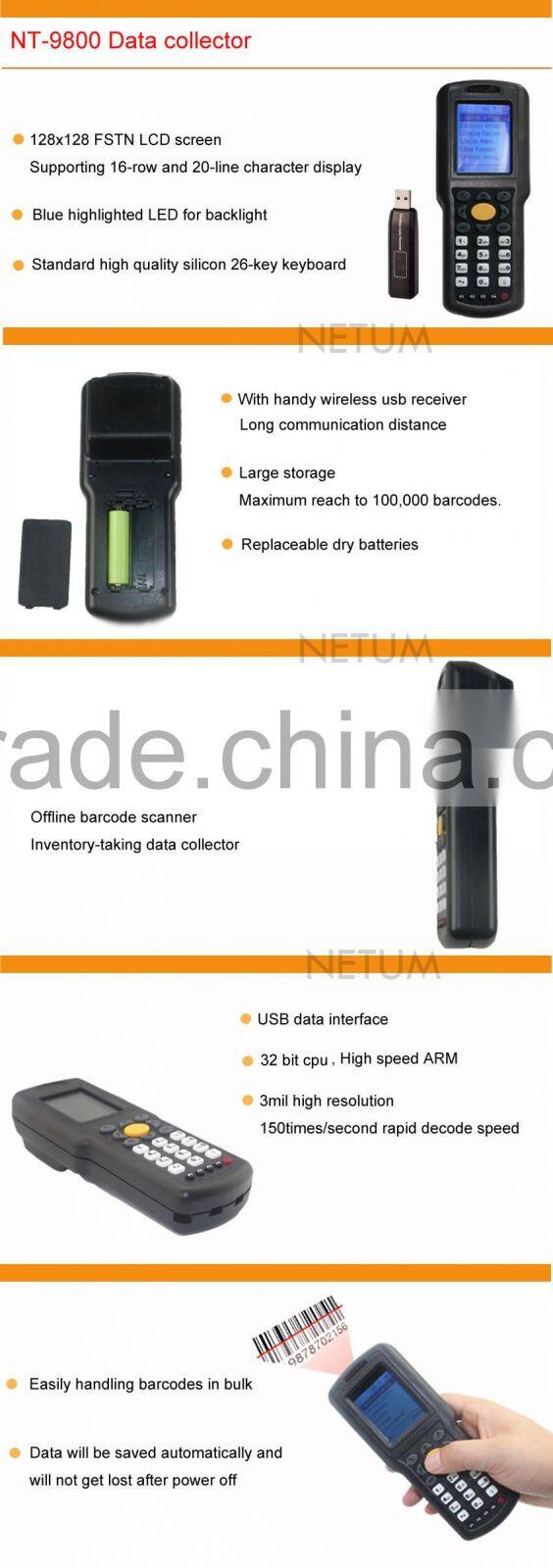

Features:

1. Large storage, a maximum of 100,000 barcode;

2. Function of automatic wireless transmission, offline scan, inventory-taking;

3. Fast and accurate 433Mhz wireless two-way, transmission certification;

4. Screen display of data, easy and fast operation;

5. Data will be saved automatically and will not get lose after power off;

6. Easily handling barcodes in bulk.

Specifications

CPU

32-bit high-speed ARM

Flash memory

4MB

Power supply

1)2pcs AA dry batteries or rechargeable NiMH batteries (best 1600-2400mah NiMH Battery)

2)Supporting USB charging for rechargeable NiMH batteries

3)With remaining power indicator on LCD display

Screen display

128x128 FSTN LCD screen, supporting 16-row and 20-line character display

size & weight

165 x 65 x 45 mm, about 200 g

Keyboard

Standard high quality silicon 26-key keyboard

Standby time

More than six months (starting from 100% remaining power).

Power consumption is lower than most similar devices on the market.

Data protection

Data will be saved automatically and will not get lost when the terminal is powered off.

The user can switch on/off the terminal freely without damaging the data. After switching on,

the screen resumes to the display before last switching off.

Power saving mode

Support automatic powering off when not in use.

Wireless transmission

1) Frequency: 433MHz. Two-way transmission.

2) Maximum wireless transmitting power: +10dB.

3) Wireless receiving sensitivity: -102dB.

4) CRC verification to ensure stable wireless transmission.

5) With wireless signal strength indicator on the LCD display.

6) USB connection with computer.

Scanning depth of field

1 - 800 mm

Light source

650nm red laser

Scanning frequency

150 times / second

Barcode scan width

Adjustable up to 20cm

Decoding capability

EAN13, EAN8, 39 code, 93 code, 128 code, interleave 25 codes (IT25), Codabar, UPCA, UPCE, and etc.

Anti-dropping

Height: no more than 1.2 meters

scanner

Size(L*W*H)

170mm*68mm*40mm

Weight

235g;

Inner Box

1pc/box; 210mm × 140mm ×65mm; 520g

Carton

32 sets/ctn; 26kg/ctn;

880mm×450mm× 420mm

20FT Container

11250pcs; 225ctns

40FT Container

25000pcs; 500ctns
