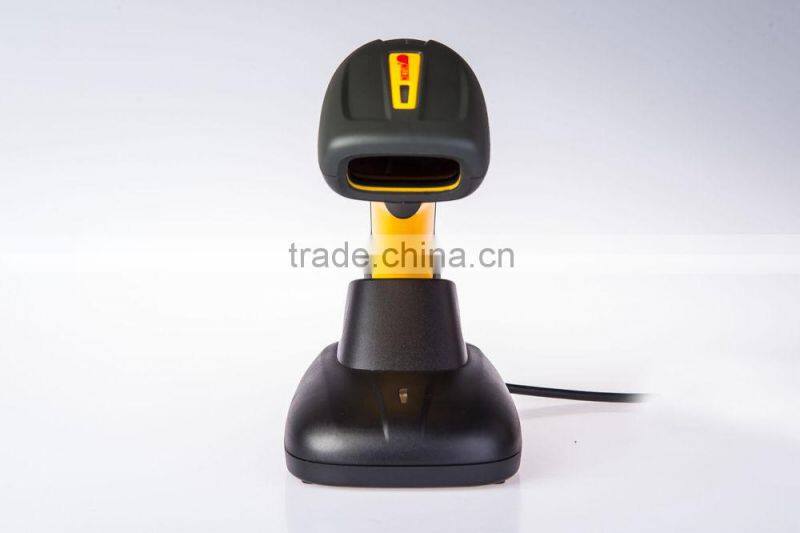

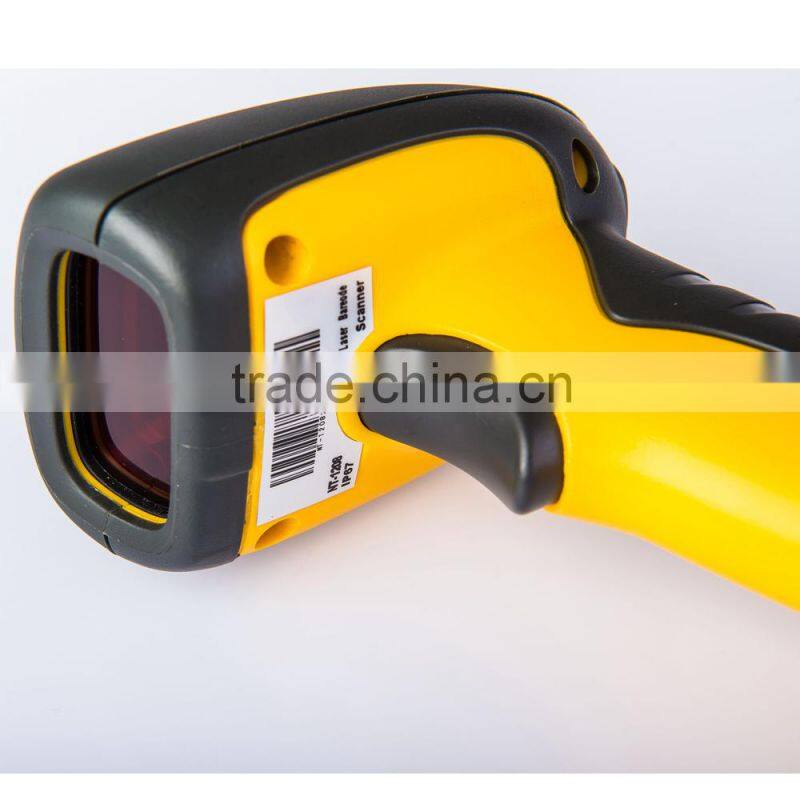

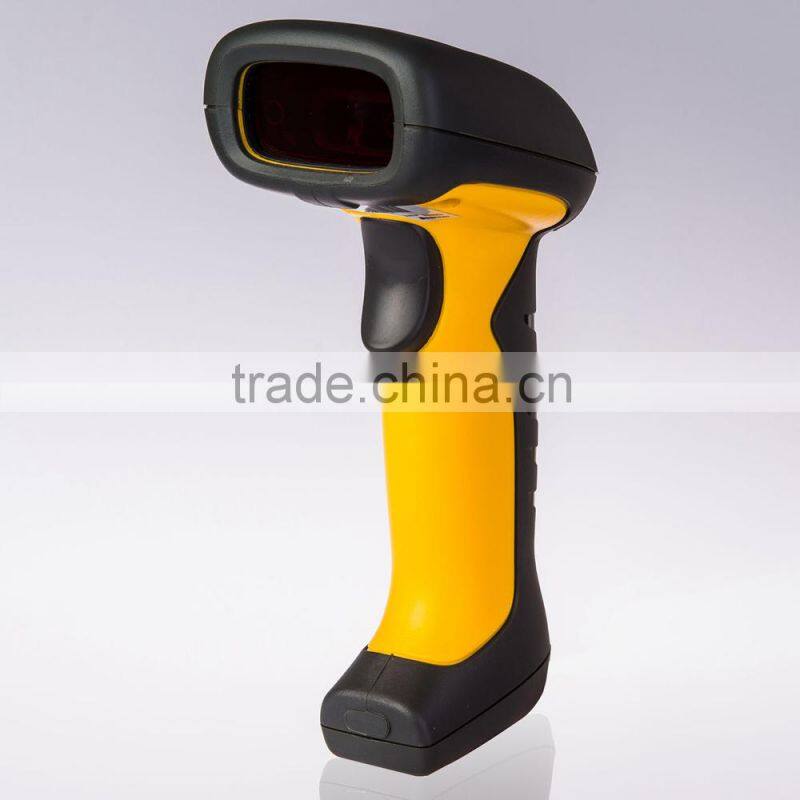

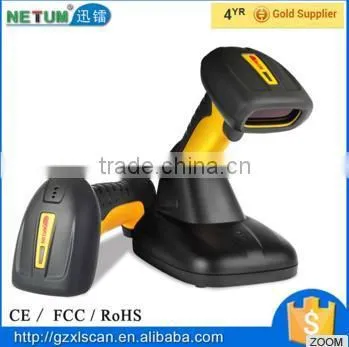

New Products: NT-1209 2D Bluetooth IP67 Industrial Waterproof Handheld Barcode Scanner

NT-1209 2D wireless bluetooth handheld barcode scanners

Performance

Type of illuminant

650nnm laser ( safe visible light )

Decode Capability

1D: Code 39, Full ASCⅡ, Code bar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 93, Code 128, Code 32, Standard code 39, EAN 128,  MSI,  EAN 8&13,  UPCA&E,  Plessey,  Databar14,  TELEPE

2D:  PDF417, microPDF417 and composite codes,  MaxiCode, DataMatrix (ECC 200), QR Code

Supported interfaces

USB only, for  RS232 / PS2 keyboard has no stocks.

Communication distance

Indoor 300m max,  outdoor 500m

Memory

 4M memory, can be extend to 80M

Operation

Manual/Automatic

Precision

≥3 mil (0.10mm)

Depth of scan field

10-800mm

Decode speed

280 times/second

Decode error rate

Less than 1/8 million

Print Contrast Signal

≥30°

Light intensity

Daylight, 4000Lux Max

scan angle

Yaw(Skew)45°& Pitch60°

Safety

Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding

Mechanical/Electrical

Power voltage

DC 5V

Current

Operation 120mA; Idle 10mA

Scanner Material

Eco-friendly, ABS+Rubber

Physical

Exterior dimension

L*W*H (mm): 335*210*90

Materials

Plastic

Weight

805g

Environment

Operating humidity

5%-85%

Storage humidity

5%-85%

Operating temperature

-20°C-45°C

Storage temperature

-20°C-45°C

Safety performance

ROHS class 2 laser product, FCC class B and CE
