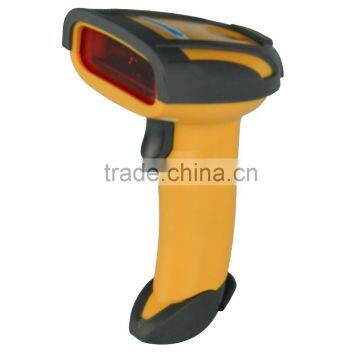

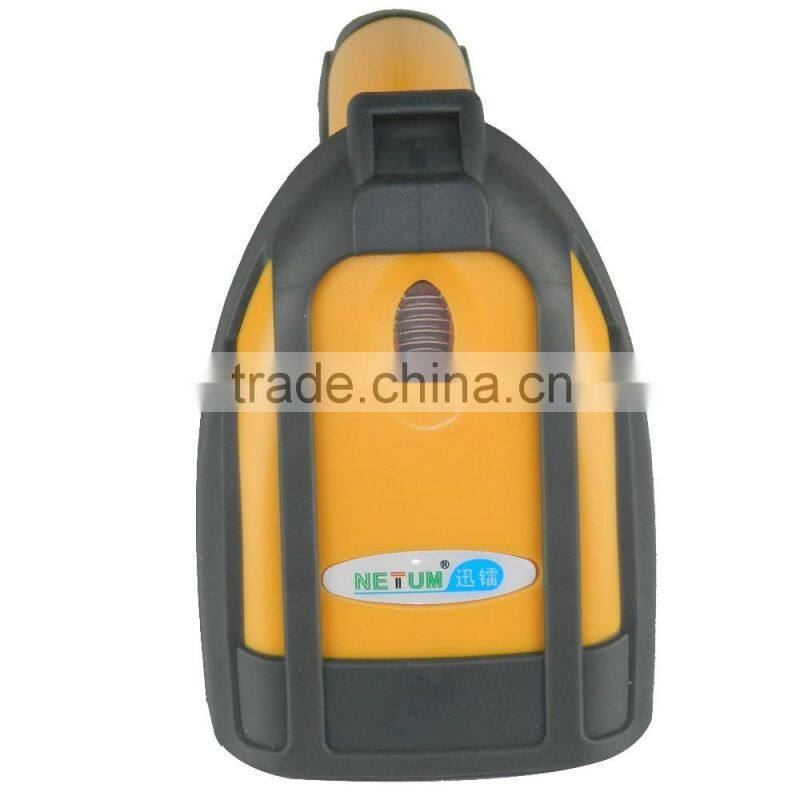

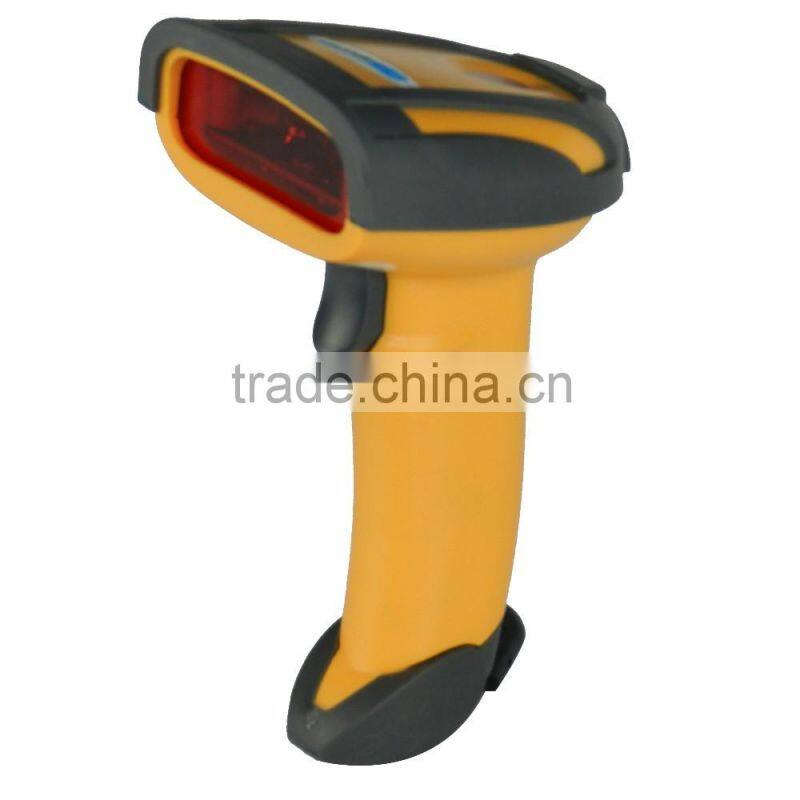

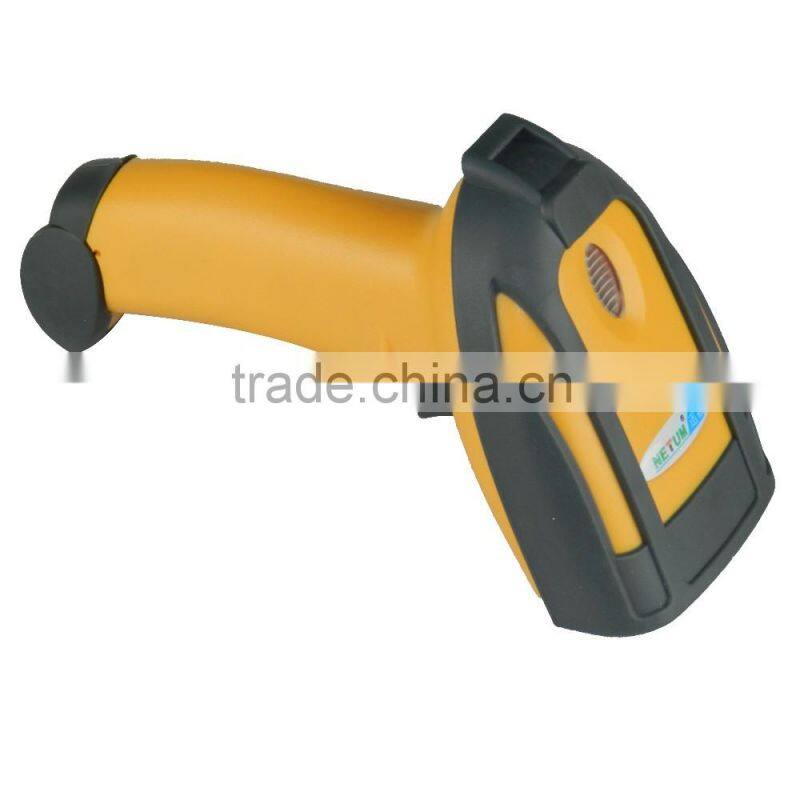

NT-2019R QR Code, 1D&2D Handheld Laser Barcode Scanner

Features

1. New design concept,make operation more comfortable.

2. Applying CMOS image technology, easy to scan.

3. Multiple dacode ability, fast to scan 1D/2D barcode and PDF417.

4. Best shape design, anti-knock and quakeproof.

5. Mulitple interface, support USB,RS232 port.

Scannning Performance Characteristics

Light Source

indicator light: 528 nm LED;light: 630 nm

Field of View

34° V x 46° H

Scan Angle

Roll 360°, Pitch ±65°, Yaw ±60°

Scan Performance

5mil(Code 39):

9.0-12.0cm

10mil (PDF417):

5.0-22.5cm

13mil(100% UPC/EAN):

3.0-30.5cm

10mil(Datamatrix):

5.2-24.0cm

Static current20mil(Code 39)

3.0-42.0cm

Symbology Decode Capability

1D

UPC/EAN with supplementals, Code 39, Code 39 Full ASCII, Trioptic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32

PDF417

PDF417, microPDF417 and composite codes

Postal

U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch

2D

MaxiCode, DataMatrix (ECC 200), QR Code

Print Contrast

>25%

Interfaces

RS-232C; USB (Standard, IBM SurePOS, Macintosh)

Imaging Characteristics

Image (Pixels)

0.35 Megapixel ,752 pixels H x 480 pixels V

Graphics Format

Bitmap, Jpeg, Tiff

Image Transfer Speed

USB 1.1: Up to 12 Megabits/s ,RS232: Up to 115 kb baud rate

Image Transfer Time

Typical USB application is 0.2 seconds with a compressed Jpeg of 100 kb

Physical Characteristics/User Environment

Voltage and Current

5±10%V DC/ 350 mA

Operating Temperature

0° - 50° C

Storage Temperature

-40° - 70° C

Humidity

5% -95%

Drop/Shock Specifications

Withstands 2000g to concrete

Safety performance

ROHS, FCC and CE Certificate
