Weifang 4100 Ricardo Generator Set With Good Quality for Sell

Name: Weifang 4100 Ricardo Generator Set With Good Quality for Sell
Brand: Ricardo
Availability: InStock

FOB Price

US$ 1,000 - 2,000 / Piece

1 Piece(Min. Order)

Port qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Ricardo
Model Number	4100	Output Type	AC Three Phase
Speed	1500/1800rpm	Frequency	50HZ
Rated Power	40KW	Rated Voltage	400/230V
Rated Current	72A

Product Description

Specifications:

1. Specification of genset
Gensets model				4100ZD
Prime power(KW)				40
Rated voltage(V)				400 / 230
Rated current(A)				72
Rated frequency(HZ)				50
Rated Speed (rpm)				1500
Power Factor				0.8(lagging)
Dimensions(mm) (L×W×H)				1900X800X1400
Genset Weight(kg)				650
2. Specification of diesel engine
Engine brand				Weifang
Engine model				R4100ZD
Air Intake System				Turbocharged
Fuel System				Direct Injection
Cycle				Four stroke
Cylinder Arrangement				4 in line
Displacement				3.61L
Bore×Stroke (mm×mm)				105x 115
Rated RPM				1500rpm
Cooling System				Forced Water Cooling Cycle
Governor Type				Mechanical
Fuel Consumption at 100% Load (g/kwh)				238
Starting Method				DC24V electrical starting
3. Specification of alternator
Alternator brand				Kaihua
Alternator model				KH224D
Excitation				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Power Factor				0.8
Protection Grade				IP21
Altitude				≤1000m
Insulation Class, Temperature Rise				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
4. Specification of control Panel
The control panel is common integrated control panel, with the display of voltage,current, frequency, water temperature, oil pressure.

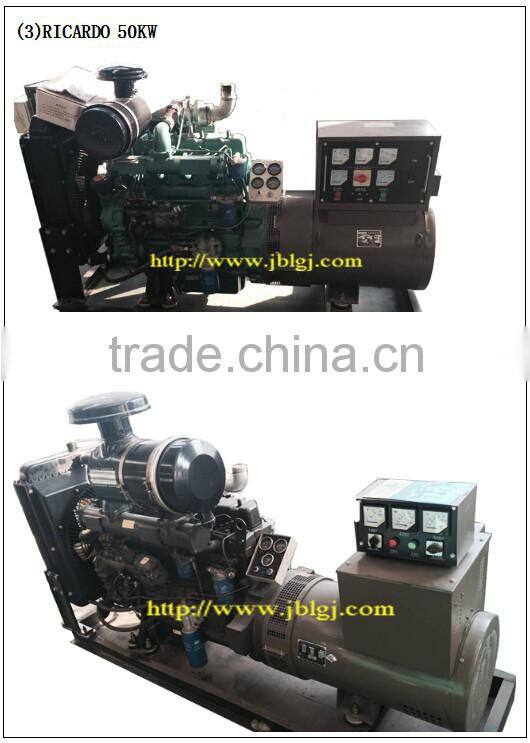

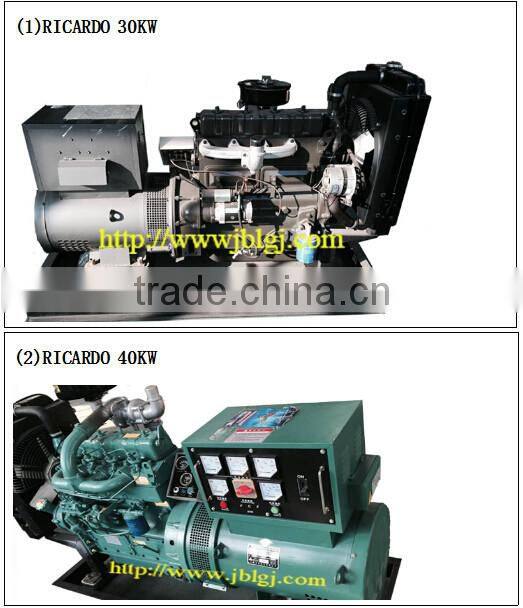

generator models and photos show

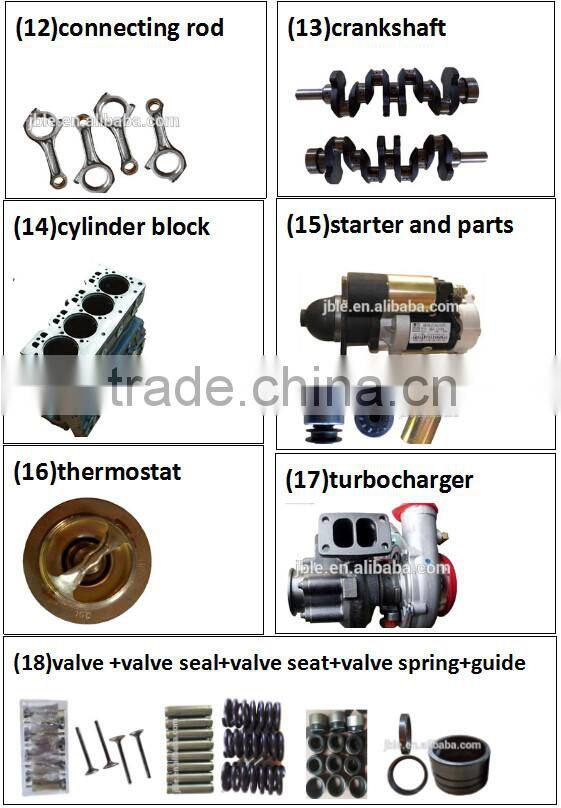

we can offer : generator Engine assy and Spare parts

1) RICARDO Engine Model

295D 2100D 495D K4100D K4100ZD R4105ZD R4110D R6105ZD1 R6105ZLD

R6105ZLD-1 R6105AZLD R6105AZLD-1 R6105IZLD R6113ZLD R6126ZLD

2) DEUTZ 226B Series Engine Model

D Series TD Series TBD Series

D226B-3D TD226B-3D TBD226B-6D

TD226B-4D TBD226B-6D5 TD226B-6D

3) YangDong Engine Model

YD480D YND485D YSD490D Y4100D

YSAD380D Y385D

4) Yangchai Engine Model

YZ485D YZ485ZLD YZ4102D

our packing --- wooden box and carton box

our warehouse

other photos

we are looking forward to hearing from you !
