Specifications
Free to Air DVB-S2 satellite receiverHD DVB-S2 Digtlal Satllite Receiver
MPEG4/H.264 full HD 1080P
HDMI/AV/YPbPr/LNB-IN

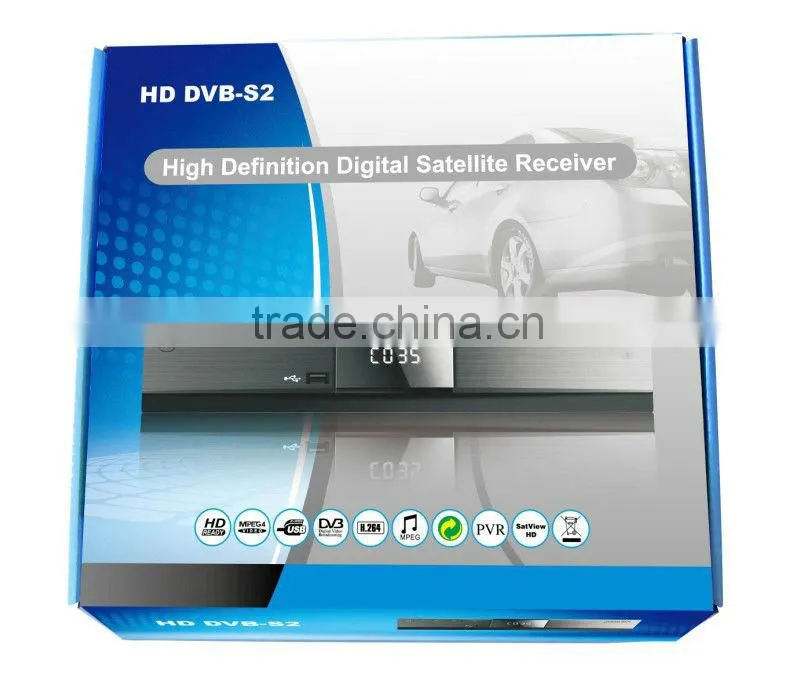

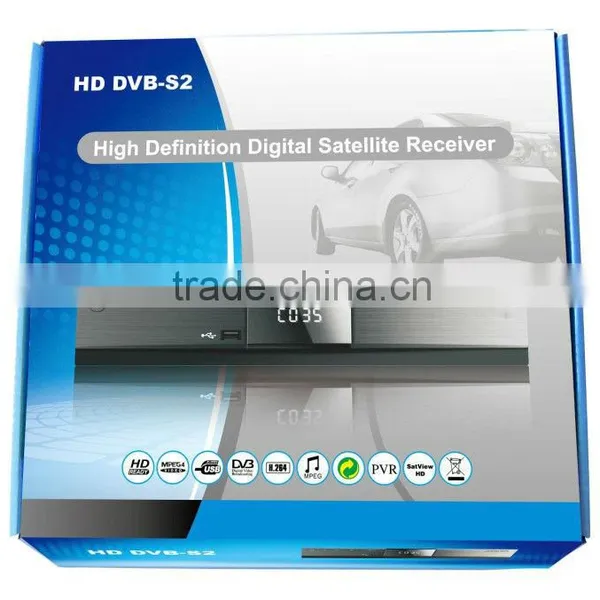

Full HD 1080P Free to Air DVB-S2 satellite receiver EPG USB PVR.
Model No.: S2-8901
Category: DVB-S/S2 Receiver > 220mm Size
Main Features:
|
Fully comply with DVB-S2, MPEG-2/4 H.264 Standard HDTV/SDTV MPEG-2 & MPEG-4 H.264 decoding Support 480i/480p/576i/576p/720p/1080i/1080P HDMI output for High Definition Support S/PDIF audio output Support teletext/subtitle/multi-language Support 7-day EPG Channel edit function including Favourite, Move, Delete, Lock,Skip,Rename Variable aspect ratio 4:3/16:94:3 Pan & Scan or Letter Box modes Support USB 2.0 software upgrade and OTA software upgrade. Support USB 2.0 PVR. MP3, AVI,DAT,MKV,MP4,MPG,VOB,WMA,BMP,JPG photo playback |
Technical specification:
|
Chipset and Memory: CPU Speed: 550MHz MSTAR Flash:32Mbit RAM: 32X16Mbit DDR2 Frequency1066 Power: Input Voltage: AC 90~250V,50Hz/60Hz Maximum Power consumption: 10W Standby power: ≤ 0.3W | |
|

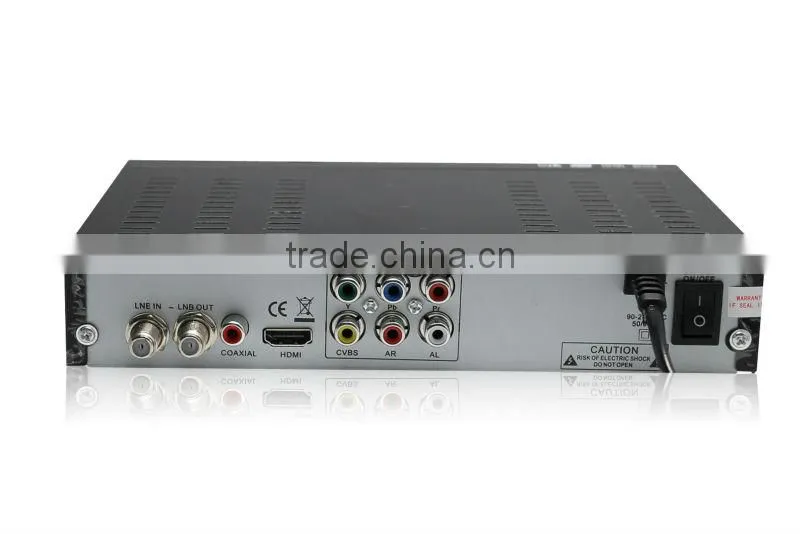

Interface: LNB-IN: x; LNB-OUT: x1 Video output: RCA x1 HDMI: x 1 Audio output: Stereo RCA: x1 Digital Audio output S/PDIF: COAXIAL x1 USB2.0 port for External USB PVR function: x1
| |
|
Tuner: Tuner: DVB-S2 Receiving Frequency: 850MHz to 2300MHz Sensitivity Level: - 10~ - 80dBm Demodulation: Compliant with: DVB-S2 Demodulation: COFDM QPSK,8PSK,16APSK,32APSK Guard interval Modes:1/4, 1/8, 1/16, 1/32 FEC Mode: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
| |
|
Video Decoding: Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC13818 MPEG-2 MP@HL,MPEG1 CC ASP@L5 HD;H.264 Support Meadia Format: H.264,MPEG1,2,4,DivX, TS,MKV,TP,AVI,M2TS,VOB,DAT,MPG,MPEG,MOV Aspect ratio: 4:3/16:9 Video format: PAL/NTSC Resolution: 480i/480p/576i/576p/720p/1080i/1080P
Audio Decoding: Compliant with: MP3,WMA,MPEG-1 / 2 layer I / II,M4P, HE-AAC,COOK | |
