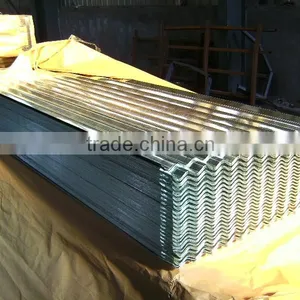

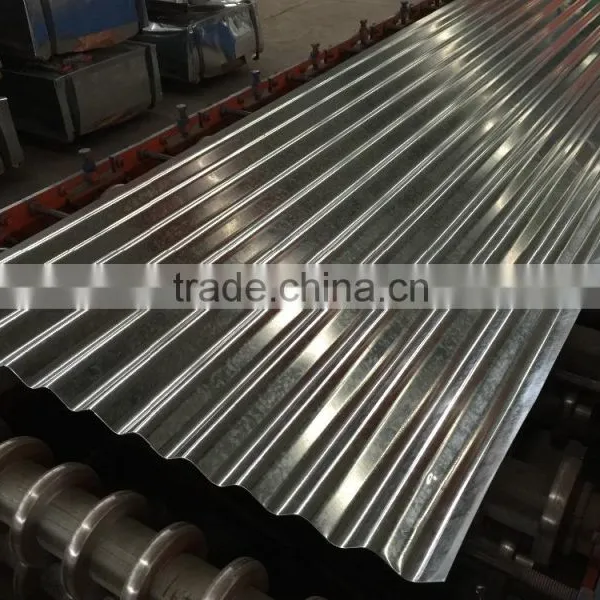

Plancha zincada ondulada
- Plancha de acero de bajo carbono, calidad comercial, Zincada, por inmersión en caliente, acanalada en forma de ondas, por deformación en frio.
- Es usado como cobertura de casas, almacenes, plantas industriales etc.
Plancha zincada ondulada de acero
- Cumple las normas ASTM A1008 CS Tipo B, ASTM A1011 CS Tipo B, SAE 1009 o norma equivalente.
Carbono (C): 0.02 - 0.15% Manganeso (Mg): 0.600% máx. Fósforo (P): 0.030% máx.
Azufre (S): 0.035% máx.
- Cumple la Norma Japonesa JIS G3302/94 SGCH Full Hard.
Dimensiones nominales
|
Espesor TCT (mm) |
Ancho efectivo (mm) |
Largo (mm) |
PESO (kg) |
Recubrimiento minimo de zinc en ambas caras (g/m2) |
0.14 |
800 |
1800 |
1.80 |
90 |
0.14 |
800 |
2400 |
2.40 |
90 |
0.14 |
800 |
3000 |
3.00 |
90 |
0.14 |
800 |
3600 |
3.60 |
90 |
0.16 |
800 |
3600 |
3.87 |
120 |
0.18 |
830 |
3600 |
4.39 |
120 |
0.20 |
830 |
1800 |
2.42 |
120 |
0.20 |
830 |
3600 |
4.84 |
120 |
0.22 |
830 |
1800 |
2.65 |
120 |
0.22 |
830 |
3600 |
5.29 |
120 |
0.25 |
830 |
3600 |
6.00 |
120 |
0.30 |
830 |
3600 |
7.20 |
120 |
Revestimeinento de zinc: minimo 90 g/m^2(total en ambas caras)
Tolerancia en el Espesor(mm): ±0.04
Tolerancia en el Ancho(mm): +7/-0
Tolerancia en la Longitud(mm): +15/-0

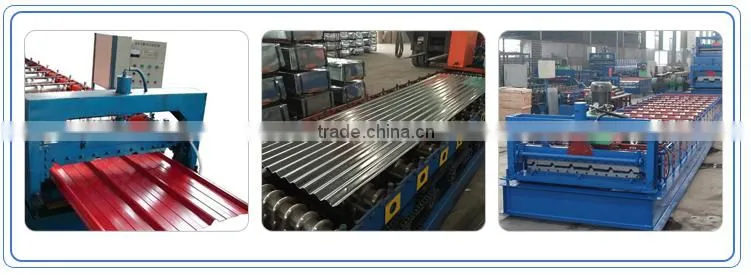

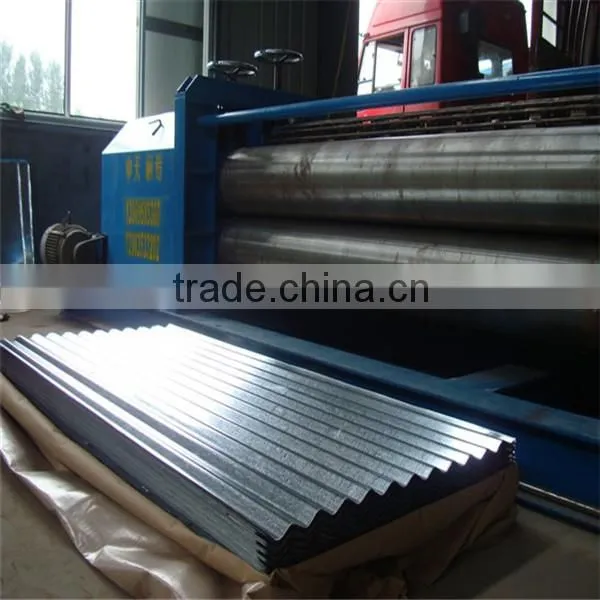

Instalaciones

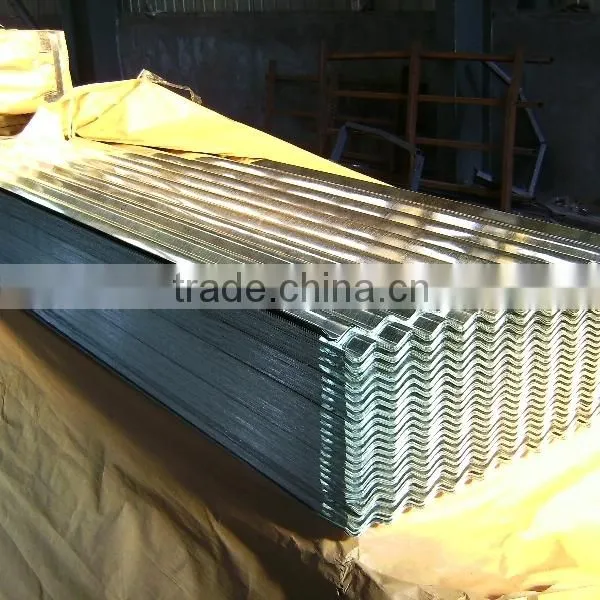

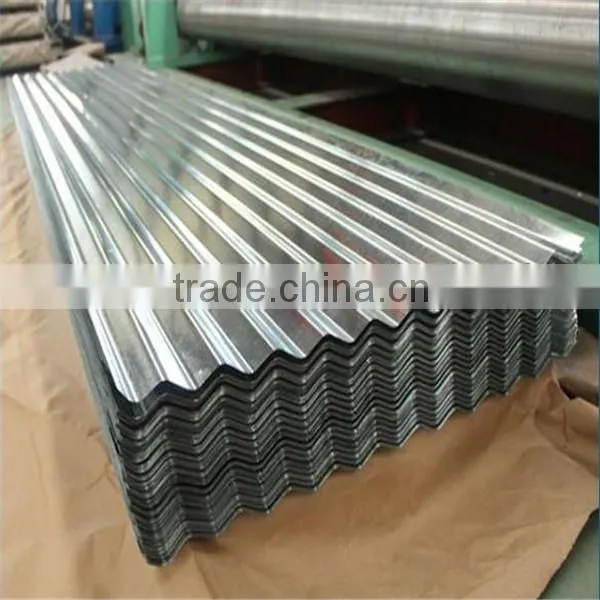

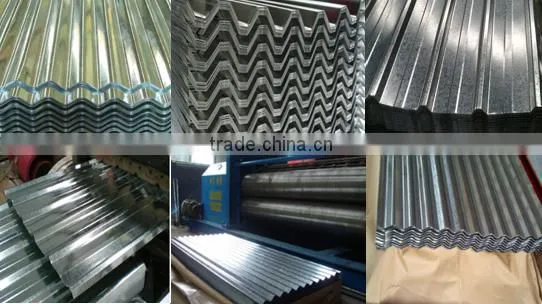

Productos foto
Certificado
