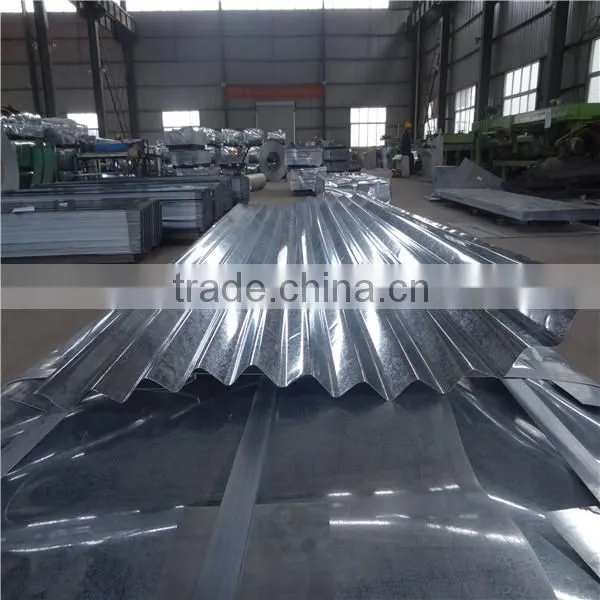

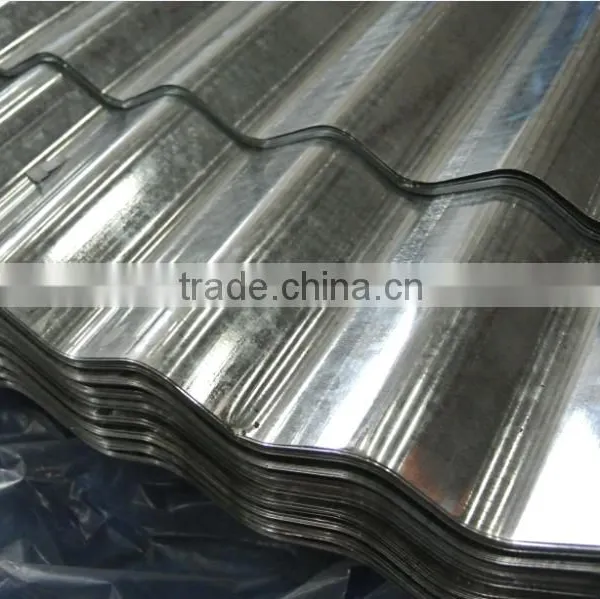

4x8 galvanized corrugated steel sheet
- Iron low carbon steel, commercial quality, galvanized, hot dip, wavelike corrugated by cold deformation.
- It is used as a hedge of houses, warehouses, industrial plants etc.
- Meets ASTM A653, ASTM A1008 CS Type B, ASTM A1011 CS Type B, SAE 1009 or equivalent standard.
C: 0.02 - 0.15% Mn: 0.600% max. P: 0.030% max. S: 0.035% max.
Normal sizes
|
Thickness (mm) |
Width (mm) |
Length (mm) |
PESO (kg) |
Zinc coating total on both side (g/m2) |
0.14 |
800 |
1800 |
1.80 |
90 |
0.14 |
800 |
2400 |
2.40 |
90 |
0.14 |
800 |
3000 |
3.00 |
90 |
0.14 |
800 |
3600 |
3.60 |
90 |
0.16 |
800 |
3600 |
3.87 |
120 |
0.18 |
830 |
3600 |
4.39 |
120 |
0.20 |
830 |
1800 |
2.42 |
120 |
0.20 |
830 |
3600 |
4.84 |
120 |
0.22 |
830 |
1800 |
2.65 |
120 |
0.22 |
830 |
3600 |
5.29 |
120 |
0.25 |
830 |
3600 |
6.00 |
120 |
0.30 |
830 |
3600 |
7.20 |
120 |
Zinc coating: Minimum 90 g / m 2 (total on both sides)
Tolerance of thickness (mm): ± 0.04
Tolerance of width (mm): + 7 / -0
Tolerance of length (mm): + 15 / -0
