Help CenterFactory Direct Price hd 1080p Dvb t2 s2 Digital Combo Decoder Auto Roll Powervu
Related Products
-
OEM/ODM DVB T2 S2 Digital Combo Receiver Auto Roll Powervu Cccam Biss Combo ReceiverUS$ 1 - 15MOQ: 1000 Pieces -
Ghana Best Hot Sale Model DVBT2+S2 Combo Decoder Biss Iks Cccam Auto Roll Powervu Q-boxUS$ 1 - 15MOQ: 1000 Pieces
-
Ghana Africa hd Dvb t2 s2 Strong Digital Combo Decoder Auto Roll Powervu Biss Cccam IksUS$ 1 - 15MOQ: 1000 Pieces
-
Most Popular in Ghana West Africa DVBT2+S2 Combo Decoder Auto Roll Powervu Biss Tv3 CccamUS$ 1 - 15MOQ: 1000 Pieces
-
West Africa HD 1080P DVB T2 S2 Combo Digital Decoder Wifi Powervu Cccam Set Top BoxUS$ 1 - 15MOQ: 1000 Pieces
1 Year Manufacturer Warranty
Compatible with all TVs
It's Also a Media Player
Best selling model 13 year's OEM experience
European standard High Definition DVB-T2 S2 Combo Digital Receiver
1. What are my payment options?
For samples, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.
2. How long will it take to ship my order?
As long as there is stock available, Dongzhou usually ships items within 3 work days for samples and within one to two weeks for formal order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches our bank account. If we aretemporarily out of stock, we will do our best to inform you of the estimated lead time.
3. What does your warranty cover?
Dongzhou’s product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
4. Who will pay the freight for repairing items?
Both parties will share half the freight: the buyer will take the freight of sending it back to chelong,while chelong will cover that of sending it back to the buyer. And chelong suggests to sending it back with the next mass production items.
If you would like to know more about our company, please contact us ASAP. We have professional sales staff could offer you the support at any time you need.
Competitive HDMI Digital T2+S2 COMBO Receiver with Montage CT6001 chipset, support PVR, 7-day EPG.
| Model | DVB-T2+S2 COMBO | |||
| Hardware | ||||
| CPU | Montage CT6001 (128 pin) MIPS 34Kf@600MHz | |||
| Memory | 32X16Mbit DDR2 Frequency1066 | |||
| Flash | 4M bytes | |||
| Demodulator Type | Montage DM6001 Chip Set | |||
| S2+TUNER | Montage TS2022 Chip Set | |||
| T2+TUNER | MaxLinear MXL 608 | |||

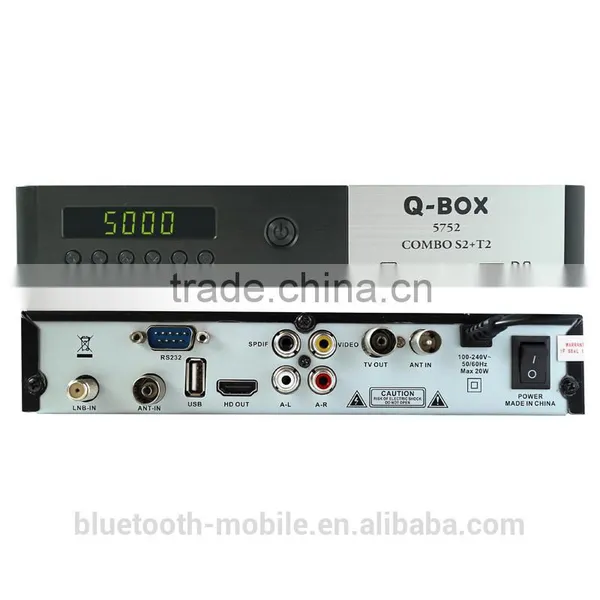

| Front Panel | USB 2.0 Embedded One Host, | |||
| 4-digit LED display on front panel | ||||
| red LED Standby,green LED Lock | ||||
| Panel KEY, POWER, CH+ ,CH- | ||||

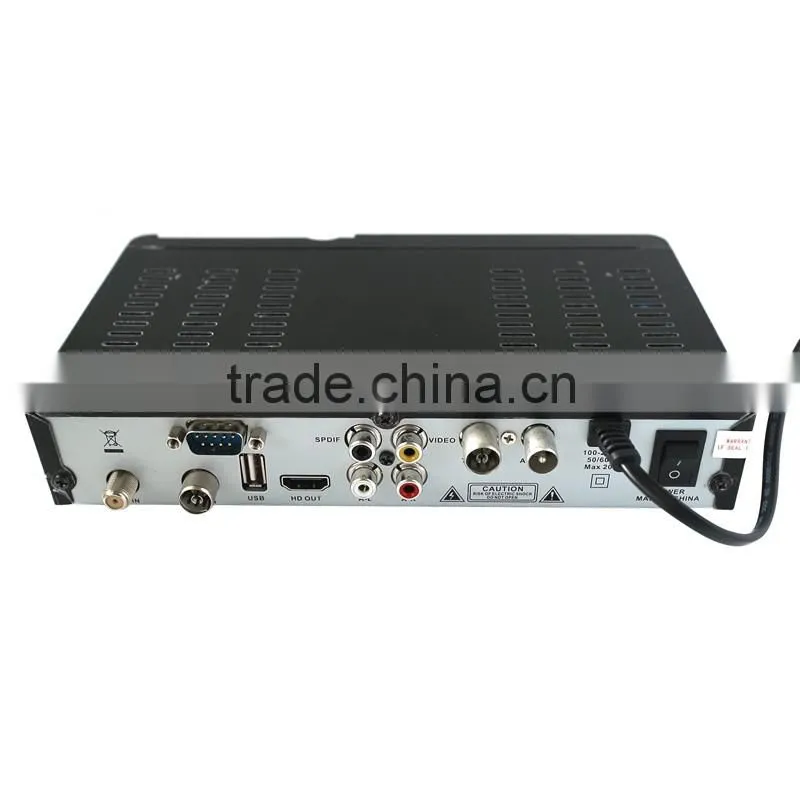

| Rear Panel | S2 LNB IN input connector | IEC60169-2 | ||
| T2 ANT input connector | IEC-162-2(IEC Female) | |||
| HDMI V1.3 | ||||
| RCA CVBS AL AR Connector x1 | ||||
| Ypbpr RCAx1 | ||||
| Coaxial x1 | ||||
| Power AC100~240V 50Hz/60Hz | ||||
| DVB-T2 Demodulation | ||||
| DVB-T2 Demodulation | Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744) | |||
| Input RF Frequency 48~866MHZ | ||||
| Bandwidth6MHz,7MHz,8MHz | ||||
| Constellation QPSK 16-QAM 64-QAM and 256-QAM | ||||
| FEC 1/2, 3/5,2/3, 3/4,4/5,5/6 | ||||
| Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4 | ||||
| FFT Mode 2K/ 8K/32K | ||||
| Support Single and multiple PLPS | ||||
| Input level -83~ -5dBm | ||||
| DVB-S2 Channel Decoder | ||||
| DVB-S2 Channel Decoder | Frequency Range | 950MHz-2150MHz | ||
| Sensitivity Level | - 10~ - 81dBm | |||
| Mode IFFT | 2k,8k | |||
| FEC Mode | 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |||
| Guard intervals | 1/4,1/8,1/16,1/32 | |||
| Constellation | QPSK,8PSK,16APSK | |||
| Neighboring channels immunity and Protection |
According to ETSI TR 101 190 V1.2.1 | |||
| Active Ant Power | 13/18V DC @ 500mA MAX,Overload Protection | |||
| Sortware Features | ||||
| •Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard | ||||
| •Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard | ||||
| •Support BISS KEY | ||||
| •Supports single / multiple or blind search satellite search | ||||
| •DiSEqC 1.0 / 1.1 / 1.2 | ||||
| •The maximum speed of the traffic flow of at least 50 Mbit / sec | ||||
| •Support 3D interface | ||||
| •Sleep Timer | ||||
| •Support teletext/subtitle/muti-language | ||||
| •Powerful and highly effective 7-day EPG function | ||||
| •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
| •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||
| •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
| Decoder | ||||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) |
|||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding |
|||
| Powerful Multimedia Features | ||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) |
|||
| Photo Codec | JPEG, BMP, PNG |
|||
| License | ||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | ||||
| Accessories | ||||
| Accessories | gift box | |||
| AV cable optional | ||||
| HDMI cable optional | ||||
| IR remote control | ||||
| User Manual | ||||
| Loading | ||||
| Loading | machine size | 168*95*37mmmm | Packaged size | |
| machine weight | Packaged weight | |||
| Loading for 40GP | Loading for 20HQ | |||
Model No.: T2+S2-8902
Packaging Detail:
Carton size: 52.5x45.5x25.5cm.
20pcs /carton.
Gross weight: 16kg;
Loading:
Delivery Detail:
3-15 working days after payment.
T/T, Western Union, Paypal , L/C, MoneyGram

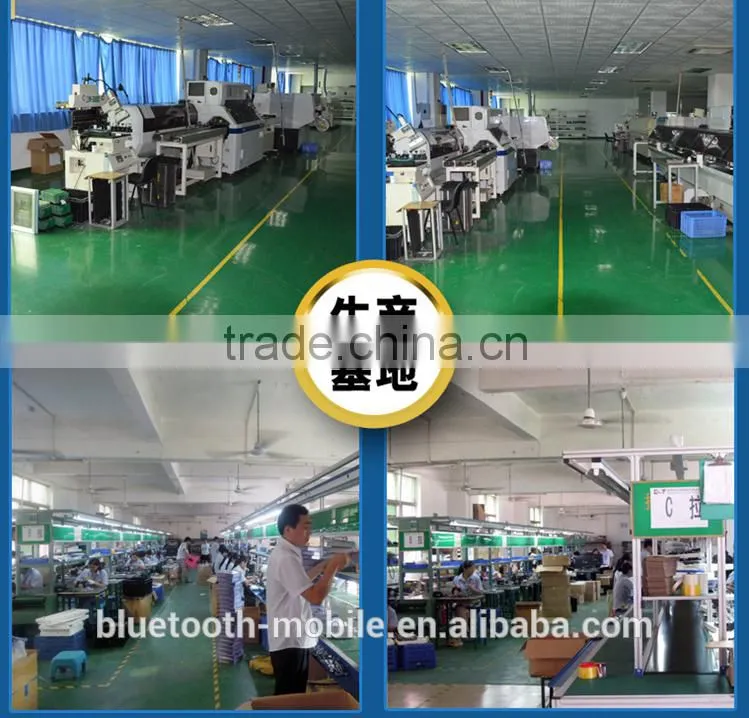

Shenzhen Baoan Dalang Dongzhou Electronic Factory
1. Established in 2003, rich experience in designing and manufacturing.
2. QC stuff check products on production-line regularly, double test before packing.
3. Provide excellent after-sales service, 1 year warranty.
