Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > MINI HD MPEG4 DVB-T STB Receiver

MINI HD MPEG4 DVB-T STB Receiver

US$ 13 - 15 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

DVBT-8608

Contact Supplier Request Quote Chat Now

Shenzhen Baoan District Dalang Dongzhou Electronics Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number DVBT-8608

1Year Manufacturer Warranty

compatible with all TVs

It's Also a Media Player

Specifications

Best selling model 10 year's OEM experience digital DVB-T/

T2 set top box for Russia Ukrain market with Mstar 7816 HDMI

Features
1. Fully DVB-T2/T, MEPG-2/4 H.264 HD/SD compliant
2. Compatible with 576i/576p/720p/1080i/1080p/video formats
3. Auto & manually scan all available TV and Radio channels
4. Aspect ratio 16:9 and 4:3
5. HDMI, Scart Output
6. Multi-language Subtitle output supported ²
7. Powerful and highly effective 7-Day EPG function.
8.Supports Teletext
9. Parental Lock
10. PVR ready function via USB 2.0
11. Multimedia playback via USB 2.0
12.Stores up to 1000 programs and keeps in memory while power-off.

SPECIFICATION	DESCRIPTION

Basic Features
Operation Temperature	0~40°C
Input Voltage	AC100~240V, 50/60Hz
Power Consumption
OSD language	EnglishFrenchGermanPortugueseSWEDISHSpanishItalianCZECHDANISH
MPLP	YES
Tuner
IF Input frequency	VHF :174MHz~230MHz/UHF :474MHz~866MHz,
Bandwith	6/7/8MHZ
Input Impedance	75Ω
Input Level	-80 ~ -10dBm
Signal Input	IEC-Type Female
Chipset
Decoder	MSD7816/7818
Demodulator	MSB1230
Tuner	R828
Flash	32M
DDR2	512M
Mpeg transport stream & A/V decoding
Video Standard	MPEG-4 AVC/ H.264 HP@L4
SCART Video Model	CVBS/RGB
Aspect Ratio	4:3, 16:9
Video Resolution	480i/480P/576i , 576p, 720p and 1080i,1080P
Audio Standard	ISO/IEC 14.496-3,AC3,AAC, AAC+
Audio Mode	Mono, Dual-channel, Stereo
Multimedia Format
picture	JPEG,BMP,PNG
Audio	MP3,WMA,AAC
VIDEO	DivX,MPEG1,MPEG2,MPEG4,AVI,MOV,DAT
Front Panel
Display	LED Display
USB	firmware upgrade PVR & Multimedia playback
CHANNEL DECODING
Standard	DVB-T2
Demodulation	QPSK, 16QAM, 64QAM,256QAM,
FEC	1/2,3/5,2/3,3/4,4/5,5/6
Guard	1/4,19/256,1/8,19/128,1/16,1/32,1/128
Mode	1K,2K,4k,8k,16k,32k
REAR PANEL OUTPUT
HDMI (V1.3)	480i,480P,576i ,576p,720p,1080i,1080p
Loop Through Output	IEC-type, connector, signle tuner
TV SCART	CVBS/RGB
ypbpr	RCA*3(optional)

Packet Content:

Remote control without battery

User manual (Multilanguage optional: Italian; English; Spanish; French)

Power Adapter

External IR

USB Cable

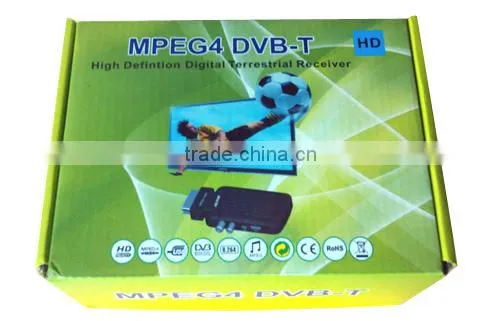

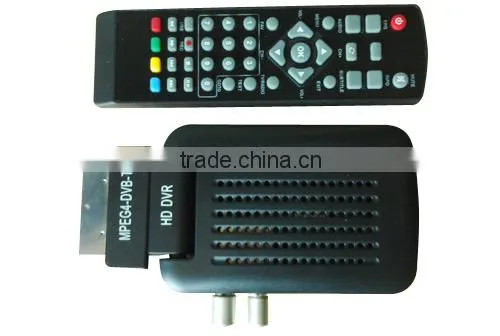

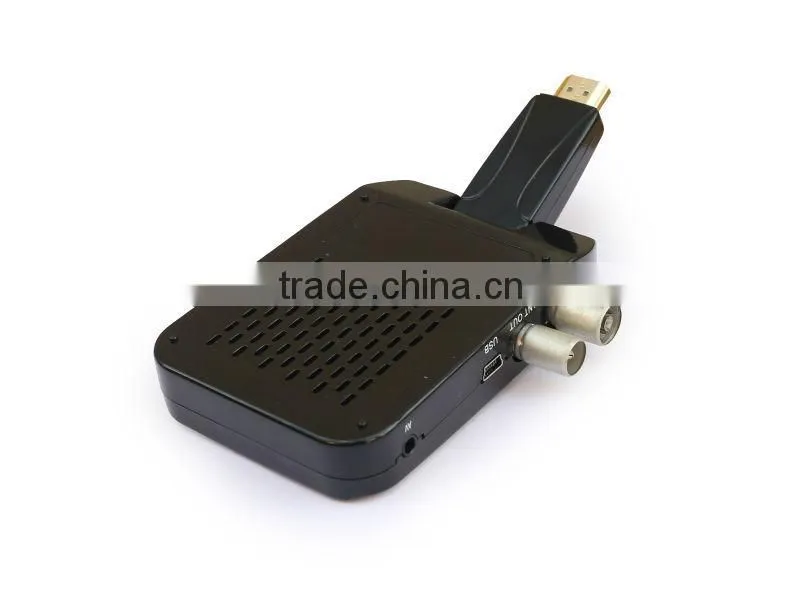

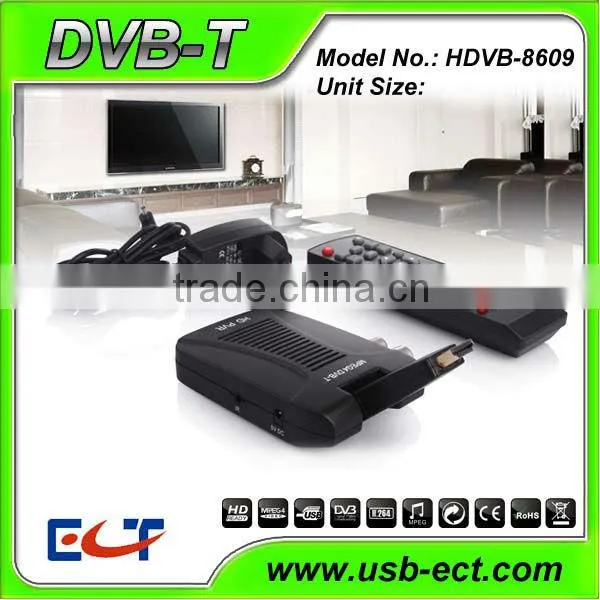

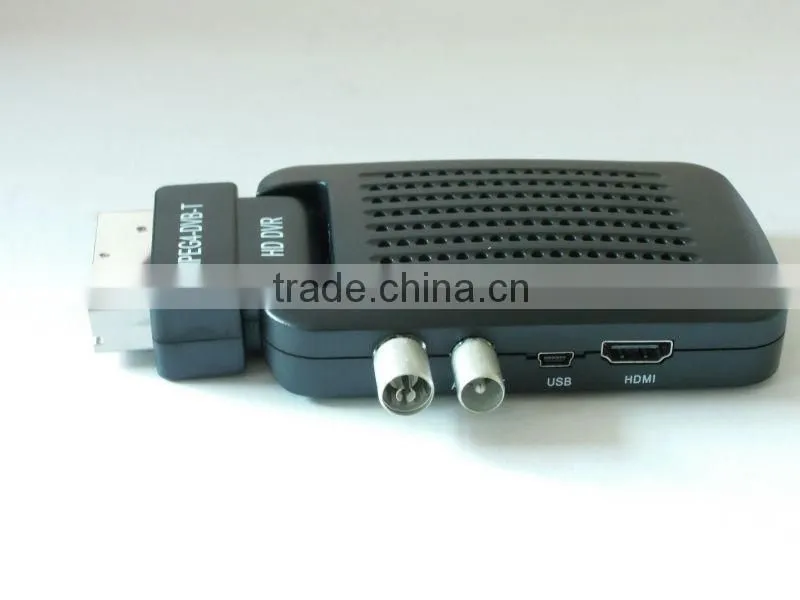

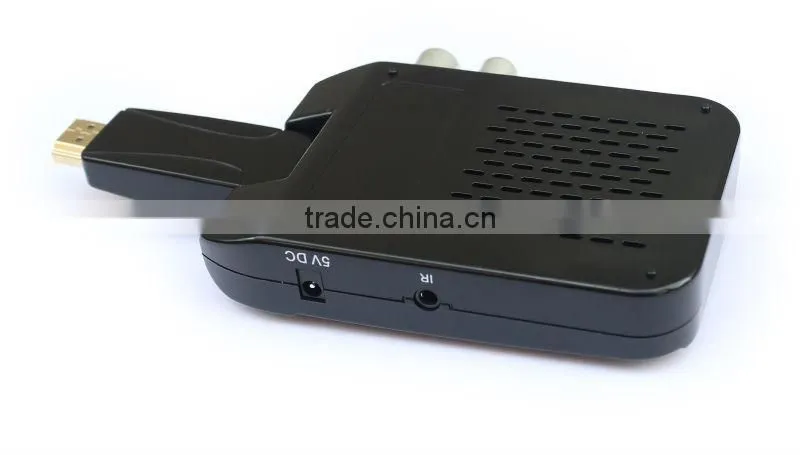

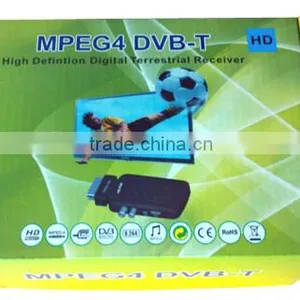

Product picture

Shenzhen Baoan Dalang Dongzhou Electronic Factory

1.Established in 1998, rich experience in designing and manufacturing.

2. QC stuff check products on production-line regularly,test one by one before packing.

3. Provide excellent after-sales service ,1 year warranty for our products.
