Specifications
Suspension magnet/Overband magnetManual cleaning tramp iron
Easy to install,no power and maintenance
Manufacturer
----Introduce:

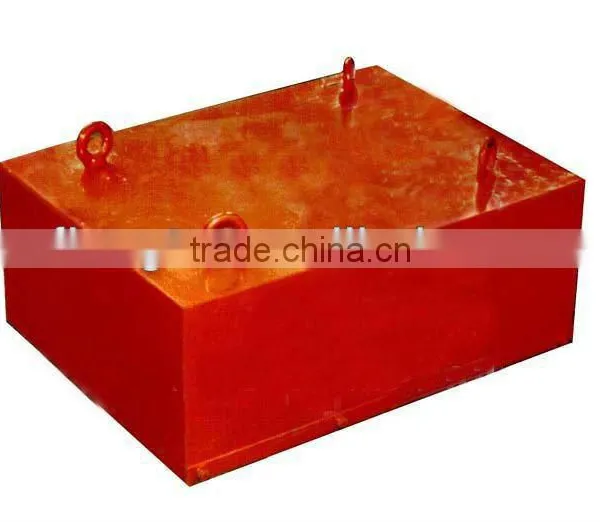

Suspension magnet/Overband magnet simply suspends above the conveyor belt or the head pulley and lifts tramp metal from the product burden as it passes through the powerful magnetic field.Cleaning is achieved by manually removing the collected tramp metal from the face of the magnet.
Available in permanent and electromagnetic designs.
Suspension magnet/Overband magnet is suitable for removing non-magnetic material on the belt conveyer, vibration conveyer, electric-vibrating feeder and feeder groove.
----Industries:
Wide applications in mining, coal/power generation plant and also in chemical/ food/plastic/ ceramics industries.
----Selection :
Selection this type magnetic separator depends on the feed material, size and feed depth.and also depends on width and speed of your belt conveyor.
----Overall drawing:
----Technical specifications:
Model No. |
Belt width |
Suspension height |
Materials Thickness (≤mm) |
Weight (kg) |
Belt speed (≤m/s) |
Overall dimension (mm) |
||
A |
B |
C |
||||||
RCYB-4 |
400 |
125 |
60 |
115 |
4.5 |
400 |
300 |
230 |
RCYB-4-1 |
400 |
75 |
30 |
65 |
400 |
250 |
140 |
|
RCYB-5 |
500 |
150 |
90 |
206 |
500 |
350 |
260 |
|
RCYB-5-1 |
500 |
100 |
50 |
96 |
500 |
260 |
160 |
|
RCYB-6 |
600 |
175 |
120 |
295 |
600 |
450 |
280 |
|
RCYB-6-1 |
600 |
130 |
60 |
158 |
600 |
350 |
180 |
|
RCYB-6.5 |
650 |
200 |
150 |
450 |
650 |
600 |
300 |
|
RCYB-6.5-1 |
650 |
200 |
150 |
450 |
650 |
400 |
300 |
|
RCYB-8 |
800 |
250 |
200 |
680 |
950 |
950 |
380 |
|
RCYB-8-1 |
800 |
200 |
150 |
550 |
800 |
600 |
300 |
|
RCYB-10 |
1000 |
300 |
250 |
1180 |
1100 |
1000 |
380 |
|
RCYB-12 |
1200 |
350 |
300 |
1670 |
1300 |
1340 |
420 |
|
RCYB-14 |
1400 |
400 |
350 |
2350 |
1500 |
1500 |
420 |
|
RCYB-16 |
1600 |
450 |
400 |
2850 |
1750 |
1750 |
460 |
|
----Working picture:
Catalogue(section): | |
Conveyor belt metal detector |
Self cleaning permanent magnetic separator |
Air cooling self cleaning electromagnetic separator |
Air cooling electromagnetic separator |
Wind cooling self cleaning electromagnetic separator |
Wind cooling electromagnetic separator |
Oil cooling self cleaning electromagnetic separator |
Oil cooling electromagnetic separator |
Manual cleaning permanent magnetic separator |
Electromagnetic vibrate feeder |
Magnetic roller |
Magnetic ferrous traps |
