Specifications
magnet trap for liquid linemanual cleaning tramp iron
install:connect liquid material pipeline
manufacturer
----Introduce:

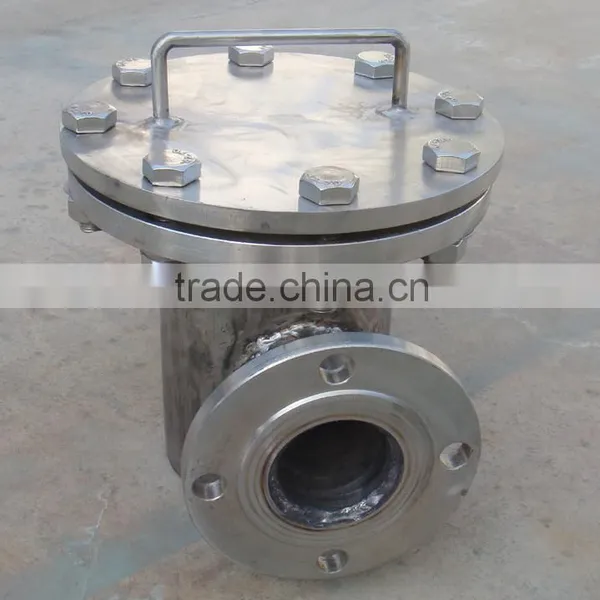

Magnet trap for Liquid line can enhance the purity grade of the raw material and remove the ferrous impurities from the liquid slurry raw material.
It is the ideal liquid wet type permanent magnetic separator.
----Applications:
Magnet trap for Liquid line are suitable for liquid filtration and separation in pipe line. The magnetic tubes within magnet trap for Liquid line catch the ferrous impurities contamination in a product and it flows through the processing line thereby protecting product purity and preventing abrasive wear, prevents pumps from jamming, reduced damage and maintenance to mixers, refiners, filters, pumps etc. end assures a product free of iron contamination.
----How to clean the ferrous impurities:
Magnet trap for Liquid line can directly connect with the liquid material pipeline.When ferrous impurity need to clean, open the outlet impurity ,draw the magnetic tubes and get rid of it. Then replace the magnetic tubes and close the outlet impurity.
----Technical specifications:
Model |
Application |
diameterφ(mm) |
Weight(kg) |
A |
B |
C |
H |
N |
M |
φ1 |
φ2 |
LYSC-50 |
Liquid |
50 |
19 |
115 |
85 |
250 |
270 |
8 |
14 |
125 |
150 |
LYSC-65 |
65 |
27.3 |
120 |
105 |
360 |
380 |
8 |
14 |
165 |
192 |
|
LYSC-80 |
80 |
30.5 |
130 |
155 |
360 |
380 |
8 |
18 |
210 |
240 |
|
LYSC-100 |
100 |
45 |
130 |
180 |
380 |
405 |
8 |
18 |
240 |
270 |
|
LYSC-125 |
125 |
56.5 |
145 |
190 |
420 |
430 |
8 |
18 |
270 |
300 |
|
LYSC-150 |
150 |
72 |
180 |
190 |
450 |
465 |
8 |
18 |
300 |
330 |
|
LYSC-200 |
200 |
120 |
235 |
250 |
500 |
520 |
8 |
18 |
360 |
390 |
|
LYSC-250 |
250 |
19 |
265 |
280 |
530 |
640 |
12 |
18 |
395 |
425 |
|
LYSC-300 |
300 |
270 |
285 |
300 |
600 |
680 |
12 |
23 |
450 |
485 |
|
LYSC-350 |
350 |
350 |
325 |
340 |
680 |
750 |
12 |
23 |
500 |
540 |
|
LYSC-400 |
400 |
420 |
340 |
355 |
750 |
800 |
16 |
23 |
550 |
600 |
----Equipment detail:
----Package:
